SQ-202X-SS: Amplified 0-2.5 Volt Original Quantum Sensor

Updated:2023-01-11

Brand: Apogee
Model: SQ-202X-SS
Description: The SQ-202X-SS is an amplified original quantum sensor with a 0 to 2.5 V output. The sensor features a rugged, self-cleaning sensor housing design, and high-quality cable terminating in pre-tinned pig
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Overview of SQ-202X-SS: Amplified 0-2.5 Volt Original Quantum Sensor：

User's Manual

The SQ-202X-SS is an amplified original quantum sensor with a 0 to 2.5 V output. The sensor features a rugged, self-cleaning sensor housing design, and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. Typical applications include PPFD (Photosynthetic Photon Flux Density) measurement over plant canopies in outdoor environments, greenhouses, and growth chambers, and reflected or under-canopy (transmitted) PPFD measurements in the same environments. Quantum sensors are also used to measure PAR (Photosynthetically Active Radiation)/PPFD in aquatic environments, including salt water aquariums where corals are grown. Sensor includes IP68 marine-grade stainless-steel cable connector to simplify sensor removal and replacement for maintenance and recalibration.

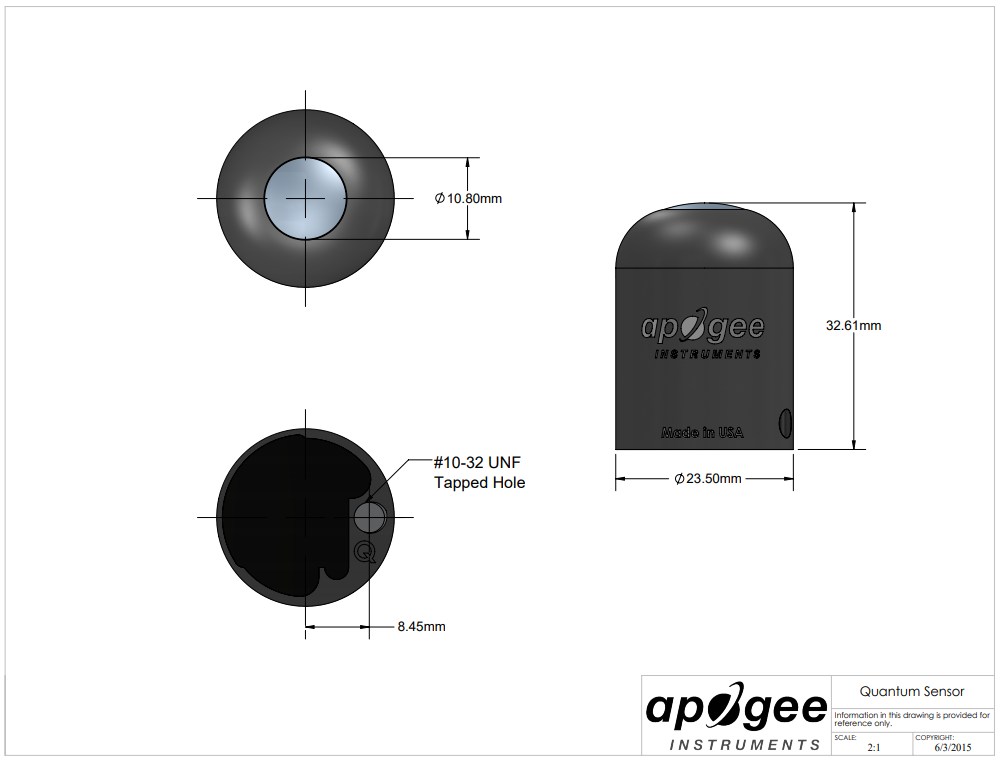

SQ-202X-SS Sensor Drawing：

Specifications of SQ-202X-SS:

Power Supply	5 to 24 V DC; nominal current draw 300 µA
Sensitivity	0.6 mV per µmol mˉ² sˉ¹
Calibration Factor	1.6 µmol mˉ² sˉ¹ / mV
Calibration Uncertainty	± 5 %
Calibrated Output Range	0 to 2.5 V
Measurement Repeatability	Less than 0.5 %
Non-stability (Long-term Drift)	Less than 2 % per year
Non-linearity	Less than 1 % (up to 4000 µmol mˉ² sˉ¹)
Response Time	Less than 1 ms
Field of View	180˚
Spectral Range	370 nm to 650 nm (wavelengths where response is greater than 50 % of maximum)
Directional (Cosine) Response	± 5 % at 75˚ zenith angle
Temperature Response	Less than 0.5 % from -20 to 50 C
Operating Environment	-20 to 60 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m
Dimensions	30.5 mm diameter, 37 mm height
Mass (with 5 m of cable)	140 g
Cable	5 m of shielded, twisted-pair wire. TPR jacket (high water resistance, high UV stability, flexibility in cold conditions). Pigtail lead wires
Warranty	4 years against defects in materials and workmanship
Manufactured	Made in the USA
