SQ-422X-SS Modbus Digital Output Quantum Sensor

Updated:2023-01-11

Views:953

  • Brand: Apogee
  • Model: SQ-422X-SS
  • Description: The SQ-422X-SS sensor outputs a digital signal using Modbus RTU protocol over RS-232 and RS-485. The sensor is calibrated for sunlight and has a command that automatically applies the immersion effect
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Overview of SQ-422X-SS Modbus Digital Output Quantum Sensor:

User's Manual

The SQ-422X-SS sensor outputs a digital signal using Modbus RTU protocol over RS-232 and RS-485. The sensor is calibrated for sunlight and has a command that automatically applies the immersion effect correction factor for underwater measurements. The sensor features a rugged, self-cleaning sensor housing design, and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. Typical applications include PPFD (Photosynthetic Photon Flux Density) measurement over plant canopies in outdoor environments, greenhouses, and growth chambers, and reflected or under-canopy (transmitted) PPFD measurements in the same environments. Quantum sensors are also used to measure PAR (Photosynthetically Active Radiation)/PPFD in aquatic environments, including salt water aquariums where corals are grown.

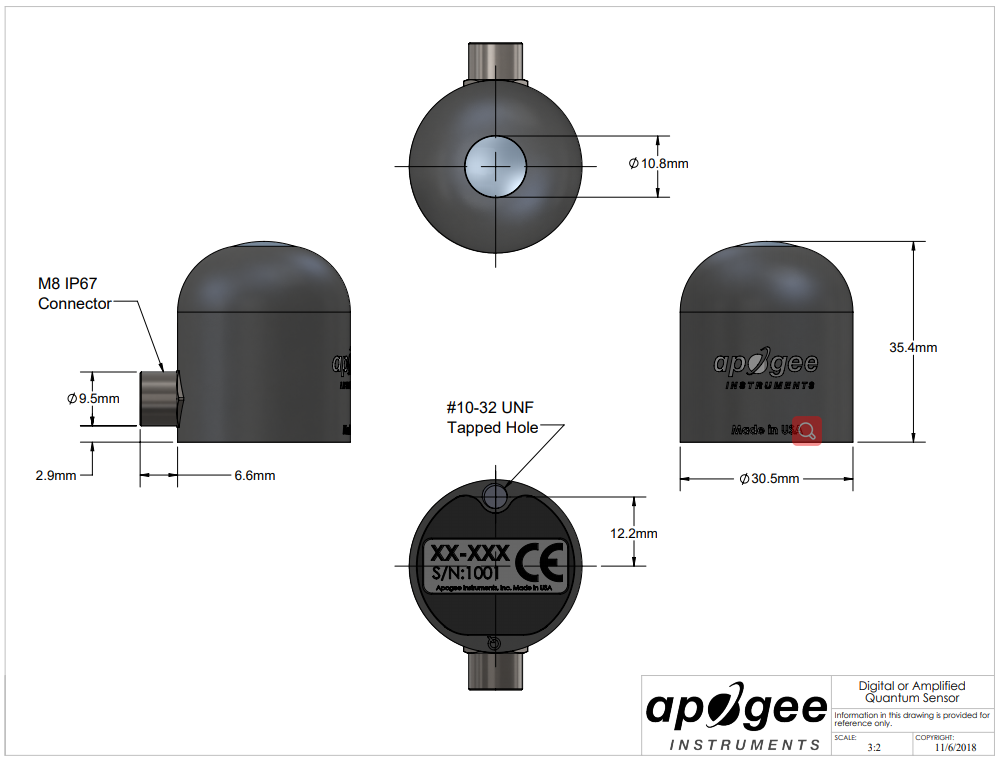

SQ-422X-SS Sensor Drawing:

Specifications of SQ-422X-SS:

Input Voltage Requirement 5.5 to 24 V DC
Average Max Current Draw RS-232 quiescent 37 mA; RS-485 quiescent 37 mA, active 42 mA
Calibration Uncertainty ± 5 %
Measurement Repeatability Less than 1 %
Long-term Drift Less than 2 % per year
Non-linearity Less than 1 % (up to 2500 µmol mˉ² sˉ ¹)
Field of View 180˚
Spectral Range 370 to 650 nm ( wavelengths where response is greater than 50 % fo maximum
Directional (cosine) Response ± 5 % at 75˚ zenith angle
Temperature Response Less than 0.5 % from -20 to 50 C
Operating Environment -20 to 60 C; 0 to 100 % relative humidity; can be submerged in water up to depths of 30 m
Dimensions 30.5 mm diameter, 37 mm height
Mass (with 5 m of cable) 140 g
Cable 5 m of two conductor, shielded, twisted-pair wire, additional cable available in multiples of 5 m; TPR jacket (high water resistance, high UV stability, flexibility in cold conditions); pigtail lead wires
Warranty 4 years against defects in materials and workmanship
Manufactured Made in the USA
