ST-110: Thermistor Temperature Sensor

Updated:2023-06-02

Brand:APOGEE
Model: ST-110
Description: The ST-110 is a high accuracy thermistor (± 0.1 C from -40 to 60 C) designed to minimize solar load and thermal conduction. White heat shrink is used on the cable behind the thermistor to reduce solar
Data download

Feedback
WeChat

QQ

Online Service

Product Details

ST-110: Thermistor Temperature Sensor Introduction：

user's manual

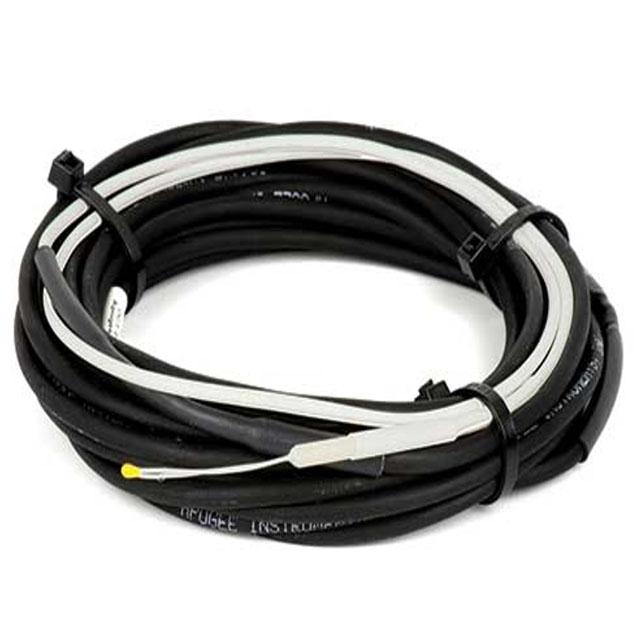

The ST-110 is a high accuracy thermistor (± 0.1 C from -40 to 60 C) designed to minimize solar load and thermal conduction. White heat shrink is used on the cable behind the thermistor to reduce solar load. Constantan wire is used to minimize thermal conduction down the wire towards the thermistor. The ST-110 is designed to make air temperature measurements in Apogee's TS-100 Aspirated Radiation Shield and can be used in static, multi-plate shields from other companies as well.

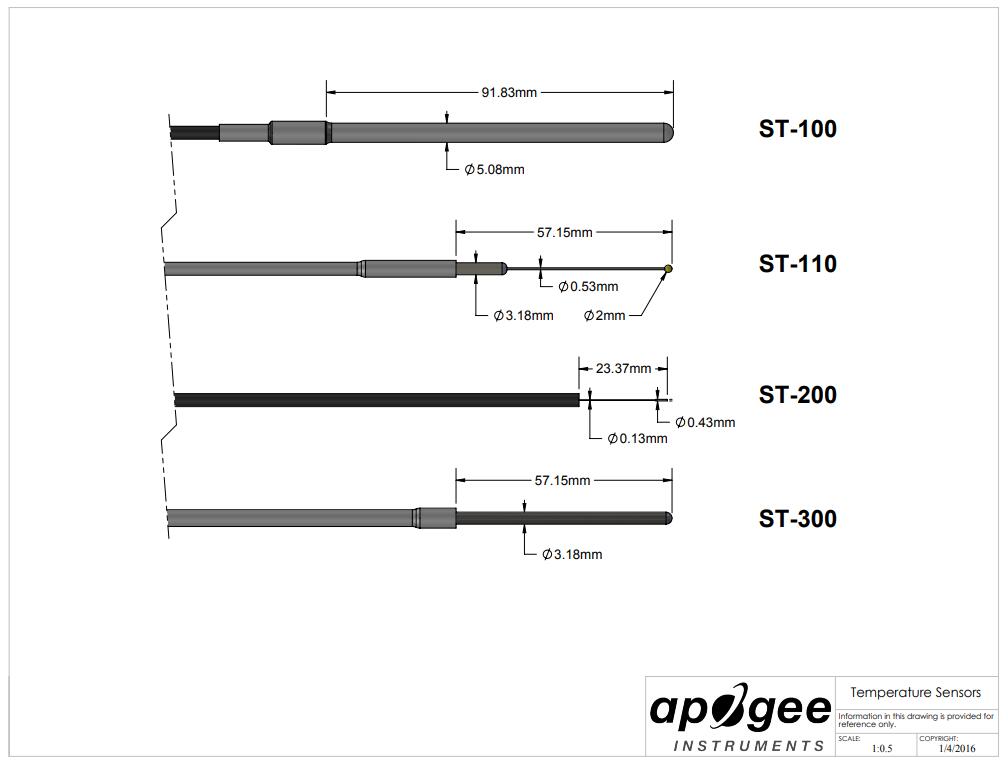

ST-110 Technical Drawing：

ST-110 Specifications:

Measurement Range	-50 to 70 C
Measurement Uncertainty	0.1 C (from 0 to 70 C), 0.15 C (from -40 to 0 C)
Measurement Repeatability	Less than 0.01 C
Non-stability (Long-term Drift)	Less than 0.02 C per year (when used in non-condensing environments where the annual average temperature is less than 30 C; continuously high temperatures or continuously humid environments increase drift rate)
Time Constant ( time for detector signal to reach 63 % following a step change)	7 s
Self-Heating:	Less than 0.01 C (typical, assuming pulsed excitation of 2.5 V DC),; 0.08 C at 5 C (maximum, assuming continuous input excitation of 2.5 V DC)
Operating Environment	-50 to 70 C; 0 to 100 % relative humidity
Resistance	10,000 Ω at 25 C
Input Voltage Requirement	2.5 V DC excitation
Output Voltage Range	0 to 2.5 V DC (assuming input excitation of 2.5 V DC)
Current Drain	0.1 mA DC at 70 C (maximum, assuming continuous input excitation of 2.5 V DC)
Dimensions	80 mm length, 4 mm diameter
Mass	60 g

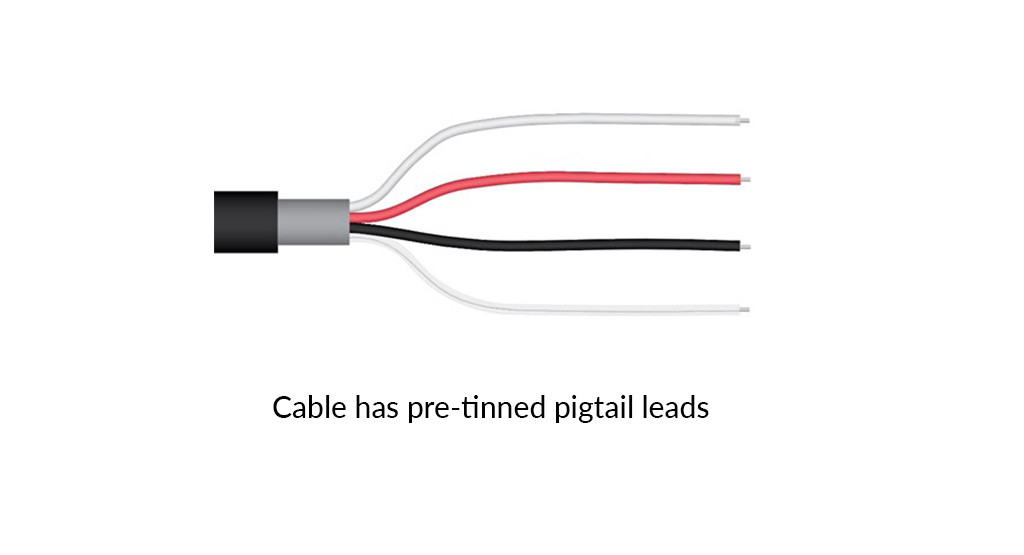

Cable	5 m of shielded, twisted-pair wire with santoprene rubber jacket (high water resistance, high UV stability, flexibility in cold conditions)
Warranty	4 years against defects in materials and workmanship
