IEPE TEMPERATURE & ACCELERATION SENSORS

Updated:2023-06-12

Views:1278

  • Brand: CTC
  • Model: TA201,TA201-M12A,TA202,TA202-M12A,TA203,TA203-M12A,TA204,TA204-M12A,TA217, TA218,TA231,TA233,TA234,TA253,TA254,TA256,TA284,TA284-M12A
  • Description: CTC's TA Series Dual Output Acceleration & Temperature Sensors are some of CTC's most popular sensors. These sensors are intended for permanent mount applications and provide both temperature (10 mV/°
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

IEPE TEMPERATURE & ACCELERATION SENSORS Description:

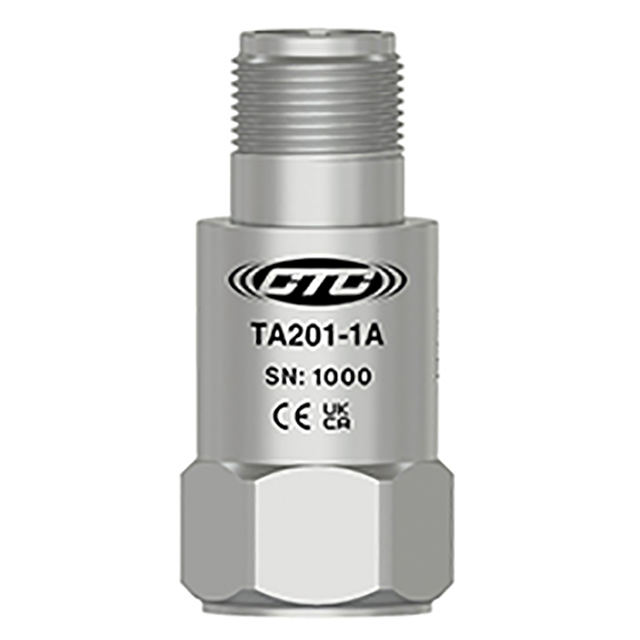

TA201Datasheet

Premium Dual Output Sensor, Temperature & Acceleration, Top Exit 3 Pin Connector, 100 mV/g, 10 mV/°C, ±5%

30-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

Premium Performance Sensor

Helps to Detect Bearing Defects and Temperature Changes

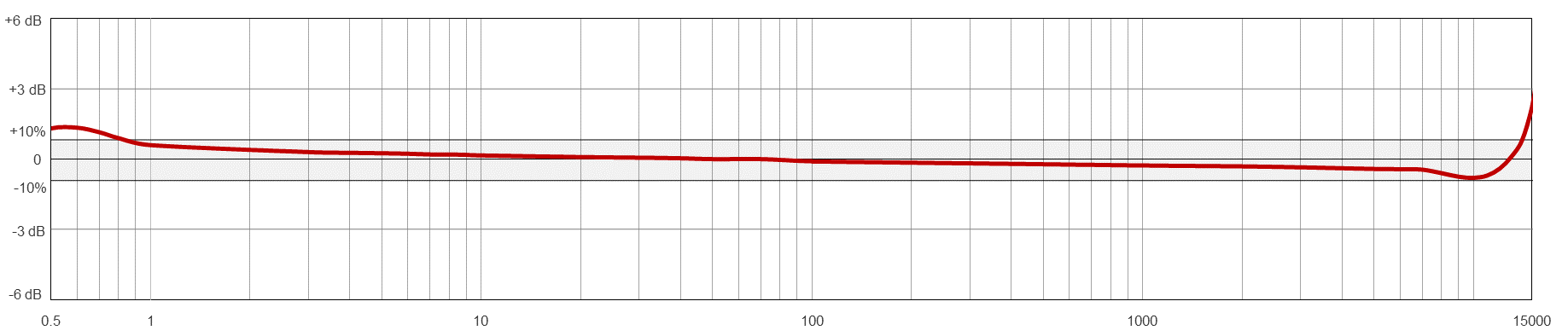

TA201 TYPICAL FREQUENCY RESPONSE

TA201-M12ADatasheet

Premium Dual Output Sensor, Temperature & Acceleration, Top Exit 4 Pin M12 Connector, 100 mV/g, 10 mV/°C, ±5%

30-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

Premium Performance Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA201-M12A TYPICAL FREQUENCY RESPONSE

TA202Datasheet

Dual Output Sensor, Temperature & Acceleration, Top Exit 3 Pin Connector, 100 mV/g, 10 mV/°C, ±10%

30-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA202 TYPICAL FREQUENCY RESPONSE

TA202-M12ADatasheet

Dual Output Sensor, Temperature & Acceleration, Top Exit 4 Pin M12 Connector, 100 mV/g, 10 mV/°C, ±10%

30-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA202-M12A TYPICAL FREQUENCY RESPONSE

TA203Datasheet

Premium Dual Output Sensor, Temperature & Acceleration, Side Exit 3 Pin Connector, 100 mV/g, 10 mV/°C, ±5%

30-600,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

High Performance Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA203 TYPICAL FREQUENCY RESPONSE

TA203-M12ADatasheet

Premium Dual Output Sensor, Temperature & Acceleration, Side Exit 4 Pin M12 Connector, 100 mV/g, 10 mV/°C, ±5%

30-600,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

Premium, High Performance Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA203-M12A TYPICAL FREQUENCY RESPONSE

TA204Datasheet

Dual Output Sensor, Temperature & Acceleration, Side Exit 3 Pin Connector, 100 mV/g, 10 mV/°C, ±10%

30-600,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA204 TYPICAL FREQUENCY RESPONSE

TA204-M12ADatasheet

Dual Output Sensor, Temperature & Acceleration, Side Exit 4 Pin M12 Connector, 100 mV/g, 10 mV/°C, ±10%

30-600,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA204-M12A TYPICAL FREQUENCY RESPONSE

TA217Datasheet

Dual Output Sensor, Temperature & Acceleration, Top Exit 3 Pin Connector, 50 mV/g, 10 mV/°C, ±10%

60-750,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA217 TYPICAL FREQUENCY RESPONSE

TA218Datasheet

Dual Output Sensor, Temperature & Acceleration, Side Exit 3 Pin Connector, 50 mV/g, 10 mV/°C, ±10%

60-600,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA218 TYPICAL FREQUENCY RESPONSE

TA231Datasheet

Dual Output Sensor, Temperature & Acceleration, Top Exit 3 Pin Connector, 10 mV/g, 10 mV/°C, ±10%

60-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA231 TYPICAL FREQUENCY RESPONSE

TA233Datasheet

Dual Output Sensor, Temperature & Acceleration, Top Exit 3 Pin Connector, 500 mV/g, 10 mV/°C, ±10%

6-600,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA233 TYPICAL FREQUENCY RESPONSE

TA234Datasheet

Dual Output Sensor, Temperature & Acceleration, Side Exit 3 Pin Connector, 500 mV/g, 10 mV/°C, ±10%

6-480,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA234 TYPICAL FREQUENCY RESPONSE

TA253Datasheet

Low Cost, Low G, Dual Output Sensor, Temperature & Acceleration, Top Exit 3 Pin Connector, 500 mV/g, 10 mV/°C, ±15%

6-600,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

Welded, Hermetic Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA253 TYPICAL FREQUENCY RESPONSE

TA254Datasheet

Low Cost Dual Output Sensor, Temperature & Acceleration, Side Exit 3 Pin Connector, 100 mV/g, 10 mV/°C, ±15%

30-600,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA254 TYPICAL FREQUENCY RESPONSE

TA256Datasheet

Low Cost, Low G, Dual Output Sensor, Temperature & Acceleration, Side Exit 3 Pin Connector, 500 mV/g, 10 mV/°C, ±15%

6-480,000 CPM Frequency Response (±3dB)

-40°F to 250°F (-40°C to 121°C) Temperature Range

Welded, Hermetic Sealing

High Performance in a Low Cost Sensor

TA256 TYPICAL FREQUENCY RESPONSE

TA284Datasheet

Dual Output Sensor, Temperature & Acceleration, M8x1.25 Captive Bolt, Side Exit 3 Pin Connector, 100 mV/g, 10 mV/°C, ±10%

30-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA284 TYPICAL FREQUENCY RESPONSE

TA284-M12ADatasheet

Dual Output Sensor, Temperature & Acceleration, M8x1.25 Captive Bolt, Side Exit 4 Pin M12 Connector, 100 mV/g, 10 mV/°C, ±10%

30-900,000 CPM Frequency Response (±3dB)

-40 to 250 °F (-40 to 121 °C) Temperature Range

IP68 Sealing

High Performance in a Low Cost Sensor

Helps to Detect Bearing Defects and Temperature Changes

TA284-M12A TYPICAL FREQUENCY RESPONSE
