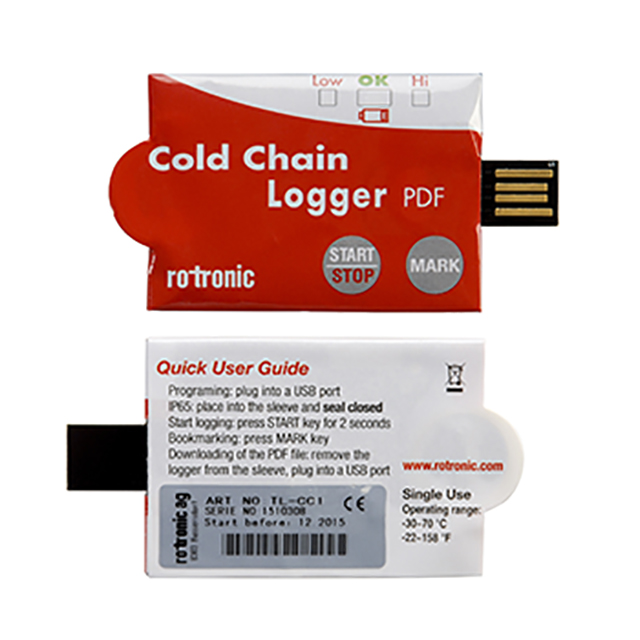

Cold-Chain Temperature Logger - Rotronic TL-CC1

Updated:2023-10-30

Views:1138

  • Brand: PST/Rotronic
  • Model: TL-CC1
  • Description: The Rotronic cold-chain temperature logger TL-CC1 is easy to configure (without software), generates PDF reports automatically and comes at an unbeatable price.
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Cold-Chain Temperature Logger - Rotronic TL-CC1 Description:

User's Manual Datasheet

Cold-Chain Logging to EN 12830

Features

PDF report generation without software installation

Freely configurable

Clear alarm indication

All-in-one logger: configuration tool, PDF report, instruction manual and calibration certificate

High storage capacity, single use, single journey

Conforms to GxP, EN 12830 and GAMP 5

The Rotronic cold-chain temperature logger TL-CC1 is easy to configure (without software), generates PDF reports automatically and comes at an unbeatable price.

Specifications

Accuracy ±0.5 °C (-30…70 °C)
Parameters Temperature
Type of logger Single use
Range of application -30…70 °C / -22...158 °F / < 80 %RH
Resolution 0.1 °C
Battery CR2032 (not replaceable)
Logging interval 0.5/5/10/30/60/90/120 min
Start delay 0.5/5/10/30/60/90/120 min
Alarm ranges -20…-10 °C, -10…0 °C, 2…8 °C, 0…15 °C, 0…25 °C, 15…25 °, freely selectable values
Alarm type Deactivated, single or cumulative
Storage period 12 months
Storage capacity 8192 data points
MARK function Marking of up to 8 points during transport
Operation START/STOP button, MARK button
LED indicators LED “Low” flashes red when value below alarm point

LED “Hi” flashes red when value above alarm point

LED “OK” flashes green during data logging

LED “Battery” flashes red when low battery
Operating system Windows
Communication interfaces USB
IP protection rating IP65 (when placed in plastic bag)
Conformity GxP, EN 12830 and GAMP5
Dimensions Without bag: 80(L) x 43(W) x 2.5(D) mm
with bag: 105(L) x 55(W) x 2.5(D) mm
Weight ≈ 10g

Suitable Applications

Monitoring of the cold chain during the transportation of sensitive freight

such as pharmaceuticals, foods and technical products.
