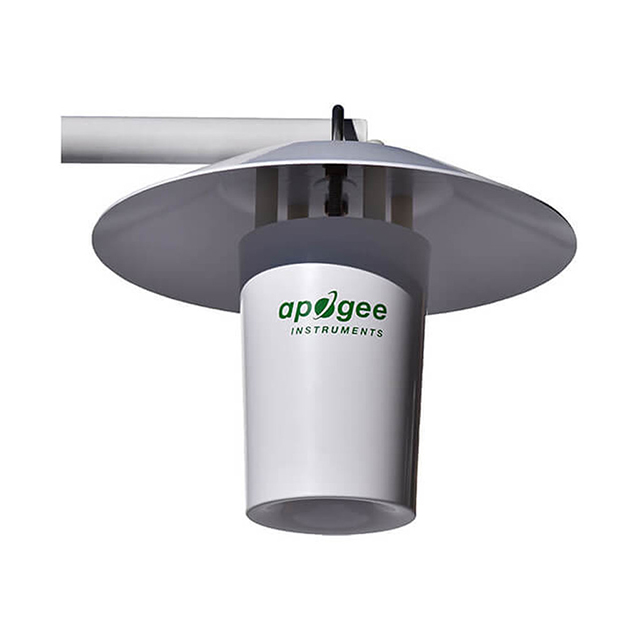

TS-100-SS 12V Aspirated Radiation Shield (Shield Only)

Updated:2022-12-23

Brand:APOGEE
Model: TS-100-SS
Product description: The TS-100 is the only shielding model for the apogee 12 volt fan suction radiation shield. Its unique aerodynamic shape and rugged low power consumption fan make it a research grade fan suction shiel
Data download

Feedback
WeChat

QQ

Online Service

product details

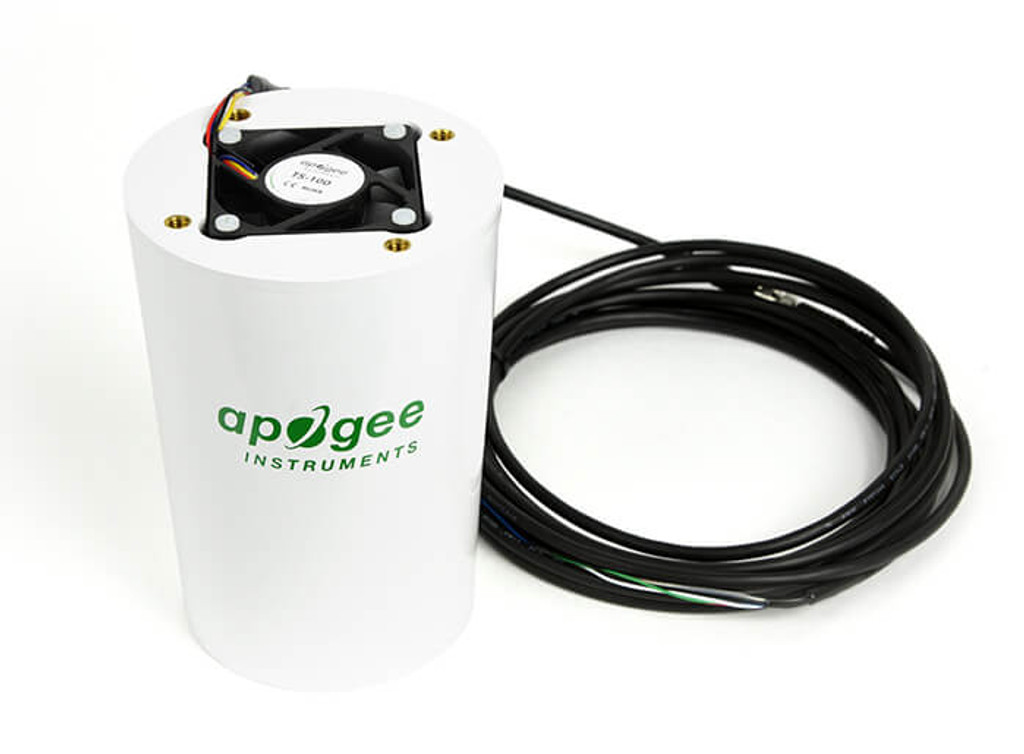

Overview of TS-100-SS 12V Aspirated Radiation Shield (Shield Only):

User's Manual

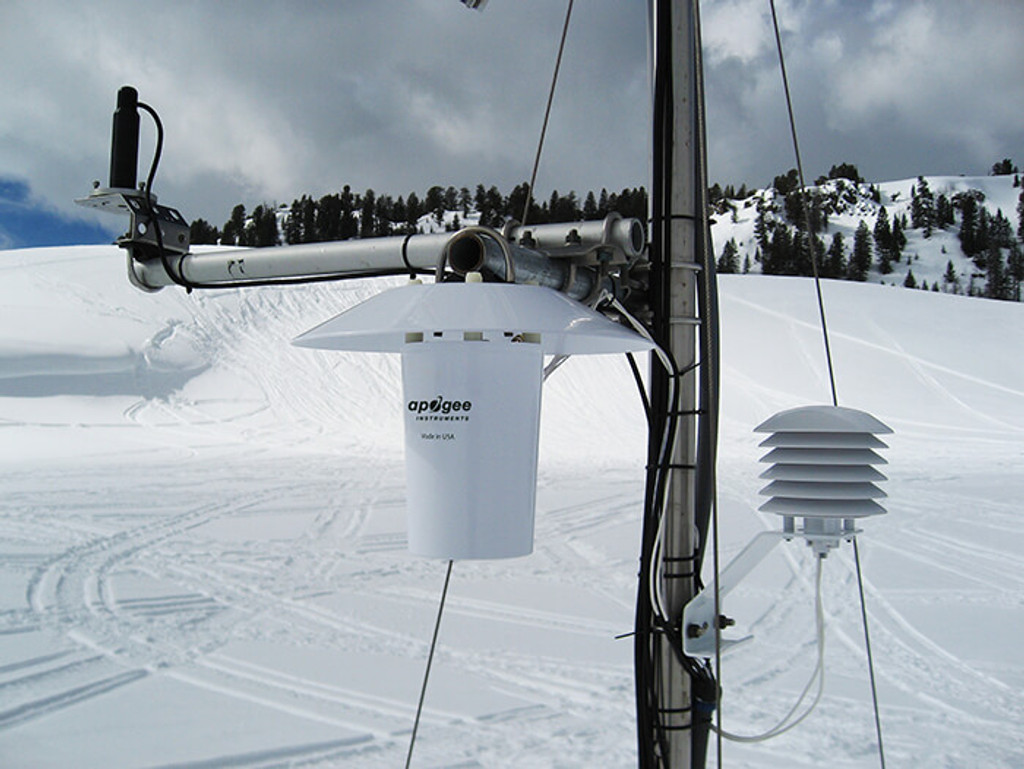

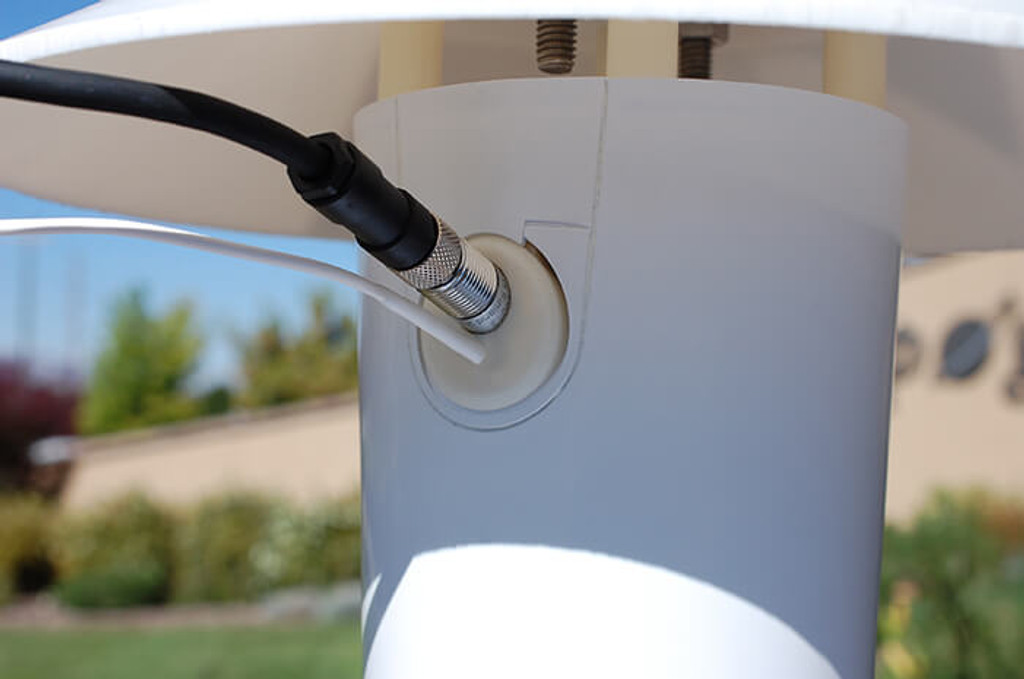

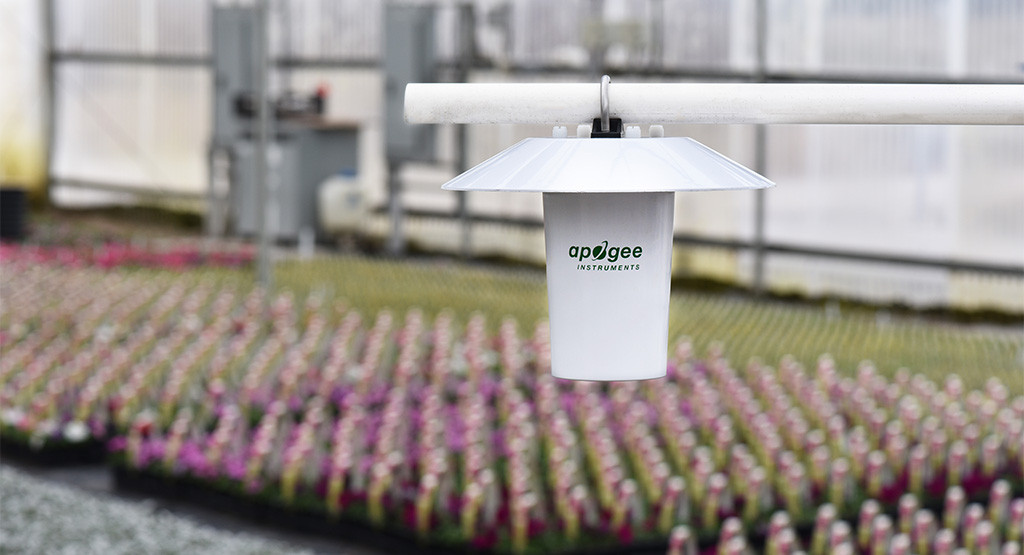

The TS-100 is the only shielding model for the apogee 12 volt fan suction radiation shield. Its unique aerodynamic shape and rugged low power consumption fan make it a research grade fan suction shield that can be used in batteries or solar power plants. The shield provides excellent sensor protection and uses a sensor port adapter plug to accommodate various combinations of thermistors, PRTs, and humidity probes. Typical applications include air temperature and humidity measurements in weather networks, usually for weather forecasting, and solar energy sites. Fan suction shields are also important in accurately measuring air temperature and humidity gradients above the surface and in monitoring climate change.

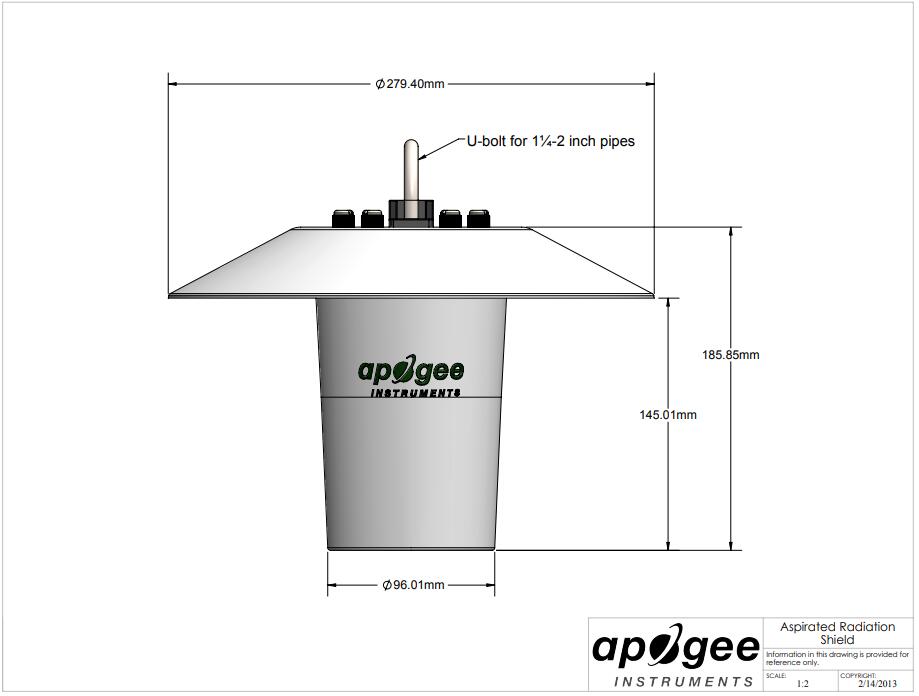

Drawing of TS-100-SS Shield:

Specification of TS-100-SS Shield:

Difference among Individual Replicate Shields	Less than 0.1℃
Aspiration Rate	6 m/s at full speed, 3 m/s at half speed
Fan Input Voltage Requirement	10.8 to 13.2 V DC
Fan Current Draw	80 mA at full-speed, 25 mA at half-speed
Fan Dust and Water Protection	IP55
Operating Temperature Range	-40 to 70 ℃
Dimensions	220 mm height, 270 mm diameter
Mass	840 g
Cables	5 m of shielded, twisted-pair wire for fan and air temperature sensors with santoprene rubber, jacket (high water resistance, high UV stability, flexibility in cold conditions)
Temperature Sensor	Not included (included in model TS-110)
Warranty	4 years against defects in materials and workmanship
Manufactured	Made in the USA
