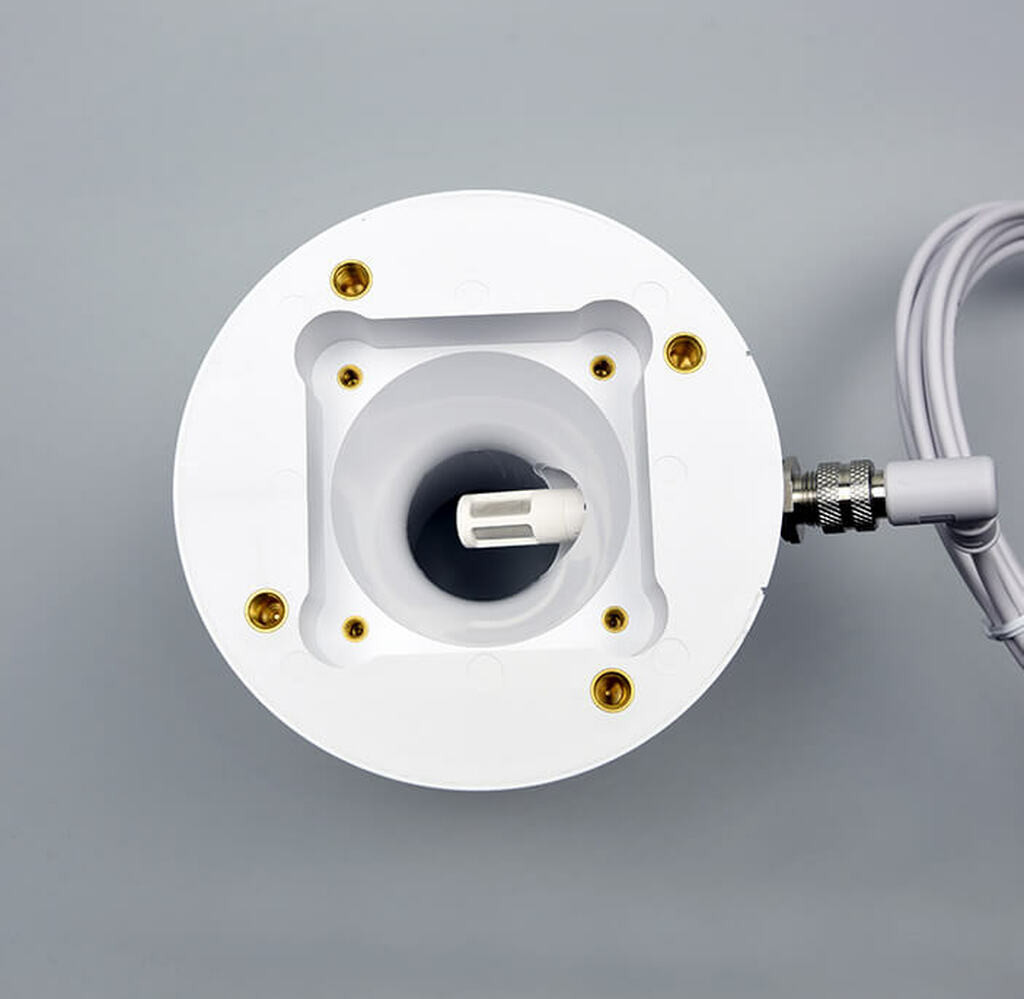

The TS-220 model includes the TS-200 fan-aspirated radiation shield and an EE08-SS relative humidity probe at a special price. The unique aerodynamic shape and rugged, low-power fan make it the first research-grade fan-aspirated shield that is practical for use on batter or solar powered stations. The shield provides excellent sensor protection and accommodates various combinations of thermistors, PRTs, and humidity probes using one of the sensor port adapter plugs. Click here for a list of compatible sensors. If you use a different sensor, please contact us directly to discuss compatibility. Typical applications include air temperature and humidity measurement in weather networks, often for weather forecasting, and solar energy sites. Fan-aspirated shields are also important in the precise measurement of air temperature ad humidity gradients above the land surface and in climate change monitoring.

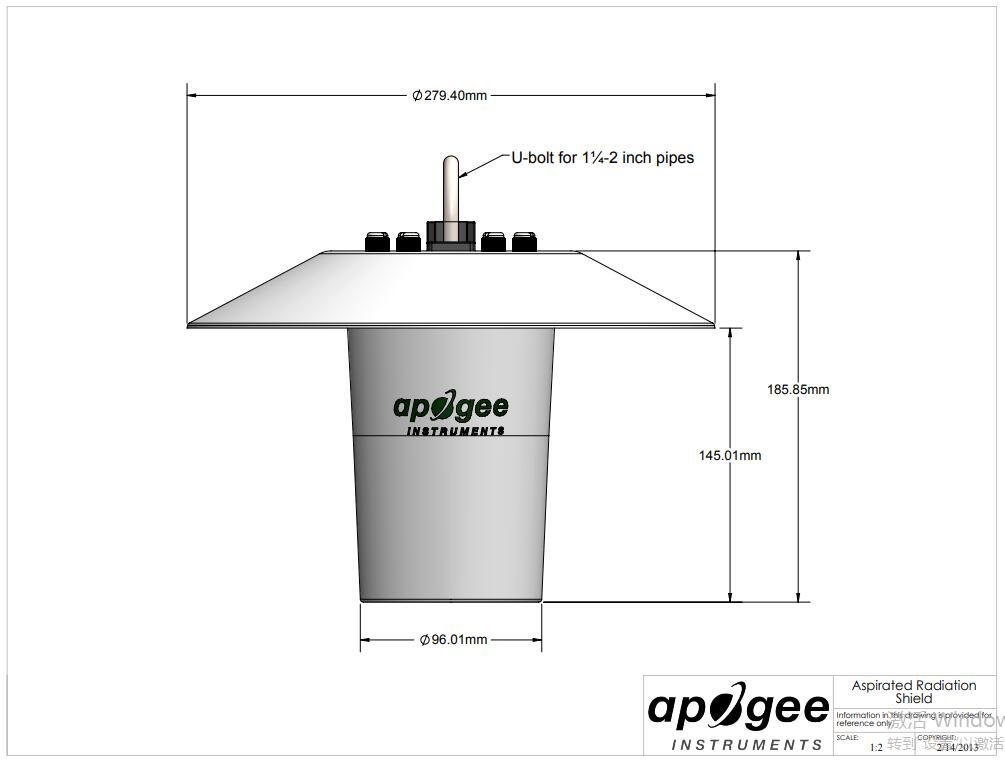

TS-220 Drawing
Difference among Individual Replicate Shields | Less than 0.1 C |
Aspiration Rate | 6 m/s at full speed, 3 m/s at half speed |
Fan Input Voltage Requirement | 14.0 to 27.6 V DC |
Fan Current Draw | 80 mA at full-speed, 25 mA at half-speed |
Fan Dust and Water Protection | IP55 |
Operating Temperature Range | -40 to 70 C |
Dimensions | 220 mm height, 270 mm diameter |
Mass | 840 g |

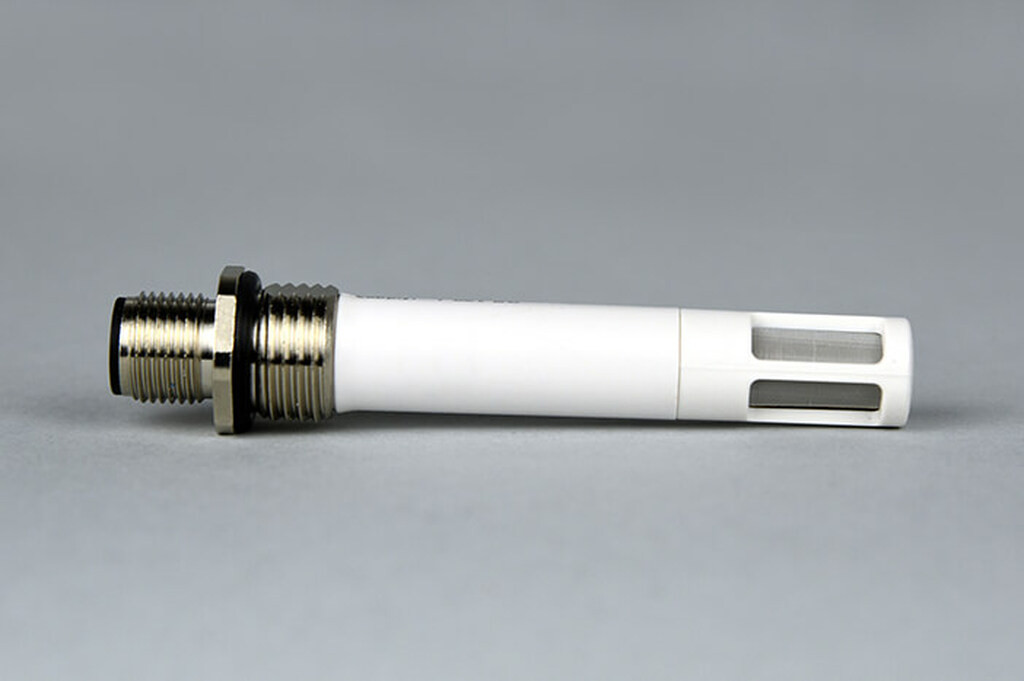

Humidity Probe | EE08-SS |
