TS-230 24 V Shield/EE08 Probe/Thermistor Package

Updated:2023-05-19

Views:1119

  • Brand: Apogee
  • Model: ECT
  • Description: The TS-230 24 V model includes the TS-200 fan-aspirated radiation shield, an EE08-SS relative humidity probe, and a ST-110-SS thermistor at a special package price. The unique aerodynamic shape and ru
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

TS-230 24 V Shield/EE08 Probe/Thermistor Package Functional Characteristic:

User's Manual

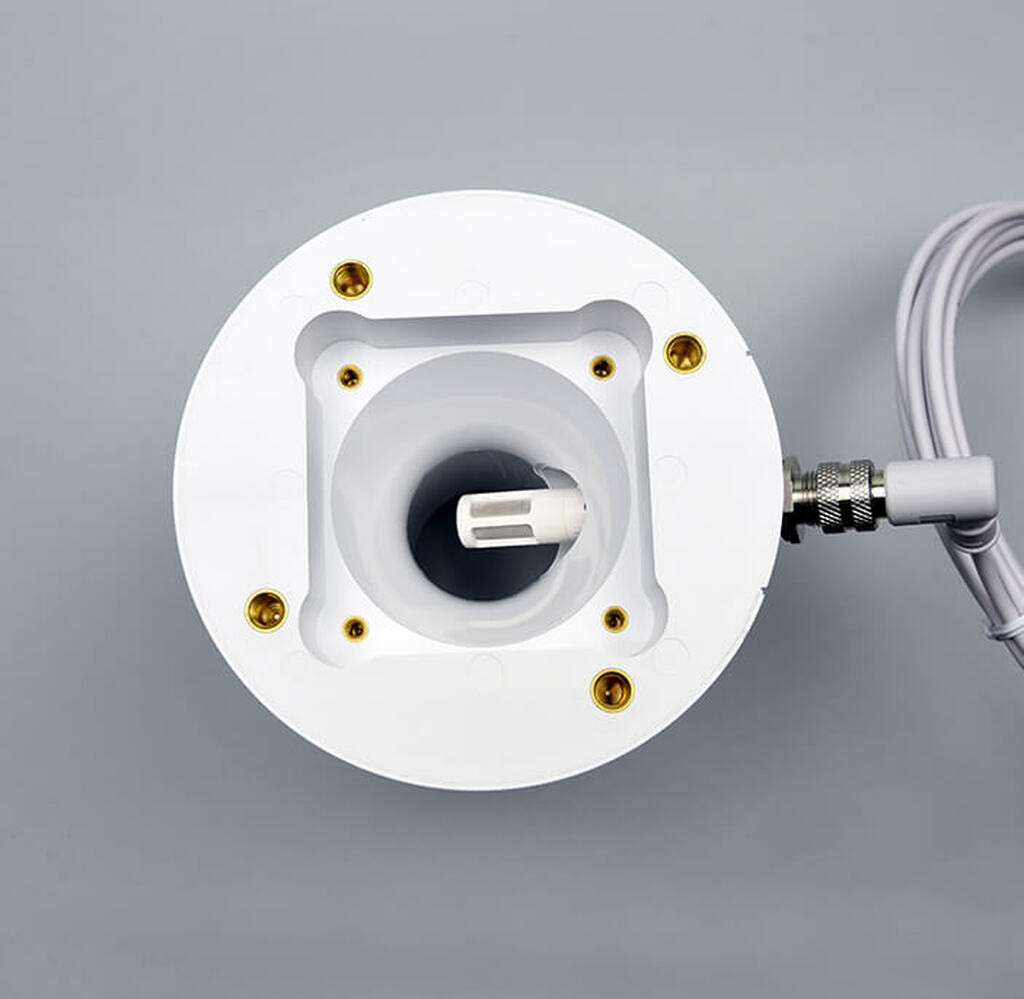

The TS-230 24 V model includes the TS-200 fan-aspirated radiation shield, an EE08-SS relative humidity probe, and a ST-110-SS thermistor at a special package price. The unique aerodynamic shape and rugged, low-power fan make it the first research-grade fan-aspirated shield that is practical for use on batter or solar powered stations. The shield provides excellent sensor protection and accommodates various combinations of thermistors, PRTs, and humidity probes using one of the sensor port adapter plugs. Click here for a list of compatible sensors. If you use a different sensor, please contact us directly to discuss compatibility. Typical applications include air temperature and humidity measurement in weather networks, often for weather forecasting, and solar energy sites. Fan-aspirated shields are also important in the precise measurement of air temperature ad humidity gradients above the land surface and in climate change monitoring.

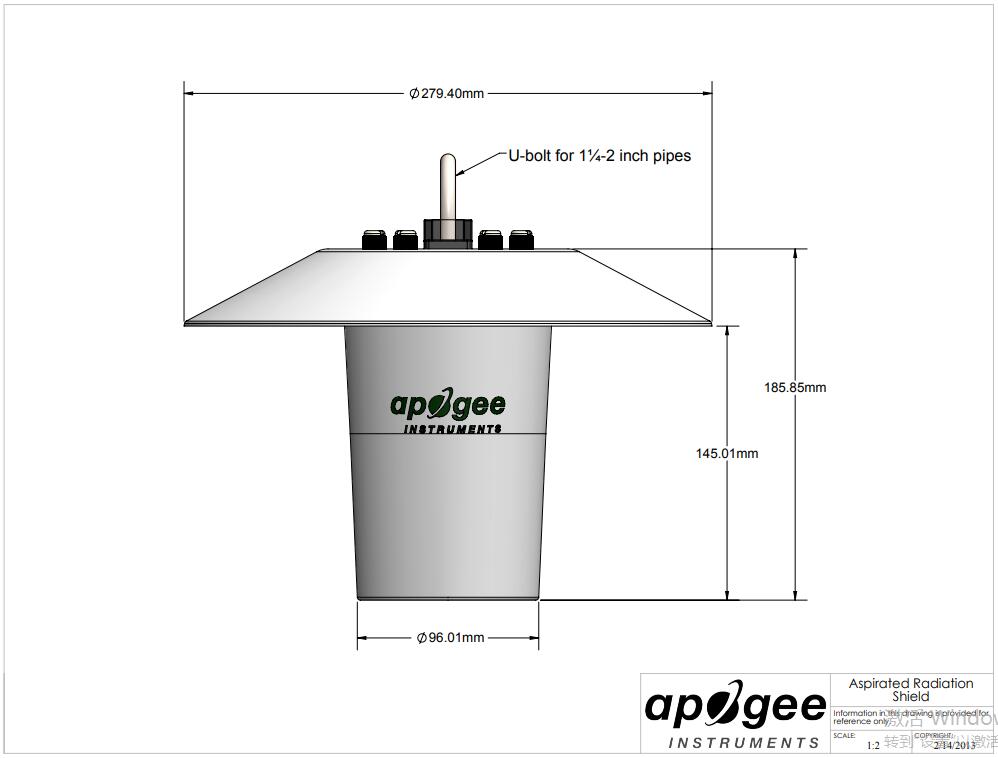

TS-230 24 V Shield/EE08 Probe/Thermistor Package Drawing:

TS-230 Drawing

TS-230 24 V Shield/EE08 Probe/Thermistor Package Specification:

Difference among Individual Replicate Shields Less than 0.1 C
Aspiration Rate 6 m/s at full speed, 3 m/s at half speed
Fan Input Voltage Requirement 14.0 to 27.6 V DC
Fan Current Draw 80 mA at full-speed, 25 mA at half-speed
Fan Dust and Water Protection IP55
Operating Temperature Range -40 to 70 C
Dimensions 220 mm height, 270 mm diameter
Mass 840 g

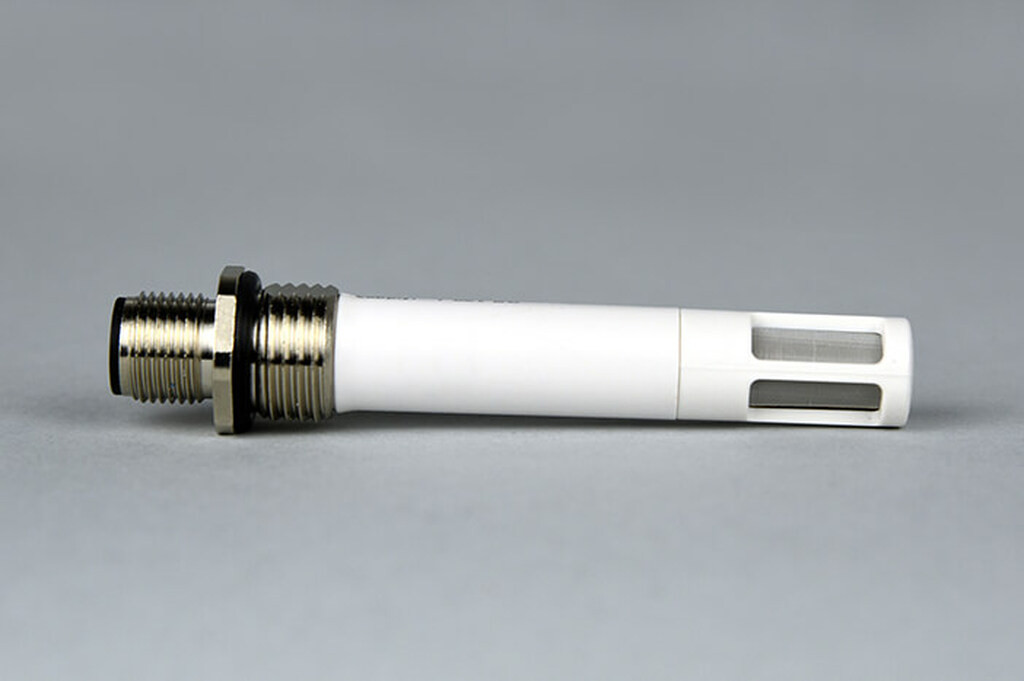

Humidity Probe EE08-SS
Temperature Sensor ST-110-SS
