Torrent Photonics Transmission Spheres

Updated:2024-12-24

Views:38

  • Brand: Torrent Photonics
  • Model:
  • Description: At Torrent Photonics, we produce a high-quality extended-range line of transmission spheres (t-spheres). This line includes many standard F/# 633nm builds as well as custom F/# and custom wavelength t
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Torrent Photonics Transmission Spheres Description:

At Torrent Photonics, we produce a high-quality extended-range line of transmission spheres (t-spheres). This line includes many standard F/# 633nm builds as well as custom F/# and custom wavelength t-spheres available upon request. T-spheres are a necessary part of Fizeau interferometry and are used to measure the transmitted wavefront of optical systems and the reflected wavefront of optical surfaces.

Applications

As an example, when using an SLR camera, the camera body cannot take a picture without a camera lens attached. Similarly, an interferometer body cannot measure without a transmission sphere or transmission flat. F/# is the ratio between focal length and entrance pupil diameter where different F/#‘s are required to measure different radius optics. F/# can be simply thought of as the ratio between the radius of curvature and visible aperture for reflected wavefront measurements. A “faster” (smaller number) F/# can measure a larger area for a given radius, but the focal length is shortened, limiting the radius of curvatures you can measure with it.

The key to the accuracy of a t-sphere is the final surface of the assembly, known as the reference surface. When light from the interferometer passes through the reference, the resulting wavefront interferes with the surface(s) under test. In general, the reference surface is assumed to be perfect, and all the interference that is measured by the interferometer is assumed to be from the part under test. Torrent Photonics high precision, pitch polished reference surfaces for smooth, low irregularity wavefronts. This level of optical workmanship allows us to offer all our t-spheres (including our F/0.56) at λ/20 quality (at λ = 632.8nm) and most at λ/40 level.

Advantages

Proprietary Kreischer extended range designs for measurement of longer convex radius of curvatures than comparable F/# t-spheres

Unique optical design to reduce the effects of lateral (tilt) retrace error

More catalog standard F/#‘s than found from other sources, which fill in the gaps in metrology.

4-Inch TS Series

f/No. R D WD OD L EFL
f/0.56 22.7 40.7 8.1 147.8 132.3 55.8
f/0.65 39.0 60.0 22.0 133.4 101.8 65.6
f/0.75 50.0 66.7 32.5 133.4 101.8 76.1
f/1.0 90.0 90.0 72.2 133.4 96.3 100.3
f/1.5 142.7 96.4 130.0 133.4 83.4 150.4
f/2.4 264.5 110.2 255.0 133.4 96.3 244.4
f/3.3 344.7 104.2 336.0 133.4 71.1 339.3
f/4.9 540.1 110.2 532.0 133.4 71.1 500.2
f/6.0 633.3 104.7 626.0 133.4 71.1 615.3
f/7.1 800.1 112.7 794.0 133.4 71.1 723.5
f/10.7 1201.4 112.3 1195.0 133.4 71.1 1087.8
f/12.0 diverger 1,201 cx 104.0 n/a 134.2 20.4 -1185.0
f/12.5 converger 1,258.0 cc 101.0 1253.0 134.2 20.4 1286.0
f/14.3 converger 1,431.9 cc 99.9 1425.0 134.2 20.4 1462.3
f/16.5 converger 1,654.4 cc 100.1 1648.0 134.2 20.4 1683.2
f/20.0 diverger 2,043 cx 102.7 n/a 134.2 20.4 -2026.4

6-Inch TS Series

f/No. R D WD OD L EFL
f/0.75 72.1 96.0 47.0 180.1 149.9 107.5
f/1.1 130.7 120.9 109.0 180.1 110.1 160.8
f/1.6 220.3 136.5 199.0 180.1 110.1 243.0
f/2.4 346.7 146.9 333.0 180.1 89.9 361.5
f/3.5 518.3 148.1 507.0 180.1 89.9 532.6
f/5.0 739.8 150.4 730.0 180.1 89.9 749.8
f/7.4 1128.0 152.4 1120.0 180.1 89.9 1127.4

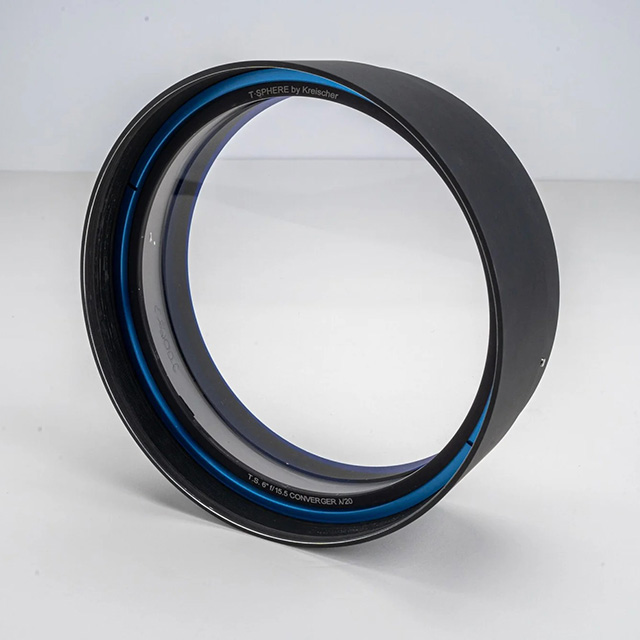

f/15.5 converger 2342.3 cc 150.9 2314.7 177.7 47.5 2373.6
