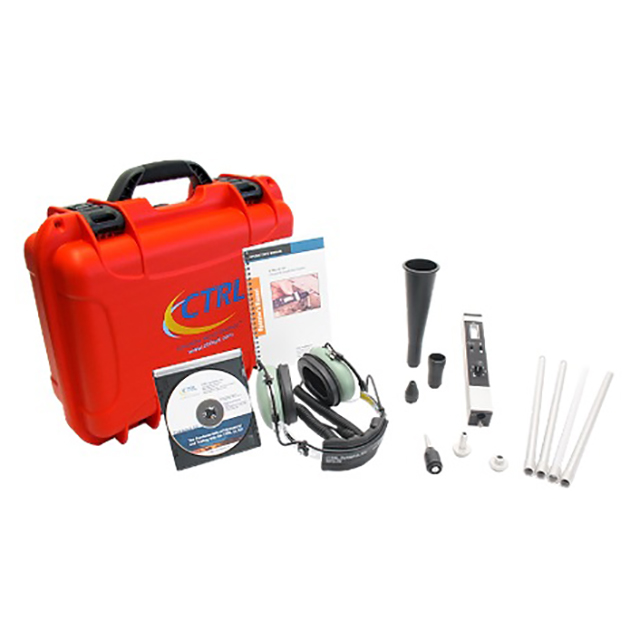

UL101 Leak Detector

Updated:2024-03-06

Views:1078

  • Brand: CTRL
  • Model: UL101
  • Description: The UL101 Leak Detector quickly locates the ultrasound waves produced by compressed gas and vacuum leaks. Simply aim the leak detector in the direction of the piping and adjust the sensitivity to pinp
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

UL101 Leak Detector Description:

Product Manual

The UL101 Leak Detector quickly locates the ultrasound waves produced by compressed gas and vacuum leaks. Simply aim the leak detector in the direction of the piping and adjust the sensitivity to pinpoint the location of any leak with turbulent flow. The UL101 has the best signal-to-noise ratio and highest sensitivity in the market. Leaks sound like rushing air in the operator's head set, and the gain can be minimized to eliminate all or most ultrasonic "white noise" for an operator-friendly user experience.

Benefits:

Ease-of-use

Simply adjust the sensitivity on the UL101 Leak Detector's handheld receiver to pinpoint the leak; scan areas from up to 300 feet away with the PowerBeam 300 parabolic accessory.

Directionality

Ultrasound travels in linear paths and doesn't tend to travel around corners or reflect. Using CTRL’s acoustic ultrasound listening products, leaks are not easily masked.

No calibration needed

Acoustic ultrasound is used for indication and location, not leak measurement. Our leak detectors are ruggedized for use in the most caustic of environments, including power plants

Sensitivity

Our UL101 Leak Detectors can find leaks faster and more accurately. Your systems can now run at normal and even improved vacuum levels to improve power turbine efficiency.

Costs

The cost of a high end ultrasound detector is 3 to 5 times less than the cost of a helium leak detection system. CTRL’s UL101 products are priced competitively compared to industry leaders, require less training, and are faster to use.

Work Principle:

Using ultrasound detectors for leak detection is a growing industry standard. Acoustic ultrasound leak detection is recommended by many, such as the U.S. Department of Energy, as the best method for detecting the location of leaks in order to minimize energy waste and improve plant efficiency.

The CTRL UL101 Leak Detector converts the ultrasound (40 kHz +/- 1 kHz) down into the audible range and outputs to a headset. All other frequencies are filtered, so that even the smallest air/gas, vacuum, or refrigerant leak can be detected and pinpointed in a noisy plant environment.

Applications:

Leak Detection(Pressure & Vacuum)

Electrical Inspection

Valves & Steam Traps

Key Features:

Fixed Frequency

High Sensitivity to all turbulent flow air, gas, or vacuum leaks

Easily adjustable sensitivity and gain

Lightweight, one-handed operation

Converts ultrasound to easily recognizable audible sounds

Standard 9-Volt Battery means no waiting to recharge

Technical Specifications

Receiver / Transmitter Dimensions 8.75” x 1.26” x 1.26” (222 x 32 x 32 mm)
4.125" x 1.26" x 1.26" (105 x 32 x 32 mm)
Kit Shipping Dimensions 17" x 8" x 14" (43 x 20 x 35 cm)
Kit Shipping Weight 9 lbs (4 kg)
Housing Extruded Aluminum, wall thickness .09" (2.3 mm)
Battery 9-Volt Alkaline (> 45 continuous hours use)
Distance of Reception Up to 150 feet (45 m)
Sensitivity Threshold Minimum Intensity: 10-12 W/m2 (0 dB SPL)
Minimum Ultrasonic Pressure: 2.0 x 10-5 PA @ 40 kHz
Frequency Bandwidth 1.8 - 2.2 kHz @ level 0.7 (or -3 dB SPL)
Working Resonance Frequency 40 kHz +/- 1.5 kHz
Operating Temperature Range -4° to +130° F (-20° to +54° C)
Headset Industrial Grade/600-Ohm Impedance
21-24 dB External Noise Attenuation
Warranty Over or Behind-the-Head (for use with hardhat)
5-year parts & labor on all manufacturer's defects.
No calibration required.
Requalification of performance (once per year)
