PowerBeam 300

Updated:2024-03-07

Views:1131

  • Brand: CTRL
  • Model: PowerBeam 300
  • Description: The PowerBeam 300 is a parabolic accessory originally designed to test high voltage insulators and transformers from a safe distance with a high degree of accuracy. The PowerBeam 300 can accurately pi
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

PowerBeam 300 Description:

Product Manual

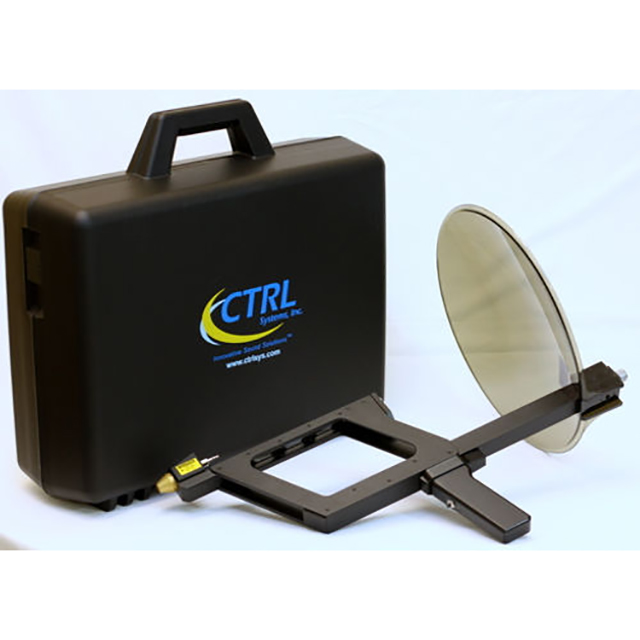

The PowerBeam 300 is a parabolic accessory originally designed to test high voltage insulators and transformers from a safe distance with a high degree of accuracy. The PowerBeam 300 can accurately pinpoint sources of ultrasound within 1 degree off target from up to 300 feet (91.44 meters) away.

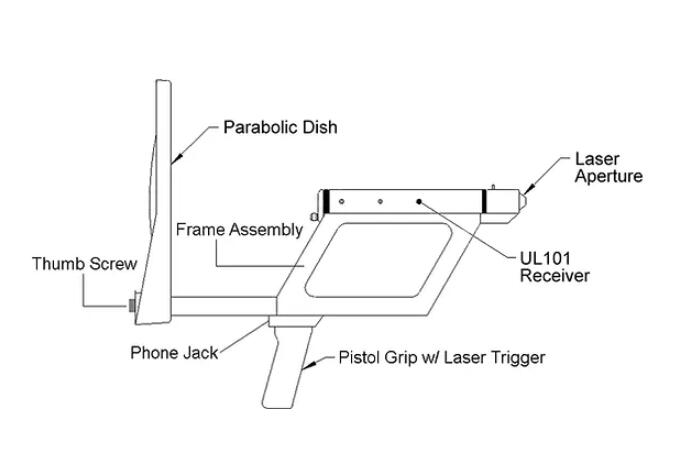

The PowerBeam 300 accurately pinpoints source of ultrasound to within 1 degree from center and improves the sensitivity of the UL101. The "PB300" was originally designed for the indication and location of corona discharge and arcing on medium/high voltage transformers.

The PB300's ability to pinpoint ultrasound is very useful when finding compressed air/gas or steam leaks in pipes located on high ceilings. There is no need to get a ladder or scissor lift.

Applications:

Leak Detection(Pressure & Vacuum)

Electrical lnspection(arcing, tracking corona discharge)

Valves & Steam Traps

Power Transmission(switch gear,transformers, etc)

Benefits:

Energy Savings

Safety

Corona Discharge

Electrical Arcing & Tracking to Prevent Arc Flash

Time Savings

Cost Savings vs. Corona Camera

Technical Specifications

Distance of Reception up to 300 ft
Threshold of Sensitivity 0 dB SPL
Resonance Frequency 40 kHz +/- 1 kHz
Operating Temperature -4° to +130° F(-20° to +54° C)
Power Supply standard AAA battery (x 2)
Battery Life 30 continuous hours
