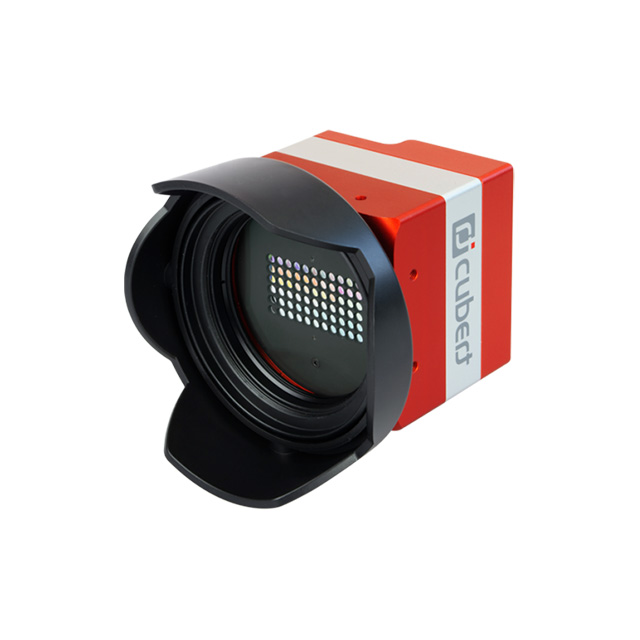

Cubert ULTRIS X20 Hyperspectral Cameras

Updated:2024-12-25

Brand: Cubert
Model: Cubert ULTRIS X20
Description: Covering a wavelength range of 350nm to 1000nm in 164 spectral bands, the ULTRIS X20 offers a precise light field-based capture at a native resolution of 410×410 px. This covered wavelength range make
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Cubert ULTRIS X20 Hyperspectral Cameras Description：

Product Manual Technical data sheet

Covering a wavelength range of 350nm to 1000nm in 164 spectral bands, the ULTRIS X20 offers a precise light field-based capture at a native resolution of 410×410 px. This covered wavelength range makes it the first UV/VIS/NIR hyperspectral video imager. Unlike “push-broom” technology, you can expect rich 3D data cubes in real-time without scanning.

The ULTRIS X20 provides a powerful technology that can be adapted easily to accommodate various customer wishes. Its ability to range from ultraviolet to near-infrared makes it suitable for many applications.

Key Features

20 MP hyperspectral video camera (x, y, λ)

350nm to 1000nm (UV-VIS-NIR)

164 spectral bands

410x410 px spatial resolution

Applications

Security & Defense

Biomedical Sensing

Environmental Monitoring

Food and Pharmaceuticals

Technical Specifications

Technology	Light Field
Wavelength Range	350nm to 1000nm
Spectral Bands	164
Spectral Sampling	4nm
Spatial Resolution	410x410 px
Total Spectra / Image	168 000
Total Data Points / Cube	27 Million
Data Depths	12 bit
Readout	Global shutter
Max Frame Rate	8 Hz
Integration Time	0.1ms to 1000ms
Field of View (FOV)	35 degrees
Power Consumption	8 W
Data Link	1-2 GigE
Weight	350g
Size	60x60x57 mm
