Cubert ULTRIS 5 Hyperspectral Cameras

Cubert ULTRIS 5 Hyperspectral Cameras Description：

Product Manual Technical data sheet

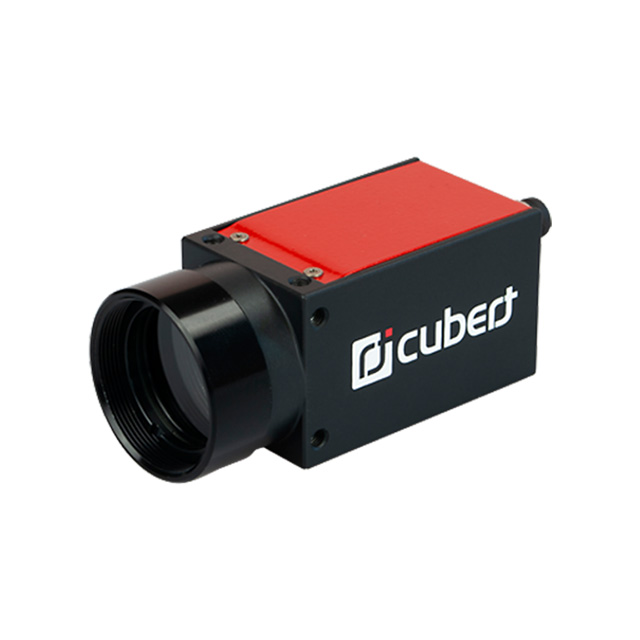

The ULTRIS 5 is a small form factor hyperspectral camera offering affordability to compete against even the best RGB and multispectral cameras. The performance comes from the fundamental light field technology of the ULTRIS 20 and downsizing it into a smaller footprint. The result is a hyperspectral video camera boasting a 5 MP sensor, occupying 30×30×50 mm and weighing in at only 120g.

The ULTRIS 5 features the same footprint as a standard industrial imaging camera in size and price but brings incredible spectral discrimination in comparison. It is small enough to fit into any industrial process system, powerful enough to fulfill medical imaging needs, and fast enough to record complete non-scanning data cubes at 15Hz.

Key Features

5MP hyperspectral snapshot imager (x, y, λ)

30x30x50 mm

120g

Spectral range 450nm to 850nm

50 spectral bands

250x250 px spatial resolution

Applications

Security & Defense

Biomedical Sensing

Environmental Monitoring

Food and Pharmaceuticals

Technical Specifications
