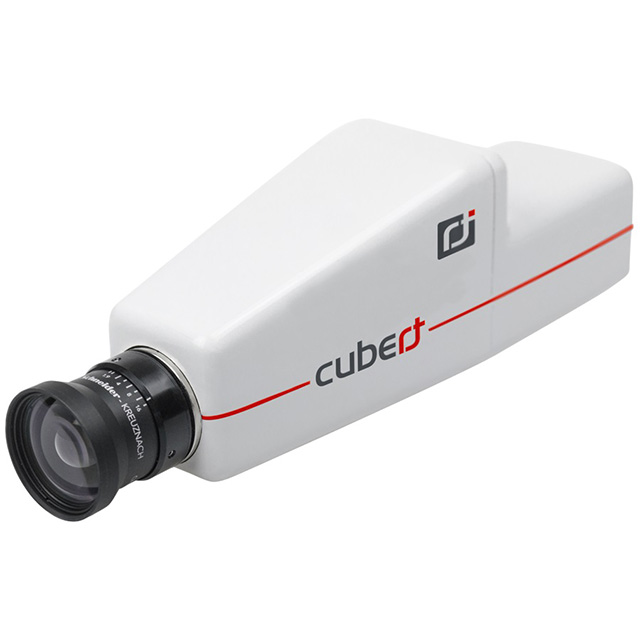

Cubert FireflEYE V185 Hyperspectral Microscopy

Cubert FireflEYE V185 Hyperspectral Microscopy Description：

Datasheet

The FireflEYE V185 brings hyperspectral imaging into the world of microscopy, enabling endoscopy. The camera not only saves time by utilizing Cubert’s snapshot technology, but it aids in monitoring real-time processes such as samples in a petri dish.

The latest improvements to this model include upgrading the main sensor to a modern CMOS sensor and offering both 12-bit and 14-bit versions. The 14-bit provides a 2x high signal-to-noise ratio and 4x higher dynamic range compared to the previous FireflEYE S185.

Attaching a relay lens to the FireflEYE provides complete interchangeability to C-mount lenses. Additionally, the relay lens allows for a lens change without all the hassles of camera re-calibration. When paired with a close-up lens set, you can expect macroscopic scaled views of areas that are just a few mm.

While aimed primarily at lab use, this camera was the first-ever lightweight hyperspectral snapshot camera used for aerial mapping from a UAS. Because of the versatility of lenses, the user has all the choices in enabling different fields of view depending on the task.

Key Features

3D hyperspectral snapshot imager (x, y, λ)

VNIR coverage (450-950 nm)

125 spectral bands

12-bit / 14-bit version

25 Hz max frame rate

Compatible with microscopes

Applications

Security & Defense

Biomedical Sensing

Environmental Monitoring

Food and Pharmaceuticals

Technical Specifications
