Gentec-EO UP55M-700W-HD-D0 Thermal Detector

Gentec-EO UP55M-700W-HD-D0 Thermal Detector Description：

Datasheet(CN) Datasheet(EN) PC-Gentec-EO User's Manual BLU User's Manual INTEGRA User's Manual UP and XLP12 User's Manual

Gentec-EO UP55M-700W-HD-D0 Thermal detector for laser power measurement up to 700 W.

Optional BLU (wireless) output

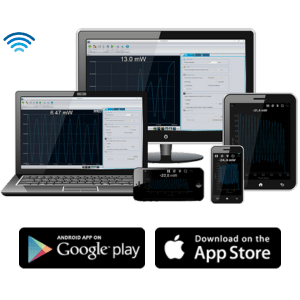

This detector can be purchased with an embedded wireless interface. Save money by not having to purchase a separate monitor. Download our free mobile app or PC software, activate your Bluetooth connection and start measuring your laser.

Create your optimal measurement setup without being limited by cable length or monitor location

Receive data at up to 30m from the detector with the same performance

Enjoy a safer work environment with less tangled cables

Save money on recalibration with an all-in-one instrument

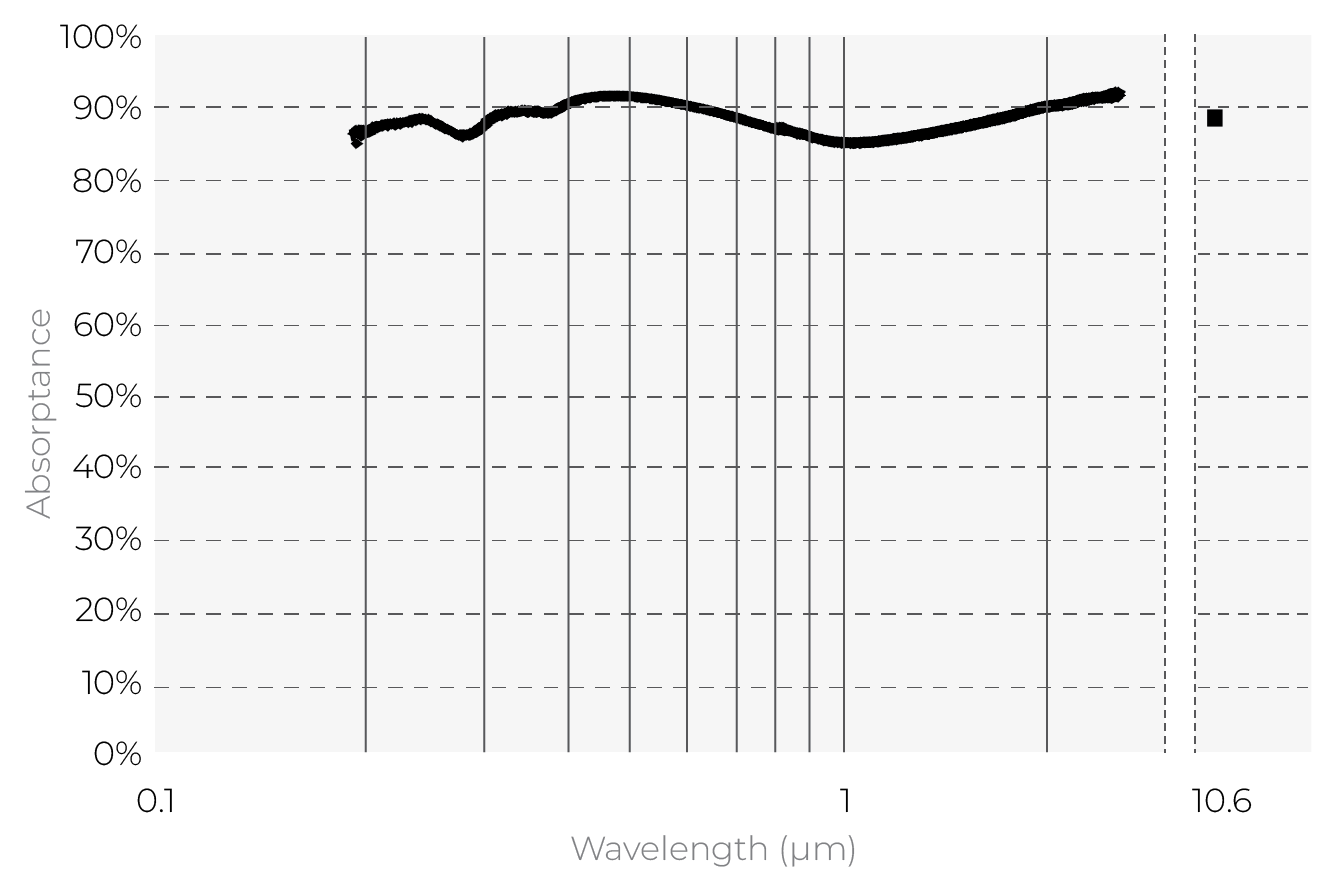

Broadband HD absorber: High performance for high-power lasers

Our HD absorber offers high damage thresholds and a flat broadband spectral response for high-power lasers in the kilowatt range. Detectors with this absorber are versatile and can cover several high-power measurement needs.

Low risk of damaging the equipment thanks to high damage thresholds

Useful for measuring a wide range of high-power lasers

Faster measurement with XNR Anticipation

Measure laser power up to 10x faster (model-dependant) with XNR AnticipationTM. Our proprietary algorithm looks at the rate at which the signal increases or decreases and combines this with calibration data to predict the result. The measurement is therefore calculated and displayed faster than the natural response of the detector.

Save several seconds to tens of seconds for each measurement

Shorter operation interruption

Faster laser output diagnostics

Increased productivity

No compromise on measurement accuracy

Optional INTEGRA (USB or RS-232) output

When you choose the INTEGRA output option you get an all-in-one measurement instrument that combines both the detector and the meter in one convenient product. Plug the detector in your PC, install our free software and start measuring.

The most cost-efficient solution

Same measurement performance as our other solutions

No compromise on interface functions and features

Compact solution for OEM applications and field servicing

Save money on recalibration with an all-in-one instrument

Key Features

High Density Absorber

The HD absorber is the strongest on the market for use at high powers, presenting both high average power handling and high power density capabilities.

Fast and Compact

A very compact detector that measures up to 700 W of continuous power.

Smart Interface

Containing all the calibration data

Specifications
