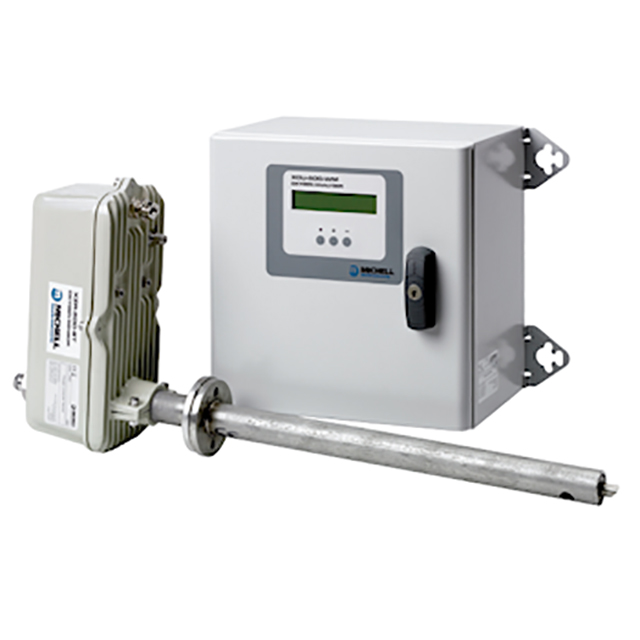

Oxygen Combustion Control Analyzer - Michell XZR500

Updated:2023-10-23

Views:1073

  • Brand: PST/Michell
  • Model: XZR500
  • Description: The XZR500 oxygen analyzer from Michell Instruments is designed to determine the excess air required for optimum combustion. It uses advanced Zirconium Oxide technology to measure levels of oxygen in
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Oxygen Combustion Control Analyzer - Michell XZR500 Description:

User's Manual Datasheet

Robust Long-Life MSRS Zirconia Sensor

Features

Measurement range: 0.01 to 25% O2

Various probe for stack temperatures up to 1,400°C

No air reference required with our Metallic Sealed Reference Sensor

Long life zirconia cell with reliable accurate measurements

Simple to maintain, easy to calibrate every 6 months

Robust design that is simple to use

Quick and easy to install

The XZR500 oxygen analyzer from Michell Instruments is designed to determine the excess air required for optimum combustion. It uses advanced Zirconium Oxide technology to measure levels of oxygen in harsh conditions such as boilers, incinerators, cremators and furnaces. It provides fast, accurate readings taken in the harshest of conditions. It has a range of probes from 400mm to 900mm in length with multiple material options from stainless steel to Hastelloy for corrosive environments to ceramic or silicon carbide for temperatures up to 1,400 °C. There is no chance of thermal shock or moisture condensing in the sensor as the analyzer uses a close coupled extractive sample method with the sensor in an oven maintained at 700°C. When utilising the Pitot effect, the sample is vented back inside the flue and no instrument air is required for sampling. Blowback and air ejector options are available if the application is more demanding, such as coal fired furnaces.

Specifications

Sensor Type
Measurement Principle Zirconium Oxide Sensor with metallic sealed reference and K Type T/C (MSRS)
Performance
Gas requirements Typical exhaust gas
Measurement Range 0.01...25 % Oxygen
Accuracy Better than ± 2% of reading
Response Time (T90) 20 seconds
Repeatability ± 0.1 %
Drift <1 % per month
Linearity Better than ± 1 %
Sample Flow Rate Flue Gas at 0.5 m/sec (17.65 ft/s) minimum rate
Maximum Sample Pressure Depending on application
Dust Loading The back flush option is required for any sample containing > 250 mg/m3 particulates
Sample Temperature Up to 1400 °C (2552 °F) (see probe selection in 'wetted materials')
Outputs
Output Signal One off 0/4...20 mA linear with Galvanic Insulation Output
2nd optional output
Output Load Over 1000 Ω
Self-diagnostics Included in readout
Output Ranges Freely configured between 0.01 and 25 %
Alarms 2 Alarms; user adjustable (10 W)
1 Fault Alarm
Display Resolution 0.1 % in standard
Power Supply 110 V (100...120), 50...60 Hz or 220 V (190...240) 50 Hz
Power Consumption 110 VA
Ambient Temperature Range 0...+55 °C (+32...+131 °F)
Sensor Temperature 700 °C (1292 °F)
Operating Humidity 5...90 % rh without condensation
Physical
Dimensions Control: 300 x 300 x 200 mm
Sensor: 290 x 135 x 650 mm
Weight Control unit: 7 kg
Sensor head: 3.5 kg
Probe: 1.5 kg...4.5 kg
Wetted Materials (maximum temperature) 316 L stainless steel: up to +700 °C (1292 °F)
Inconel: up to +1000 °C (1832 °F)
HR160: +600...+1000 °C (1112...1832 °F)*
C 2000: up to +600 °C (1112 °F)*
Halar® coated: up to 120 °C (248 °F)**
Ceramic: up to +1400 °C
Silicon Carbide: 1300 °C (2372 °F)
Probe Lengths 0.4, 0.6 and 0.9 m
Installation Stack and wall mounting
Housing Ingress Protection Sensor head: IP53
Control unit: IP52
*For corrosive environment
**Wet process – for incinerator
