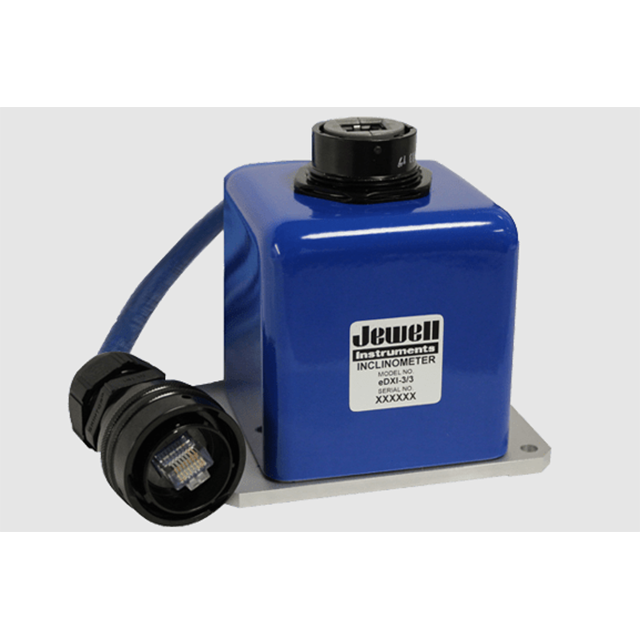

Jewell eDXI-100/200 Single or Dual Axis Digital Inclinometer

Updated:2025-11-08

Brand: Jewell
Model: eDXI-100/200
Description: The Jewell eDXI-100/200 Series is a single or dual digital inclinometer with the convenience of Ethernet output. It offers connectivity via Power over Ethernet (PoE injector required), with Telnet bei
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell eDXI-100/200 Single or Dual Axis Digital Inclinometer Description：

Datasheet Outline Drawing eDXI Quick Start Guide

The Jewell eDXI-100/200 Series is a single or dual digital inclinometer with the convenience of Ethernet output. It offers connectivity via Power over Ethernet (PoE injector required), with Telnet being the standard communication protocol.

Specifications

Input Range (°)	±1.0	±3.0	±14.5	±30.0	±60.0
Non-linearity (%FRO max)²	0.02	0.015	0.02	0.02	0.03
Scale Factor Tolerance (% maximum)	0.1	0.1	0.1	0.1	0.1
Scale Factor Temperature Sensitivity (PPM/°C maximum)	100	100	100	100	100
Output at 0° Tilt (° max)	±0.01	±0.01	±0.05	±0.05	±0.05
0° Output Temperature Sensitivity (°/°C, maximum)	0.005	0.005	0.005	0.005	0.005
Bandwidth (-3dB, Hz, nominal)³	3	6	30	30	30
Transverse Axis Misalignment (° maximum)	0.15	0.15	0.5	0.5	0.5
Resolution & Threshold (° maximum)	0.001	0.001	0.001	0.001	0.001
Power on Repeatability (° maximum)	0.001	0.001	0.001	0.001	0.001
Repeatability (° maximum)	0.001	0.001	0.002	0.002	0.003

Weight	13.8 oz
Dimensions	3.75 × 2.88 × 3.63 in
Features	• Digital output • Resolution 0.001° • Mechanical Shock 1500g 1msec 1/2 sine • Industry Standard Ethernet 10 Base T or 100 Base TX (Auto-sensing) • For use in high shock and vibration environments • PoE (power over Ethernet) • Low Noise
Applications	• Radar/Antenna Control • Structural Monitoring • Linear Acceleration/Deceleration Measuring • Automatic Train Control (ATC, ATP)

Number of Axes	1 or 2
Supply Voltage Range (VDC)	36 to 57
Startup Voltage (VDC, Minimum)	42
Noise (millidegrees rms, maximum)	2
Input Current (mA, maximum)	250
Input to Output Isolation (Vspeak Impulse)	1500

Operating Temperature Range	-40°C to +85°C
Storage Temperature Range	-40°C to +85°C
Vibration (grms)	20
Shock	1500g, 1 msec, ½ sine

Housing Material	Anodized & Alodine Aluminum
Protection Class (per IEC 529)	IP65
NEMA Enclosure Rating	6
Seal	MIL-STD-202, Method 112
Connector Type	Amphenol RJF72B00
Recommended Mating Connector	Amphenol RJF6B

Interface	Ethernet 10Base-T or 100Base-TX (Auto-sensing)
Protocol	TCP/IP, UPD/IP, ARP, Telnet, ICMP, SNMP, DHCP, BOOTP, TFTP, AutoIP, and HTTP
Output Rep	Degrees
