Jewell Model 875 Mini Tuff Tilt

Updated:2026-01-24

Brand: Jewell
Model: Model 875
Description: The model 875 Mini “Tuff Tilt” Tiltmeter combines high precision and durability in a miniaturized and economical instrument package. Using MEMS technology, the 875 delivers superior measurement accura
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell Model 875 Mini Tuff Tilt Description：

A875 Datasheet C875 Datasheet D875 Datasheet Outline Drawing

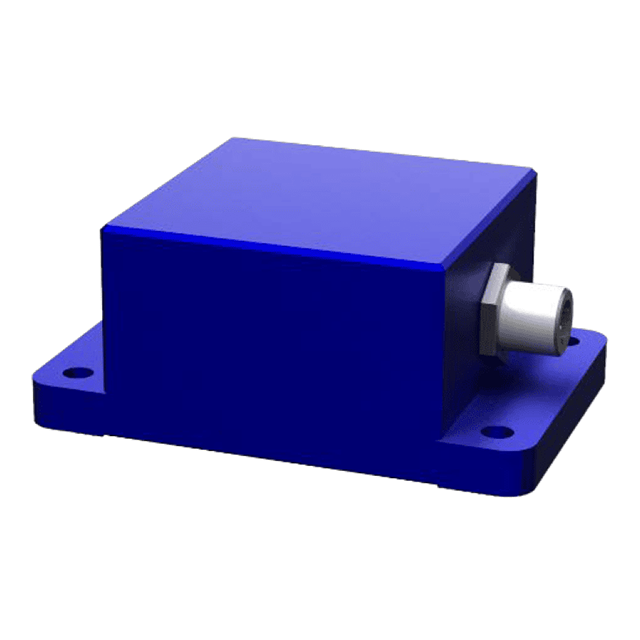

The model 875 Mini “Tuff Tilt” Tiltmeter combines high precision and durability in a miniaturized and economical instrument package. Using MEMS technology, the 875 delivers superior measurement accuracy with virtually no long-term drift and a resolution of 0.05°. Output options include 0.5-4.5Vdc, 4-20mA and digital RS-485. All units are rated IP67 waterproof for advanced protection from the elements. Use the 875 Mini “Tuff Tilt” for structural monitoring, angle measurement, and control, platform leveling, testing and research, OEM, and more.

Specifications

A875: 0.5 - 4.5 VDC

Angular Range (°)	±5	±15	±30
Output Voltage Range (VDC)	0.5-4.5	0.5-4.5	0.5-4.5
FRO Tolerance (% maximum)	±0.30	±0.30	±0.30
Scale Factor (V/°)	0.4000 ±0.0012	0.1333 ±0.0004	0.0667 ±0.0002
Scale Factor Temperature Coefficient (PPM/°C maximum)	±150	±150	±150
0° Output (Volts, maximum @ room temperature)	2.5±0.03	2.5±0.03	2.5±0.03
0° Output Temperature Coefficient (V/°C maximum)	±0.005	±0.005	±0.005
Transverse Axis Misalignment (° maximum)	±1	±1	±1
Resolution (° maximum)	0.05	0.05	0.05
Threshold (° maximum)	0.002	0.002	0.002
Non-linearity (% FRO maximum)	2	2	2
Nonrepeatability (° maximum)	0.002	0.002	0.002
Bandwidth (-3dB, Hz nominal)	<1	<1	<1
Start Up Time (seconds, maximum)	5	5	5
Response Time (seconds, maximum)	0.3	0.3	0.3

Number of Axes	1 or 2
Input Voltage Range (VDC maximum)	9 to 30
Input Current (mA @24V maximum)	15
Output Noise (Vrms maximum)	0.006
Output Impedance (Ω nominal)	10
Operating Temperature Range (°C)	-40 to +85
Storage Temperature Range (°C)	-50 to +105
Shock	500 g, 1 msec, ½ sine
Seal	IP67

C875: 4-20mA

Angular Range (°)	±5	±15	±30
Output Range (mA)	4-20	4-20	4-20
FRO Tolerance (% maximum)	±0.5	±0.5	±0.5
Scale Factor (mA/°)	1.600 ±0.008	0.533 ±0.003	0.267 ±0.002
Scale Factor Temperature Coefficient (PPM/°C maximum)	100	100	100
0° Output (mA, maximum @ room temperature)	12.0 ±0.500	12.0 ±0.500	12.0 ±0.500
0° Output Temperature Coefficient (V/°C maximum)	±0.02	±0.02	±0.02
Transverse Axis Misalignment (° maximum)	±1	±1	±1
Resolution (° maximum)	0.05	0.05	0.05
Relative Accuracy (° maximum)	0.10	0.15	0.27
Non-linearity (% FRO maximum)	2	2	2
Nonrepeatability (° maximum)	0.05	0.05	0.05
Bandwidth (-3dB, Hz nominal)	<1	<1	<1
Start Up Time (seconds, maximum)	2	2	2
Response Time (seconds, maximum)	0.3	0.3	0.3

Number of Axes	1 or 2
Input Voltage Range (VDC maximum)	9 to 30
Input Current (mA @24V maximum)	35
Output Noise (Vrms maximum)	0.03
Operating Temperature Range (°C)	-40 to +85
Storage Temperature Range (°C)	-50 to +105
Shock	500 g, 1 msec, ½ sine
Seal	IP67

D875: Digital

Angular Range (°)	±5	±15	±30
Scale Factor (°/°)	1.00 ±0.005	1.00 ±0.005	1.00 ±0.005
Scale Factor Temperature Coefficient (PPM/°C maximum)	±150	±150	±150
0° Output (Volts, maximum @ room temperature)	±0.300	±0.300	±0.300
0° Output Temperature Coefficient (V/°C maximum)	0.008	0.008	0.008
Transverse Axis Misalignment (° maximum)	±0.50	±0.50	±0.50
Resolution (° maximum)	0.05	0.05	0.05
Relative Accuracy (° maximum)	0.10	0.11	0.21
Non-linearity (% FRO maximum)	0.20	0.20	0.20
Nonrepeatability (° maximum)	0.005	0.005	0.005
Bandwidth (-3dB, Hz nominal)	<1	<1	<1
Start Up Time (seconds, maximum)	5	5	5
Response Time (seconds, maximum)	0.3	0.3	0.3

Number of Axes	1 or 2
Input Voltage Range (VDC maximum)	9 to 30
Input Current (mA @24V maximum)	<20
Output Noise (Vrms maximum)	0.006
Operating Temperature Range (°C)	-40 to +85
Storage Temperature Range (°C)	-50 to +105
Shock	500 g, 1 msec, ½ sine
Seal	IP67

Weight	7.4 oz
Dimensions	1.81 × 2.05 × 1.4 in
Applications	• Platform Leveling/Positioning • Structural Monitoring • Construction Monitoring • Industrial Machinery Positioning • Radial Gate Measurement & Control
