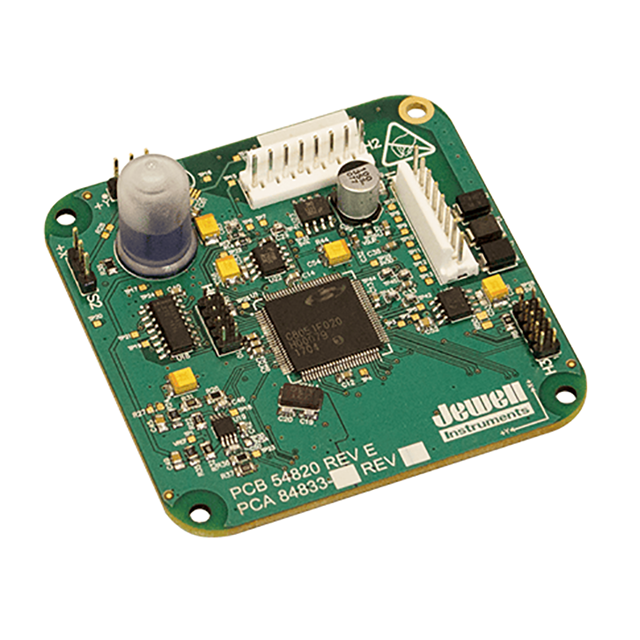

Jewell Model MD908 ‘IRIS’ Tilt Switch

Updated:2026-01-24

Brand: Jewell
Model: Model MD908
Description: The IRIS Tilt Switch and Controller is a powerful tilt controller device that combines a digital, dual-axis clinometer and advanced firmware features in one compact unit. This remarkable instrument en
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell Model MD908 ‘IRIS’ Tilt Switch Description：

Datasheet Outline Drawing User Manual

The IRIS Tilt Switch and Controller is a powerful tilt controller device that combines a digital, dual-axis clinometer and advanced firmware features in one compact unit. This remarkable instrument enables you to measure and respond to rotational movements in any direction concerning the unchanging gravity vector. Units ship standard with a 24-inch hook-up cable. IRIS is an ideal choice for OEM applications, where it can be used to maintain platform levelness, avoid tip-over conditions, prevent out-of-range movement, and perform other control functions.

Specifications

	High-Gain	Standard	Wide-Angle
Angular Range (°)	±10	±25	±50
Resolution (°)	0.002	0.004	0.01
Repeatability (°)	0.01	0.01	0.02
Non-linearity (%)	1	1	1
Output Voltage (V)	RS-232, RS-422 (RS-485 full duplex)
Output Format	NMEA XDR, Trimble TCM, BAE, Ashtec compatible, Simple (default: X, Y, Temperature, S/N)
Temperature Output	On-board temperature sensor
Sample Rates	10 samples/second to 1 sample/24 hours
Baud Rate	9600 (default), 19200, 28800, 57600, 115200, 230400
Data Format	NMEA XDR, Trimble proprietary, Ashtech compatible, Simple (x, y, temperature, serial number)
Channels	X-tilt, Y-tilt, Temperature, Serial No.
Tilt Switch Controls	8 TTL-compatible CMOS control outputs (0-5 VDC); 20mA source Power per channel (not to exceed 100mA across all 8 channels)
Kz Coefficient (°/C, typical)	10 arcsec
Ks Coefficient (%/C, typical)	0.03
Time Constant (seconds)	0.15
Natural Frequency (Hz)	7
Input Voltage (Hz)	7-28 VDC, 250mV ripple max
Input Current (Hz)	27-30mA for RS-232 output 48-51mA for RS422/485 output Current draw over the whole operating temperature range If the H3 header outputs are used, this may draw up to an additional 20 to 100mA
Protection	Reverse polarity & surge protection
Power	7-28 VDC, 250 mV ripple max, reverse polarity protected
Environmental	-40 to +85°C operation and storage. 100% humidity, IP65
Connections	Three 60cm (2 ft) cables included: Signal (H1), Power (H2), Control Outputs (H3)
Materials	Glass electrolytic sensor, fiberglass PCB

Weight	1.1 oz
Dimensions	2.6 × 2.6 × 1 in
Applications	• 5 user-programmable thresholds • TTL-compatible CMOS outputs (0-5VDC) • RS-232 or RS-422 (RS-485 full-duplex) output • Measures rotational movement in two orthogonal vertical planes • Output data formats for X-tilt, Y-tilt, temperature, and serial number • Sensitive to <0.002° • User-programmable settings include: AUTO-zero (tare), sample averaging, and hysteresis control
