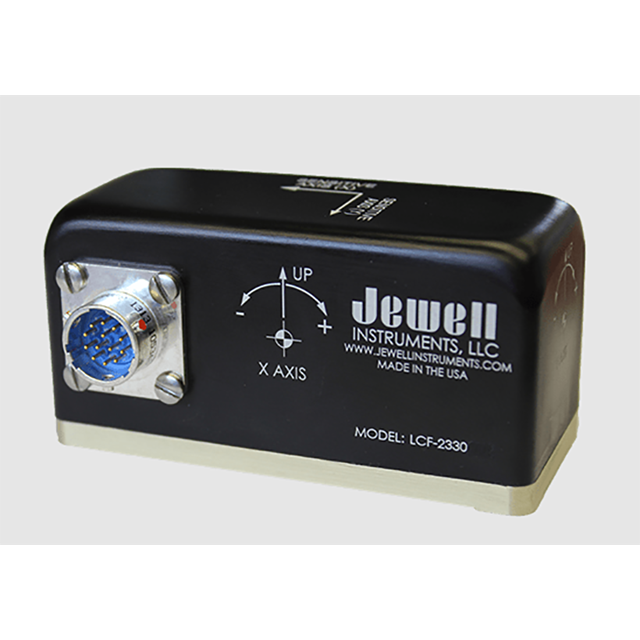

Jewell LCF-2330 Dual-Axis Analog Inclinometer

Updated:2025-11-08

Brand: Jewell
Model: LCF-2330
Description: The Jewell LCF-2330 Series Inclinometer is a dual axis version of the rugged, high accuracy LCF Series. The design of the LCF-2330 was optimized to provide the high accuracy and superior repeatabilit
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell LCF-2330 Dual-Axis Analog Inclinometer Description：

Datasheet LCF-2330C Outline Drawing LCF-2330P Outline Drawing LCF-2330 Flanged Base Outline Drawing

The Jewell LCF-2330 Series Inclinometer is a dual axis version of the rugged, high accuracy LCF Series. The design of the LCF-2330 was optimized to provide the high accuracy and superior repeatability of Jewell’s rugged, fluid damped, flexure suspension, servo technology in a small and convenient package for applications requiring a compact dual axis solution. With many options to choose from, including a flange base, metric threads, and temperature sensor, this product can be customized to suit your individual needs.

Specifications:LCF-2330: ±5V Output

Input Range (°)	±3.0	±5.0	±14.5	±30.0	±90.0
Full Range Output (VDC, FRO ±5%)¹	±5	±5	±5	±5	±5
Non-linearity (%FRO max)²	0.05	0.05	0.02	0.02	0.05
Scale Factor (Volts/g, nominal)	286.5	95.54	20.0	10.0	5.0
Scale Factor Temperature Sensitivity (PPM/°C maximum)	200	100	100	100	100
Bandwidth (-3dB, Hz, nominal)	3.0	3.0	30.0	30.0	30.0
Transverse Axis Misalignment (° maximum)	0.25	0.50	0.50	0.50	0.50
0° Output (Volts Range)	±0.75	±0.25	±0.075	±0.05	±0.05
0° Output Temperature Sensitivity (Volts/°C maximum)	0.015	0.005	0.001	0.0005	0.0003
Resolution & Threshold (µ)³	1	1	1	1	1

Number of Axes	2
Input Voltage Range (VDC)	±12 to ±18
Input Current (mA, maximum)	30
Noise (Vrms, maximum)	0.002
Output Impedance (Ω, nominal)	100

Operating Temperature Range	-40°C to +80°C
Storage Temperature Range	-60°C to +90°C
Vibration	20 grms
Shock	1000g, 1 msec, ½ sine
Seal	IP65

Specifications:LCF-2330-LC: 4-20mA Output

Input Range (°)	±1.0	±3.0	±14.5	±30.0	±90.0
Full Range Output (mA ±1%)¹	4-20	4-20	4-20	4-20	4-20
Non-linearity (%FRO max)²	0.05	0.05	0.02	0.03	0.04
Scale Factor (mA/g, nominal)	458.4	152.9	31.95	16.0	8.0
Scale Factor Temperature Sensitivity (PPM/°C maximum)	300	300	100	100	100
Bandwidth (-3dB, Hz, nominal)	0.5	2	15	20	30
Transverse Axis Misalignment (° maximum)	±0.50	±0.50	±0.50	±0.50	±0.50
0° Output (mA)	12 ±0.6	12 ±0.6	12 ±0.3	12 ±0.3	12 ±0.3
0° Output Temperature Sensitivity (Volts/°C maximum)	0.024	0.009	0.002	0.001	0.001
Resolution & Threshold (µ)³	1	1	1	1	1

Number of Axes	2
Input Voltage Range (VDC)	20 to 30
Input Current (mA, maximum)	90
Noise (Vrms, maximum)	0.01

Operating Temperature Range	-40°C to +80°C
Survival Temperature Range	-60°C to +90°C
Vibration	20 grms
Shock	1000g, 1 msec, ½ sine
Seal	IP65

Weight	10 oz
Dimensions	2.03 × 3.63 × 2.1 in
Features	• ±1° to ±90° Input Full Range • Micro Radian Resolution • Available Internal Temp Sensor • ± 5 Vdc Output, 4-20mA Output, or 0-5V Output • Superior 0° Output Stability Over Temperature • RoHS Compliance Available
Applications	• Radar & Antenna Leveling • Weapons Platform Leveling • Barge and Offshore Platform Control • Deviation Surveys • 2-Axis Machine Tool Leveling • Bridge Structural Monitoring • Submersible Control Feedback • Offshore Platform Stability • Production/Manufacturing Process • Equipment for Aerospace Industry
