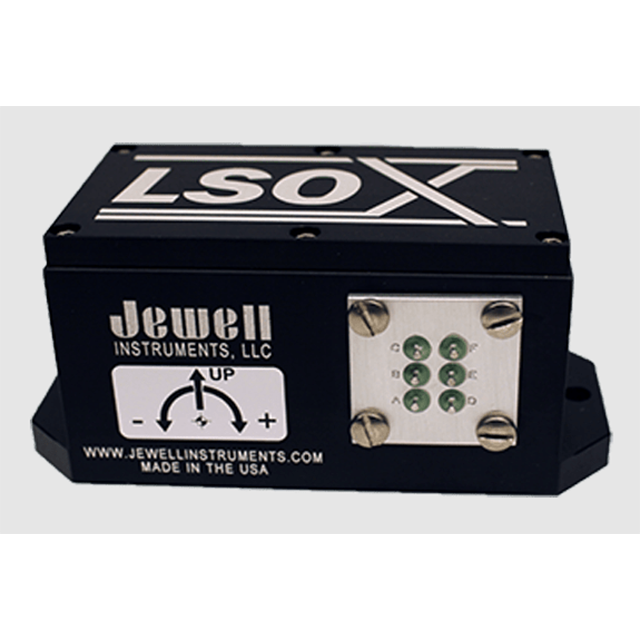

Jewell LSOX Single-Axis Analog Inclinometer

Updated:2025-11-09

Brand: Jewell
Model: LSOX
Description: The Jewell LSOX Single-Axis Analog Inclinometer series are a rugged, high precision tilt sensor designed for peak performance in extreme conditions. These RoHS compliant sensors feature a fluid damped
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Jewell LSOX Single-Axis Analog Inclinometer Description：

Datasheet LSOX-P Outline Drawing LSOX-C Outline Drawing LSOX-W Outline Drawing

The Jewell LSOX Single-Axis Analog Inclinometer series are a rugged, high precision tilt sensor designed for peak performance in extreme conditions. These RoHS compliant sensors feature a fluid damped mechanism to deliver superior noise rejection in high shock and vibration environments as well as excellent output stability. Units are available with a 6-pin connector, pin-terminals, or flying leads and in three different output versions (D, L, & S). LSOX-S is available with CE Certification.

Specifications：LSOX-D: ±5V Output

Input Range (°)	±1.0	±3.0	±14.5	±30.0	±60.0	±90.0
Full Range Output (VDC ±0.5%)¹	0-5	0-5	0-5	0-5	0-5	0-5
Non-linearity (%FRO max)²	0.05	0.02	0.02	0.02	0.02	0.05
Scale Factor (Volts/g, nominal)	143.2	47.8	10.0	5.0	2.9	2.5
Scale Factor Temperature Sensitivity (PPM/°C maximum)	350	300	100	60	60	60
Bandwidth (-3dB, Hz, nominal)	0.5	2	15	20	30	30
Transverse Axis Misalignment (° maximum)	±0.25	±0.25	±0.50	±0.50	±0.50	±0.50
0° Output (VDC nominal)	±0.10	±0.04	±0.02	±0.02	±0.02	±0.02
0° Output Temperature Sensitivity (Volts/°C maximum)	0.0015	0.005	0.001	0.0005	0.0004	0.0003
Resolution & Threshold (µ)³	1	1	1	1	1	1

Number of Axes	1
Input Voltage Range (VDC)	±20 to ±30
Noise (Vrms, maximum)	0.002
Input Current (mA, maximum)	40

Operating Temperature Range	-40°C to +80°C
Storage Temperature Range	-60°C to +90°C
Shock	1500g, 0.5 msec, ½ sine
Seal	IP66

LSOX-L: 4-20mA Output

Input Range (°)	±1.0	±3.0	±14.5	±30.0	±60.0	±90.0
Full Range Output (mA ±1%)¹	4-20	4-20	4-20	4-20	4-20	4-20
Non-linearity (%FRO max)²	0.05	0.03	0.03	0.03	0.03	0.05
Scale Factor (mA/g, nominal)	458.4	152.9	32.0	16.0	9.2	8.0
Scale Factor Temperature Sensitivity (PPM/°C maximum)	350	300	100	60	60	60
Bandwidth (-3dB, Hz, nominal)	0.5	2	15	20	30	30
Transverse Axis Misalignment (° maximum)	±0.25	±0.25	±0.50	±0.50	±0.50	±0.50
0° Output (mA)	12 ±0.6	12 ±0.6	12 ±0.3	12 ±0.3	12 ±0.3	12 ±0.3
0° Output Temperature Sensitivity (Volts/°C maximum)	0.024	0.01	0.002	0.001	0.001	0.0008
Resolution & Threshold (µ)³	1	1	1	1	1	1

Number of Axes	1
Input Voltage Range (VDC)	20 to 30
Noise (Vrms, maximum)	0.002
Input Current (mA, maximum)	40

Operating Temperature Range	-40°C to +80°C
Storage Temperature Range	-60°C to +90°C
Shock	1500g, 0.5 msec, ½ sine
Seal	IP66

LSOX-S: 0-5V Output

Input Range (°)	±1.0	±3.0	±14.5	±30.0	±60.0	±90.0
Full Range Output (VDC ±0.5%)¹	0-5	0-5	0-5	0-5	0-5	0-5
Non-linearity (%FRO max)²	0.05	0.02	0.02	0.02	0.02	0.05
Scale Factor (Volts/g, nominal)	143.2	47.8	10.0	5.0	2.9	2.5
Scale Factor Temperature Sensitivity (PPM/°C maximum)	350	300	100	60	60	60
Bandwidth (-3dB, Hz, nominal)	0.5	2	15	20	30	30
Transverse Axis Misalignment (° maximum)	±0.25	±0.25	±0.50	±0.50	±0.50	±0.50
0° Output (VDC nominal)	±0.10	±0.04	±0.02	±0.02	±0.02	±0.02
0° Output Temperature Sensitivity (Volts/°C maximum)	0.0015	0.005	0.001	0.0005	0.0004	0.0003
Resolution & Threshold (µ)³	1	1	1	1	1	1

Number of Axes	1
Input Voltage Range (VDC)	+9 to +18
Noise (Vrms, maximum)	0.002
Input Current (mA, maximum)	40
Output Impedance (Ω, nominal)	1

Operating Temperature Range	-55°C to +85°C
Storage Temperature Range	-60°C to +90°C
Shock	500g, 1 msec, ½ sine
Seal	IP65

Weight	13 oz
Dimensions	3.64 × 1.60 × 1.68 in
Features	• Extremely Rugged • High Accuracy • Temperature Compensation Available • ±5V DC, 0-5V DC, and 4-20mA Outputs Available • Variable Inputs Available • RoHS Compliant
Applications	• High-precision Geotech • Oil and Gas, Riser Tilt Monitoring • Railroad MOW Equipment • Pavement Profiling Rigs • Vehicle Wheel Alignment • Robotics
