SH-10 Spring-Loaded Laser Shutter

SH-10 Spring-Loaded Laser Shutter Description:

SH-10 Datasheet SH-10 CAD Drawings SH-10 Ways To Activate

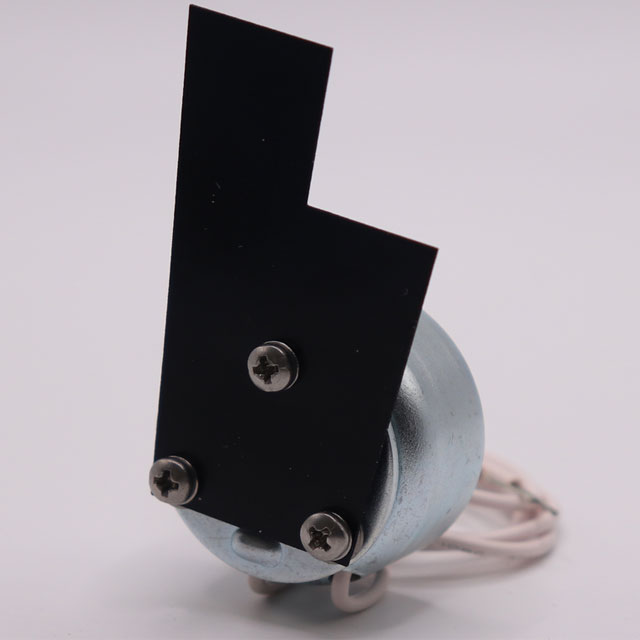

Our low-cost SH-10 laser interlock shutter is designed to safeguard users from low to moderate power laser beams. This shutter features a blade mounted on a rotary solenoid, offering controlled beam passage. When powered, the blade shifts to the open position, allowing the laser beam to pass through. In the absence of electric current or when powered off, the return spring quickly moves the blade to the closed position, effectively blocking the laser beam.

Features and Advantages:

Product Options:

-5:5V shutter operating voltage (not compatible with DSH-10 driver).

-12：12V shutter operating voltage (not compatible with DSH-10 driver).

-15：15V shutter operating voltage (not compatible with DSH-10 driver).

-24：24V shutter operating voltage (compatible with DSH-10 driver).

-M：(Mount) Shutter comes with a mount for horizontal and vertical mounting.

-MP：(Mount Plate) Shutter includes a mounting plate for horizontal and vertical mounting directly to an optical table.

-B：(Box) Shutter is enclosed in a black anodized box.

-DM：(Deflective Mirror) When power is turned off the mirror for high power laser beam, epoxied on the blade of the shutter, deflects the laser beam.

-BD：(Beam Dump) Shutter is boxed with a deflection mirror for absorbing laser power up to 100 mW. When power is turned off, a mirror epoxied on the shutter blade deflects the laser beam into the integrated beam dump.

-BD-5W：(Beam Dump 5W) Shutter is boxed with integrated beam dump for laser power up to 5 watts.

-BD-10W：(Beam Dump 10W) Shutter is boxed with integrated beam dump for laser power up to 10 watts.

-PI：(Position Indicator) Shutter includes magnetic switches (sensors) to indicate the position of the blade (open or closed). Can be specified for all -MP and boxed models.

-L：(Long-life) Long-life (50 million cycles minimum). Can be specified for all models.

-BARE：Shutter blade is bare aluminum.

Key Specifications:

Blade Options:

Additional Information:

Types of Shutters:

Mounting Options:

Ordering Information:

For SH-10 shutter:：

For Laser (Source) Information：

For DSH-10 Drivers：

Example 1: PART NO. SH-10-MP-L-TANT with DSH-10-110-BNC. This part number specifies the model SH-10 shutter, long life (50 million cycles minimum), with a tantalum blade and with mounting holes that fit an optical table and with a cased driver 5.3" x 5.3" x 2" operating from a line voltage of 110Vac with a BNC connector for TTL input.

Example 2: PART NO. SH-10-B-12. This part number specifies the model SH-10 shutter, boxed with a cutout for laser light and 12V operating voltage.

Example 3: PART NO. SH-10-PI-B-L-24-REF. This part number specifies the model SH-10-PI shutter with a position indicator, boxed with a cutout for laser light, 24V operating voltage, with a reflective blade (polished Nickel plating) and long life operation (50 million cycles minimum).

Example 4: PART NO. SH-10-BD5W-12-L-PI-mirror for 980nm shutter with DSH-10-110-BNC driver. This part number specifies the model SH-10-BD5W, a boxed shutter with a cutout for laser light, that has an integrated beam dump (heat sink) to withstand power up to 5 watts. Position indicators reveal the position of the mirror. 12V operating voltage and long life operation 50 million cycles minimum. The mirror is coated for the wavelength of 980nm. The driver is a cased driver 5.3" x 5.3" x 2", operating from a line voltage of 110Vac, with a BNC connector for TTL input.
