150W-SH 771001 Thermal Power/Energy Laser Measurement Sensor

Updated:2023-06-02

Brand：Ophir
Model：150W-SH
Description: The 150W-SH is a water cooled thermal power/energy laser measurement sensor with mounting threads and with an 18mm aperture. It can measure from 60mW to 150W when water cooled. It can measure energy f
Data download

Feedback
WeChat

QQ

Online Service

Product Details

150W-SH 771001 Thermal Power/Energy Laser Measurement Sensor Description：

The 150W-SH is a water cooled thermal power/energy laser measurement sensor with mounting threads and with an 18mm aperture. It can measure from 60mW to 150W when water cooled. It can measure energy from 20mJ to 100J. It has the spectrally flat broadband coating covering the spectral range from 0.19 to 20µm.

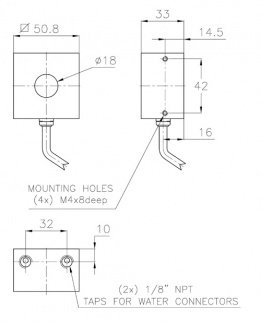

150W-SH 771001 Thermal Power/Energy Laser Measurement Sensor Drawing：

150W-SH Drawing

150W-SH 771001 Thermal Power/Energy Laser Measurement Sensor Specifications：

Aperture	Ø18mm
Spectral Range	0.19-20µm
Power Range	100mW-150W
Energy Range	50mJ-100J
Dimensions	51 L x 51 W x 33 D (mm)
Max Average Power Density	12kW/cm² at 150W
Response Time	1.2 s
Max Energy Density(for <100ns)	0.3J/cm²
Max Energy Density(for 2ms)	10J/cm²
Max Average Power	150W water cooled free standing
Communication	N.A.
