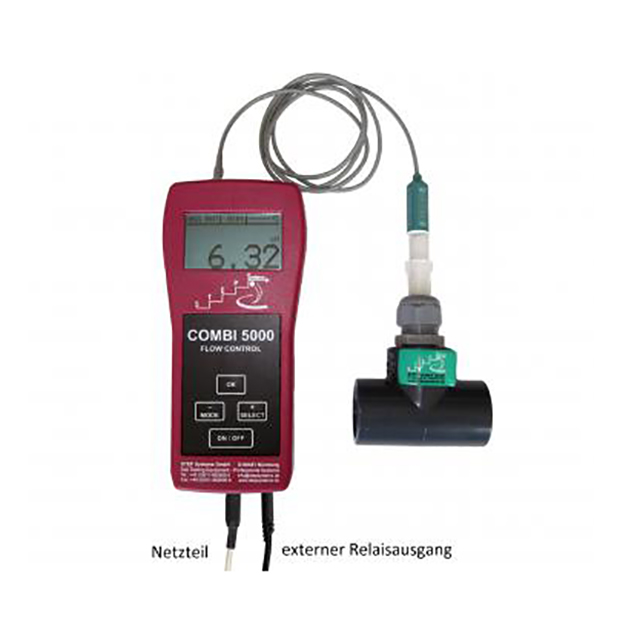

pH Flow Control 5000 with relay output

pH Flow Control 5000 with relay output Description：

operation manual

The pH-Flow Control 5000 is a robust measuring device for continuous pH measurement in the flow. The device was developed based on the latest microprocessor technology from STEP Systems and is manufactured entirely in Germany.

Thanks to the automatic sensor and buffer recognition, incorrect conditions and incorrect information are virtually impossible - the security of the correct application has been perfected. Inverse display of measured values when the individually adjustable limit values are exceeded or fallen below ensures timely intervention in the event of malfunctions. The risk of over-fertilization or under-supply of plants due to incorrectly adjusted fertilizer mixture systems is minimized.

With the help of an additional relay card with an integrated output, external warning devices such as bells, flashing lights, etc. can be connected; alternatively, a corresponding switching function can be carried out.

The hanging loop for wall mounting allows for quick and easy installation. With the installation kit, the electrodes can be inserted and removed again directly into the line system or via a bypass without much effort (e.g. during calibration or electrode replacement).

Menu languages: German, English.

Scope of delivery:

pH Flow Control 5000 basic device

pH flow electrode

Buffer solutions pH 4 and pH 7 (100 ml each)

Installation kit

9V battery

Power supply with cable 160 cm

Manual

Technical data

Measuring range: 0 -14 рН

Resolution: 0.01 рН

Accuracy: ± 0.02 рН

Calibration: automatic, possible at рН 4, pH 7or pH 10

Electrode: pH puncture gel electrode, BNC socket, cable length 110 cm

Max. pressure: 5 bar

Alarm: 2 x relay output, Ø 3.5 mm, max. 50 Vac / 1А and visual inverse graphic display

Alarm delay: adjustable time delay of 0─255 s after exceeding/falling below the limit values

Power requirement: 9 V with external power supply (for continuous operation) or 9 V with block battery > 3,000 measurements (for short-term operation)

Size: 83 x 180 x 55 mm

Weight: 300 g (basic device)
