ACL-800 Digital Megohmmeter (ACL)

ACL-800 Digital Megohmmeter (ACL) Description：

User's Manual Datasheet

The ACL 800 Digital Megohmmeter is a dependable and easy-touse audit kit that is designed to test static dissipative surfaces for resistance according to industry standards. Point-to-point (RTT) and resistance-to-ground (RTG) tests are easy to perform with the powder-coated and calibrated five-pound electrodes. The installed conductive rails make spot-checking convenient.

Unlike analog meters with LEDs, test results are shown in precise actual numeric value rather than decade value in logarithmic scale. Since ambient conditions can affect resistivity, the ACL 800 measures resistivity, temperature, and humidity with the push of one button, making recording easy.

This meter is suitable to use in all facets of material production, including engineering, maintenance, quality control, incoming inspection, manufacturing, research, and sales. It is ideal for the testing of anti-static mats, floor finishes, paints, wrist straps, smocks, foot wear, bags and containers.

Meter is warranted for one year from the date of purchase on parts and labor. Calibration is recommended every twelve months.

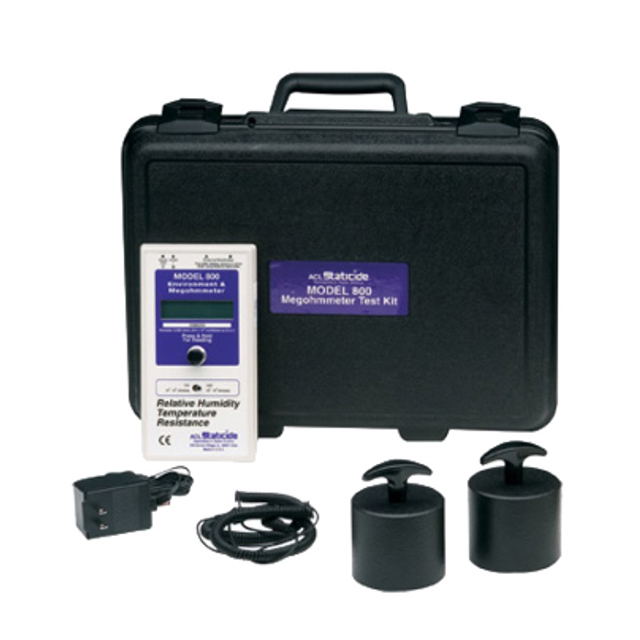

Includes two 5lb test probes and connection cables

Measures resistance, resistivity, humidity, and temperature

Measurement range for 10v resistance is from 10³ to 10 ⁶

Measurement range for 100v resistance is from 10⁶ to 10¹²

Accuracy ±10% at 103 - 10⁸
