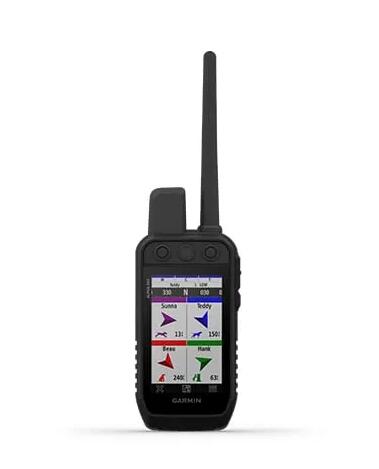

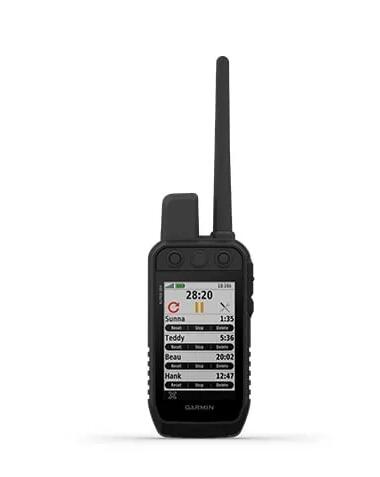

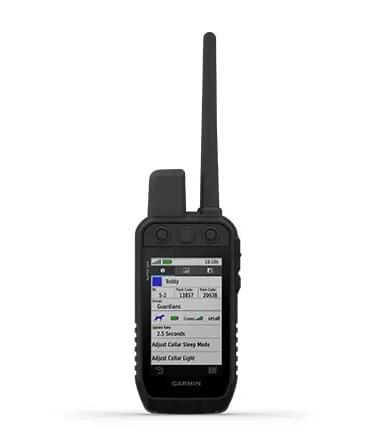

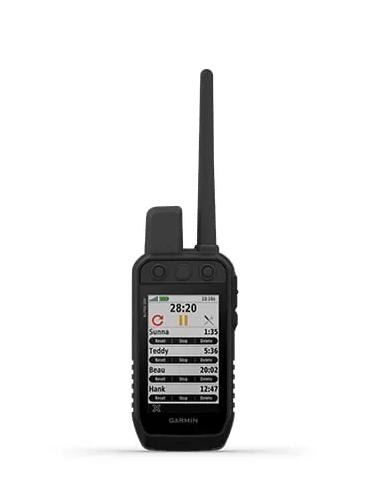

Alpha 200 Handheld GPS Navigator

Updated:2024-02-01

Views:1003

  • Brand: Garmin
  • Model: Alpha 200
  • Description: Track and train your dogs with the Alpha 200 handheld, featuring a sunlight-readable 3.5” capacitive touchscreen and user-friendly six-button design.
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Alpha 200 Handheld GPS Navigator Description:

Product Manual

Track and train your dogs with the Alpha 200 handheld, featuring a sunlight-readable 3.5” capacitive touchscreen and user-friendly six-button design.

This handheld is designed to help make tracking and training simple, accessible and fast.

Track and train your pack while they’re out in the field.

Keep inactive dogs in the system for easier setup and management.

Navigate every hunt with the best in Garmin mapping and sensors.

User-replaceable battery lasts up to 20 hours.

FEATURES

TRACK YOUR PACK

Monitor up to 20 dogs with your compatible dog collars from up to 9 miles with a 2.5-second update rate.

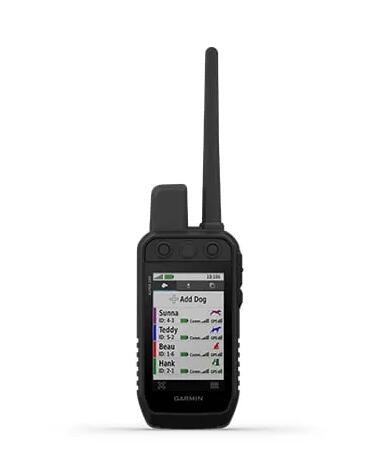

DOG LIST/GROUP MANAGEMENT

Keep inactive dogs in your dog list, and manage active groups so you don’t have to add and remove dogs for every hunt.

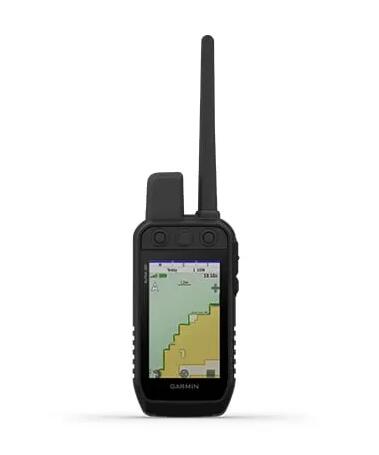

PUBLIC LAND BOUNDARIES

Optional display of public land boundaries on topographical maps helps you know that you’re venturing where you’re supposed to be.

HUNT METRICS

See each dog’s daily hunting patterns, distance and speed so you can monitor performance and help prevent overheating. Pair with your compatible Garmin dog collars (sold separately).

SIX-BUTTON DESIGN

Use dedicated buttons for fast training cues and minor adjustments in the field.

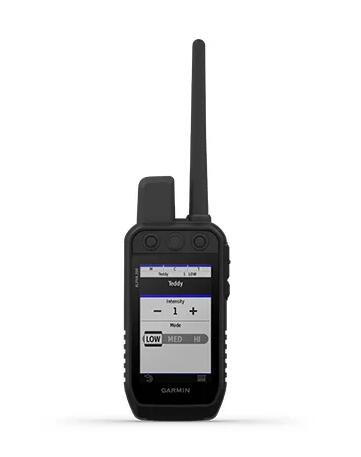

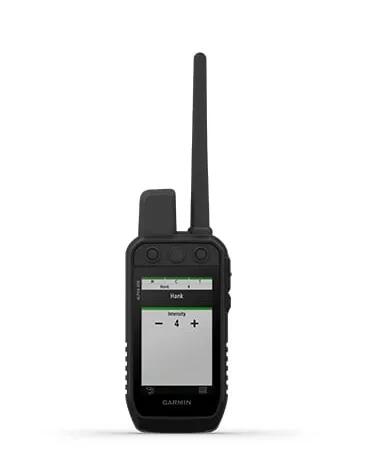

18 LEVELS OF STIMULATION

Momentary and continuous stimulation options let you customize training for each dog when used with a compatible training enabled collar.

TONE/VIBRATION

Issue different levels of audible tone or vibration commands for quick adjustments to individual dogs when used with a compatible training enabled collar.

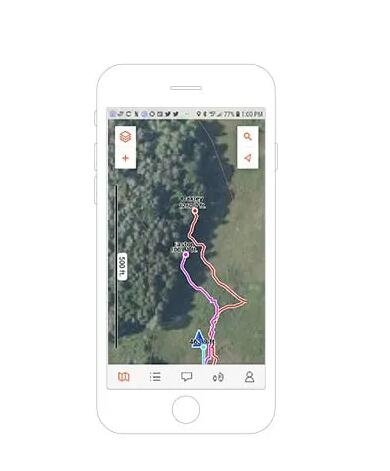

GARMIN EXPLORE™ APP

Pair with the Garmin Explore smart-device app to see real-time dog tracking information, save collections of dog tracks and replay tracks to see exactly what happened during your hunt.

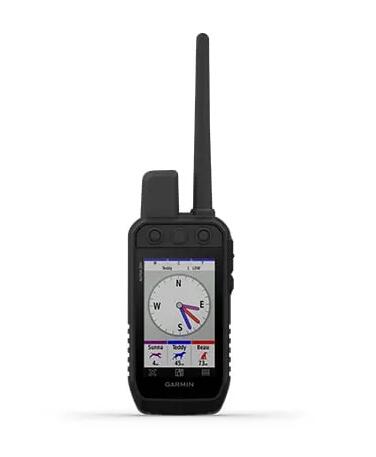

PRO VIEW COMPASS

The pro view compass mode gives you simple, at-a-glance tracking that shows which direction and how far away your dogs are, plus you will see when a dog is “Treed” or “OnPoint.”

MULTI-GNSS SUPPORT

Access multiple global navigation satellite systems (GPS and Galileo) to track your pack with greater accuracy than GPS alone.

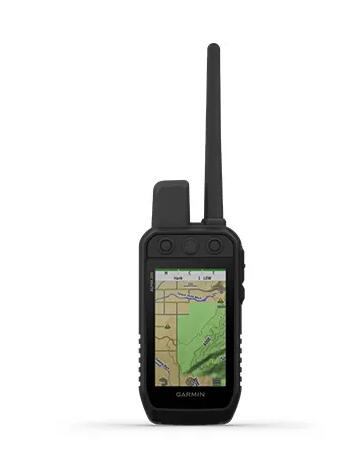

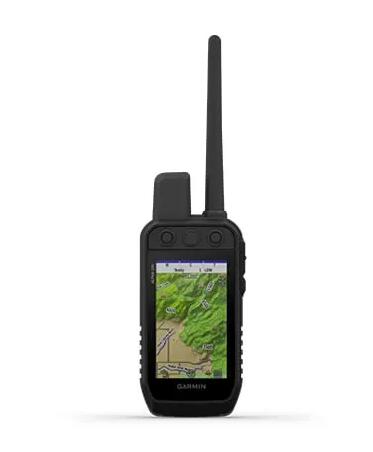

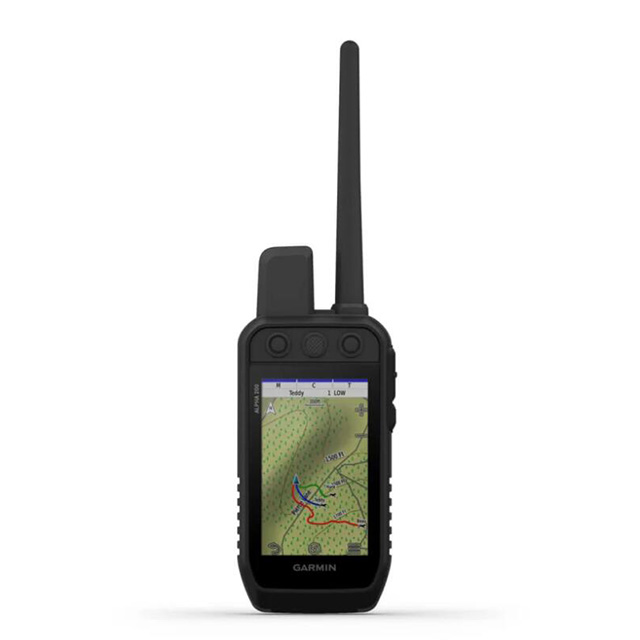

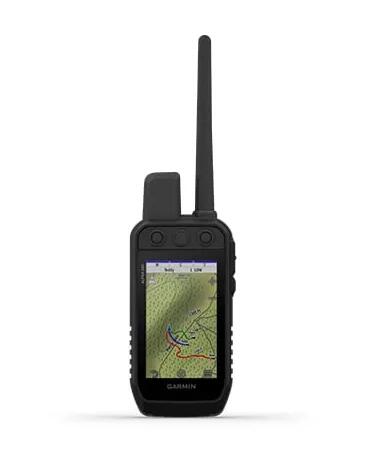

TOPOACTIVE MAPS

Our preloaded TopoActive mapping provides detailed views of terrain contours, topographic elevations, summits, parks, coastlines, rivers, lakes and geographical points.

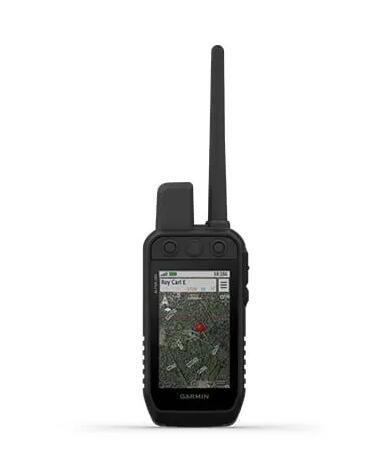

BIRDSEYE DIRECT

Download BirdsEye Satellite Imagery directly to the handheld via Wi-Fi® connectivity for better-than-real-life views of your route, trailheads, clearings and more.

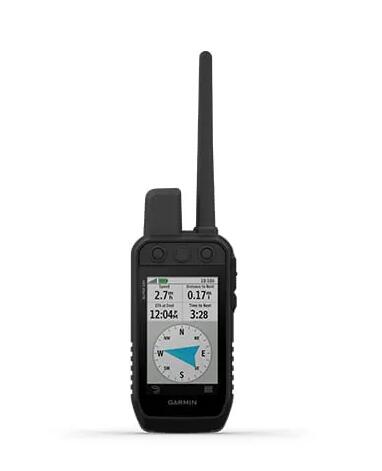

NAVIGATION SENSORS

A barometric altimeter helps you accurately monitor ascent and descent and see short-term trends in air pressure, and the built-in tilt-compensated 3-axis electronic compass keeps your bearing — whether you’re moving or not.

SEE IT ALL

The sunlight-readable 3.5” capacitive touchscreen display makes it easy to see and interact with your maps, dog data and more — even while wearing gloves.

STAY ON THE MOVE

The replaceable battery lasts up to 20 hours, giving you plenty of hunt time with your dogs in the field.

ADDITIONAL MAPPING

The microSD™ card slot allows you to load more mapping options, such as TOPO U.S. 24K and HuntView maps (each sold separately).

IN-VEHICLE TRACKING

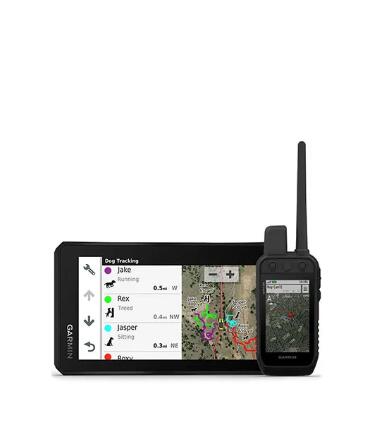

If you’re using a vehicle to follow and retrieve your dogs, the rugged Tread® off-road powersport navigator or Garmin DriveTrack™ 71 car navigator (each sold separately) provide an easy-to-watch “big picture” solution. The moving map display shows dog positions overlaid on TOPO contours or satellite image views — along with navigation cues that help point you to your dog’s current location.

General

Dimension 2.7 x 6.4 x 1.3” (6.8 x 16.2 x 3.4 cm) *dimensions do not include antenna
Weight 9.9 oz (280 g) with standard antenna and battery
Waterproof IPX7
Touchscreen
Display Type transflective, color TFT touchscreen
Display Size 1.8" W x 3.0" H (4.7 x 7.7 cm); 3.5" diag (88.9 mm)
Display resolution 282 x 470 pixels
Battery type rechargeable lithium-ion (included)
Battery life up to 20 hours
Memory/History 16 GB
Interface high-speed USB

Maps & Memory

Preloaded maps yes (TopoActive)
Ability to add maps
Basemap
Automatic routing (turn by turn routing on roads) for outdoor activities Yes (with optional mapping for detailed roads)
Satellite Imagery yes, direct to device (no annual subscription required)
External memory storage microSD card (not included)
Waypoints/favorites/locations 10000
Tracks up to 20 dogs (TT and T series collars) and buddies (Alpha 100 and Alpha 200) simultaneously
Navigation Track Log 20,000 points, 200 saved gpx tracks, 300 saved fit activities
Navigation Routes 250
Stored contacts 250 dogs
Group management

Sensors

Barometric altimeter
Compass Yes (tilt-compensated 3-axis)
High-sensitivity receiver

Outdoor Recreation

Sun and moon information
Custom maps compatible

Radio Features

Frequency band MURS
Range TT and T series, 9 miles; TT mini and T mini series, 4 miles

Outdoor Applications

Compatible with Garmin Explore app
Garmin Explore website compatible

Connections

Connections Wireless Connectivity yes (Wi-Fi®, BLUETOOTH® and ANT+®)

Security Information

Security updates until at least (YYYY-MM-DD) 2024-01-21
