BLS-Series High-Current LED Drivers with Manual & Analog-Input Controls and Tool-free Connectors

BLS-Series High-Current LED Drivers with Manual & Analog-Input Controls and Tool-free Connectors Description：

Datasheet

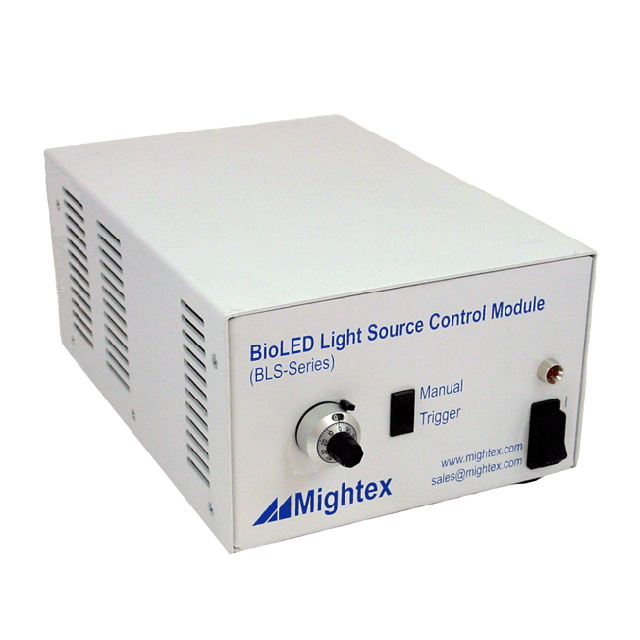

Mightex BLS-13000-1E and BLS-18000-1 LED controllers are designed for driving Mightex Type-H Super High Power LED Sources. The controllers have two operation modes:

Manual Mode: the output current can be controlled by manually turning the knobs;

Trigger Mode: the output current can be controlled via an external analog input signal between 0-5V.

High Current, manual and analog-voltage controlled LED drivers for Mightex Type-H Super High Power LEDs:

BLS-13000-1E: Up to 13A current output and 3kHz modulation speed. One (1) channel.

BLS-18000-1: Up to 18A current output and 3kHz modulation speed. One (1) channel.

The control mode is selected with a slide switch on the front panel, and the factory default is “Manual” mode. BLS-13000-1E and BLS-18000-1 have a maximum current setting of 13,000mA and 18,000mA, respectively.When the controller is set to “Trigger” mode, the output current is fully controlled by the input analog signal (0-5V).

Features

Dual Control Modes: manual or analog voltage-input controlled

High output current – up to 18A

BNC connectors for analog voltage inputs

Simple, tool-free connections

Capable of driving variable loads

Applications

Optogenetics

Fluorescence excitation

Microscopy

Testing instruments

Medical instruments

Specifications

Note: *Spec for legacy support. BLS-13000-1 has been discontinued and replaced by BLS-13000-1E;
