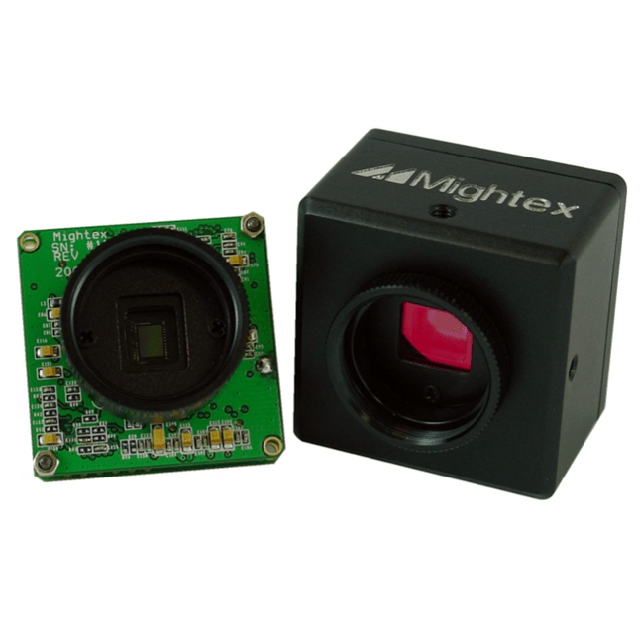

Compact USB2.0 Color 8/12bit 1.3MP 1/3″ CCD Camera with Frame Buffers Description：

Datasheet

Mightex USB2.0 CCD cameras with frame buffers are optimized for machine-vision applications, and they can be also used for a wide variety of applications (such as industrial inspections, digital microscopy and medical imaging) which require good quality cameras that are easy to use and cost-effective. These cameras have built-in frame buffers, external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. Frame rate can be as high as 20 fps in full resolution and up to 84 fps using ROI mode. A user-friendly GUI based application software and an SDK are provided for custom software development. In addition, a DirectShow driver and a TWAIN driver are available to easily link the cameras with users’ applications. A USB command set protocol and a Linux driver are also provided for non-Windows based applications.

Features:

Ultra compact

High sensitivity, low noise

Built-in frame buffer (24 frames at full resolution)

Support simultaneous image capturing from multiple cameras

4-pin GPIOs

1280×960 active imaging pixels

High-speed USB2.0 (480Mb/s)

Digital output, no need for frame grabber

Custom programmable with SDK provided

DirectShow, TWAIN and Linux drivers

USB command set protocol for non-Windows-based applications

External and software trigger

Strobe output for external flash

ROI & pixel skipping/binning

No need for external power supply

OEM versions available

Applications:

Machine vision and stereo vision

Medical imaging

Semiconductor equipment

Test instruments

High-quality ID photo capture

Document scanners

Digital microscopy

2D barcode readers

Web camera and security video

Specifications

Parameters	CGN-C013-U	CGE-C013-U	Unit
Board-Level/Enclosed	Board-Level	Enclosed
Number of GPIOs	4	4
Resolution	1,280 x 960 Color
Image Sensor Chip	1/3" Sony ICX445AK, Global Shutter
Bit	8 or 12		bit
Pixel Size	3.75 x 3.75		μm
Active Imager Size	6.26 x 5.01		mm
Scanning System	Progressive
On-Board Memory	32		MB
Frame Rates* (@32MHz Clock)	20 @1280 x 960, 38 @640 x 480 (2x2 Bin), 53 @424 x 320 (3x3 Bin), 66 @320 x 240 (4x4 Bin), 66 @320 x 240 (4x4 Bin2)		fps
Sub Resolutions	640 x 480(2x2 Bin), 424 x 320(3x3 Bin), 320 x 240(4x4 Bin), 320 x 240 (1:4 Bin2)**
Shutter Speed (Exposure Time)	0.05 ~ 200,000		ms
Hardware Gains	6 ~ 41		dB
Trigger Mode	With external trigger
Trigger Cable	ACC-CAM-CON8
Trigger Delay	< 25		μs
Strobe Out	Yes
Lens Mount	C– mount or CS-mount (M12.5-mount or custom-defined lens mount supported)
Built-in Filters	IR-cut (standard), or IR-pass, or No filter
Power Consumption	< 1.8		W
Dimension	40 x 40 x 31 (CS-mount) 40 x 40 x 36 (C-mount)	45 x 45 x 30.5 (CS-mount) 45 x 45 x 35.5 (C-mount)	mm
Weight (excluding lens)	29	115	g

*. The actual achievable frame rate depends on exposure time, as well as resources available from the PC system.
** In the sub-resolution mode, the color information is ignored, and hence the images become monochromic.
