Compact USB2.0 Monochrome 8/12bit 1.3MP 1/3″ CCD Camera with Frame Buffers

Updated:2024-03-18

Brand: Mightex
Model: CGN-B013-U, CGE-B013-U
Product description: Mightex USB2.0 CCD cameras with frame buffers are optimized for machine-vision applications, and they can be also used for a wide variety of applications (such as industrial inspections, digital micro
Data download

Feedback
WeChat

QQ

Online Service

product details

Compact USB2.0 Monochrome 8/12bit 1.3MP 1/3″ CCD Camera with Frame Buffers Description：

Datasheet

Mightex USB2.0 CCD cameras with frame buffers are optimized for machine-vision applications, and they can be also used for a wide variety of applications (such as industrial inspections, digital microscopy and medical imaging) which require good quality cameras that are easy to use and cost-effective. These cameras have built-in frame buffers, external trigger-in, strobe-out, and a powerful camera engine that supports multiple cameras. Monochrome cameras often exhibit 20% higher spatial resolution than their color counterparts because no pixel interpolation is necessary. Since there is no Bayer color filter on the sensor, monochrome cameras are more sensitive than color sensors, especially in near IR and UV regions. Frame rate can be as high as 20 fps in full resolution and up to 84 fps using ROI mode. A user-friendly GUI based application software and an SDK are provided for custom software development. In addition, a DirectShow driver and a TWAIN driver are available to easily link the cameras with users’ applications. A USB command set protocol and a Linux driver are also provided for non-Windows based applications.

Features:

Ultra compact

High sensitivity, low noise

Built-in frame buffer (24 frames at full resolution)

Support simultaneous image capturing from multiple cameras

4-pin GPIOs

Higher sensitivity than color cameras, especially in IR

1280×960 active imaging pixels

High-speed USB2.0 (480Mb/s)

Digital output, no need for frame grabber

Custom programmable with SDK provided

DirectShow, TWAIN and Linux drivers

USB command set protocol for non-Windows-based applications

External and software trigger

Strobe output for external flash

ROI & pixel skipping/binning

No need for external power supply

OEM versions available

Applications:

Machine vision and stereo vision

Medical imaging

Semiconductor equipment

Test instruments

High-quality ID photo capture

Document scanners

Digital microscopy

2D barcode readers

Web camera and security video

Specifications

Parameters	CGN-B013-U	CGE-B013-U	Unit

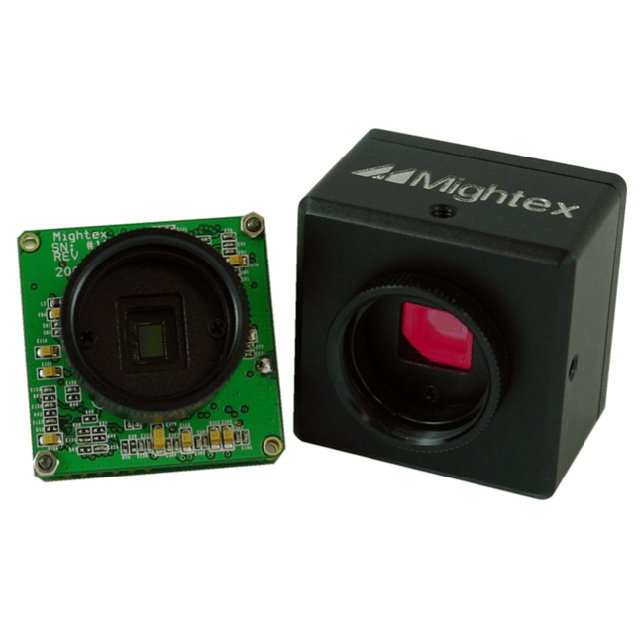

Board-Level/Enclosed	Board-Level	Enclosed
Number of GPIOs	4	4
Resolution	1,280 x 960 Monochrome
Image Sensor Chip	1/3" Sony ICX445AL, Global Shutter
Bit	8 or 12		bit
Pixel Size	3.75 x 3.75		μm
Active Imager Size	6.26 x 5.01		mm
Scanning System	Progressive
On-Board Memory	32		MB
Frame Rates* (@32MHz Clock)	20 @1280 x 960, 38 @640 x 480 (2x2 Bin), 53 @424 x 320 (3x3 Bin), 66 @320 x 240 (4x4 Bin), 66 @320 x 240 (4x4 Bin2)		fps
Sub Resolutions	640 x 480(2x2 Bin), 424 x 320(3x3 Bin), 320 x 240(4x4 Bin), 320 x 240 (1:4 Bin2)
Shutter Speed (Exposure Time)	0.05 ~ 200,000		ms
Hardware Gains	6 ~ 41		dB
Trigger Mode	With external trigger
Trigger Cable	ACC-CAM-CON8
Trigger Delay	< 25		μs
Strobe Out	Yes
Lens Mount	C– mount or CS-mount (M12.5-mount or custom-defined lens mount supported)
Built-in Filters	IR-cut (factory standard), or IR-pass, or No filter
Power Consumption	< 1.8		W
Dimension	40 x 40 x 31 (CS-mount) 40 x 40 x 36 (C-mount)	45 x 45 x 30.5 (CS-mount) 45 x 45 x 35.5 (C-mount)	mm
Weight (excluding lens)	29	115	g
