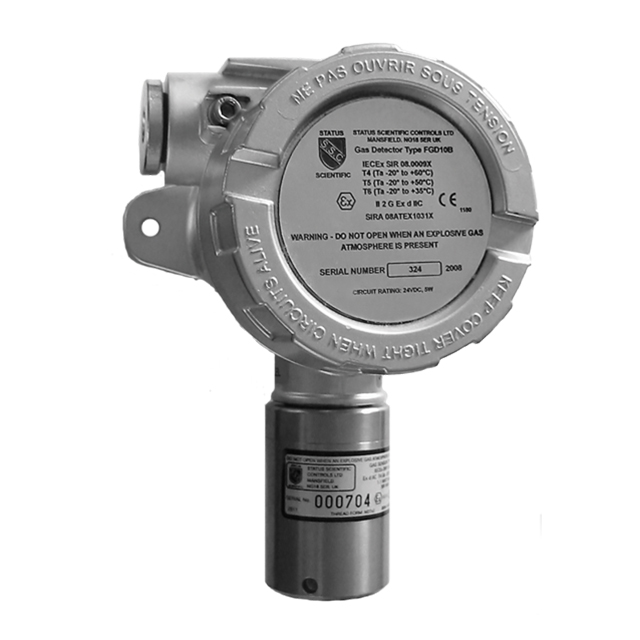

FGD10B Flameproof Fixed Gas Detectors

Updated:2023-10-27

Views:1213

  • Brand: PST/Status Scientific
  • Model: FGD10B
  • Description: Flameproof Fixed Gas Detectors are used in Potentially Explosive Atmospheres where, due to the nature of the environment or the industrial process taking place, there is the risk of an incendive spark
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

FGD10B Flameproof Fixed Gas Detectors Description:

Datasheet

Detection of Hydrocarbon, Hydrogen or Toxic Gases

Features

Certified Ex d IIC to IECEx and ATEX

Industry standard 4 to 20mA output

Protection to IP65

Optional plug-in handheld configuration unit for FGD10B

Available in aluminium or stainless-steel enclosures

Flameproof Fixed Gas Detectors are used in Potentially Explosive Atmospheres where, due to the nature of the environment or the industrial process taking place, there is the risk of an incendive spark from electrical apparatus causing an explosion to occur and the organisation responsible for the safety of the area requires that electrical equipment be enclosed within a flameproof enclosure (also known as an FLP, Ex d or explosion-proof enclosure).

Examples are the oil, gas and chemicals industries.

They can be supplied either in cast aluminium (standard type) or grade 316 stainless steel (suffix '-SS').

The detectors are fitted with a single sensor that be either an Infrared Sensor, for the detection of Hydrocarbon gases or Carbon Dioxide, a 'Pellistor' Catalytic Sensor for detection of both Hydrocarbon gases and Hydrogen or an Electrochemical Sensor for the detection of specific toxic gases and oxygen.

Specifications

Material Instrument Body – Aluminium Pressure Die Casting or Stainless Steel 316
Sensor Insert – Stainless Steel Grade 316
Sensor Bullet – Stainless Steel Grade 303 (Grade 316 also available)
Optional Weatherguard – Stainless Steel Grade 304 & Nylon 66
Cable entry 2 x 20mm or ½” NPT or ¾” NPT
Weights FGD10B Oxygen, Toxic, Pellistor(excluding weatherguard) – 1 Kg FGD10B Infrared – 1.25Kg Weatherguard – 225 grams
Gas Types Oxygen
Toxic
Flammable
Note: Infrared sensors have no response to Hydrogen
Input voltage 8 to 24 volts dc
Input power 5 Watts maximum
Internal fuse 340mA surface mount ‘Multifuse’ , Bourns, MF-MSMF014-2
Analogue output 4 to 20mA (10 bit resolution)
Sensor types NDIR Infrared, Electrochemical or Pellistor
Measurement range Dependent upon sensor type
Response time Sensor response times vary according to the sensor type.
Measurement resolution Flammable gases - 1% LEL or 1% volume. Toxic gases - 0.1ppm for FSD < 50ppm, 1ppm for FSD> 50ppm. Oxygen - 0.1% volume.
IP rating Enclosure IP68, Sensor IP65
Operating temperature Dependent upon sensor type but typically - 20 to +60℃
Humidity Range Oxygen - 0 to 99% RH non-condensing
Toxic - 15 to 95% RH non-condensing
Infrared – 0 to 95% RH non-condensing
Pellistor -  0 to 95% RH non-condensing
Operating Pressure Ambient + or - 10%
Hazardous Area Certification
Certificate Numbers IECEx SIR 08.0009X, Code Ex d IIC
SIRA 08ATEX1031X, Code Ex d IIC
Standards IEC 60079-0 : 2004 (Edition 4)
IEC 60079-1 : 2007-04 (Edition 6)
EN 60079-0:2018
EN 60079-1:2014
EN50270:2006
Temperature Codes T4 (Ta -20 to +60 deg C)
T5 (Ta -20 to +50 deg C) – not applicable to infrared versions
T6 (Ta -20 to +35 deg C) - not applicable to infrared versions
Zones 1 & 2

Suitable Applications

Oil & Gas industry

Industrial

Energy

Construction

Chemical

Medical

Maritime
