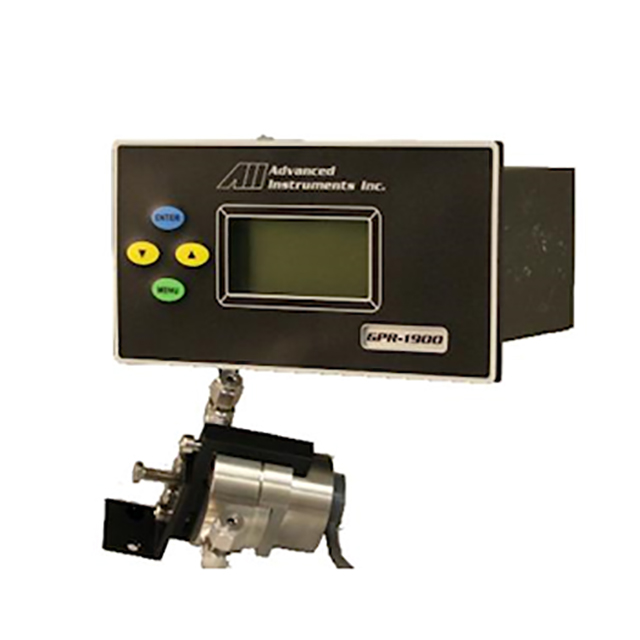

Oxygen Analyzer With Remote Sensor - AII GPR-1900/2900

Updated:2023-10-19

Views:1242

  • Brand: PST/AII
  • Model: GPR-1900/2900
  • Description: A panel mounted oxygen analyser with a remote sensor allows flexibility of installation. The GPR-1900 gas analyzer is suitable for trace oxygen measurements as low as 0-10 ppm; the GPR-2900 measures O
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

Oxygen Analyzer With Remote Sensor - AII GPR-1900/2900 Description:

GPR-1900 User’s Manual GPR-2900 User’s Manual Datasheet

Flexible, Easy Maintenance Oxygen Measurement

Features

Measurement ranges from 0-10ppm up to 0-100% O2

Barometric pressure and temperature compensation

Accuracy of better than 2% of range

Two user configurable alarms

Range ID output

12-28 V DC or mains powered options

XLT sensor options for CO2 backgrounds

A panel mounted oxygen analyser with a remote sensor allows flexibility of installation. The GPR-1900 gas analyzer is suitable for trace oxygen measurements as low as 0-10 ppm; the GPR-2900 measures O2 up to 100%. The remote sensor block allows a very easy oxygen sensor replacement for simple and fast maintenance and low cost of ownership. All versions can be locked manually to a single range or auto-range. The user is always aware of the oxygen measurement range used via the range ID output.

Specifications

GPR-1900 GPR-2900
Measurement range 0-10, 0-100, 0-1000 ppm, 0-1%, 0-25% 0-1%, 0-5%, 0-10%, 0-25%;
optional 0-1%, 0-5%, 0-10%, 0-100%
Accuracy < 2% of selected range at constant conditions < 2% of selected range at constant conditions
Response time T90 < 10 seconds T90 < 10 seconds
Recovery time 60 seconds in air to < 10 ppm in < 1 hr on N2 purge N/A
Sensitivity (LDL) 0.05 ppm 0.01%
Linearity < 0.5% of scale < 0.5% of scale
Sensor model GPR-11-60-4
XLT-11-24-4 for gases containing > 0.5% CO2
GPR-11-60-4
XLT-11-24-4 for gases containing > 0.5% CO2
Sensor life 25ºC (77°F) and 1 atm 24 months in < 1000 ppm O2
6 months in air
GPR-11-60-4 60 months in air
XLT-11-24-4 24 months in air
Calibration interval 30 days 30 days
Inlet pressure 0.34 2 barg (5-30 psig) with atmospheric vent 0.34 2 barg (5-30 psig) with atmospheric vent
Flow rate 0.5 1.0 l/m (1-2 SCFH) 0.5 1.0 l/m (1-2 SCFH)
Gas connections 1/8" compression tube fittings 1/8" compression tube fittings
Wetted parts Stainless steel Delrin; stainless steel optional
Display Graphical LCD 12.7 x 7cm (5 x 2.75”); resolution 0.001 ppm GPR-1900 MS2, 0.01 ppm GPR-1999, 0.001% GPR-2900 Graphical LCD 12.7 x 7cm (5 x 2.75”); resolution 0.001 ppm GPR-1900 MS2, 0.01 ppm GPR-1999, 0.001% GPR-2900
Enclosure Painted aluminum 6" x 4" x 4" panel mount Painted aluminum 6" x 4" x 4" panel mount
Compensation Barometric pressure and temperature Barometric pressure and temperature
Signal output 4-20 mA or 1-5V 4-20 mA or 1-5V
Range ID 4-20 mA non-isolated or 1-5V
Option: reassign relay contacts (eliminates standard alarms).
4-20 mA non-isolated or 1-5V
Option: reassign relay contacts (eliminates standard alarms).
Alarms Two user configurable alarms: magnetic coil relays rated 3A at 100 V AC Two user configurable alarms: magnetic coil relays rated 3A at 100 V AC
Operating temperature GPR sensors: 5°C to 45°C (41°F to 113°F)
XLT sensors: -10°C to 45°C (14°F to 113°F)
GPR sensors: 5°C to 45°C (41°F to 113°F)
XLT sensors: -10°C to 45°C (14°F to 113°F)
Power 100-240 V AC or 12-28 V DC 100-240 V AC or 12-28 V DC
