Oxygen Analyzer - Ntron Microx

Oxygen Analyzer - Ntron Microx Description：

User’s Manual Datasheet

Multi-Technology Remote Sensors for Installation Flexibility

Features

Zirconia or electrochemical sensor technology options

Measurement range: 0 to 1000ppm up to 0 to 100% O2

Gas connections via KF40 or Flow-through housing (with/without orifice) M16 Threaded

Din rail / Panel / Wall mounting options

3 configurable alarm relays

RS232 Comms

LCD + 4 button HMI

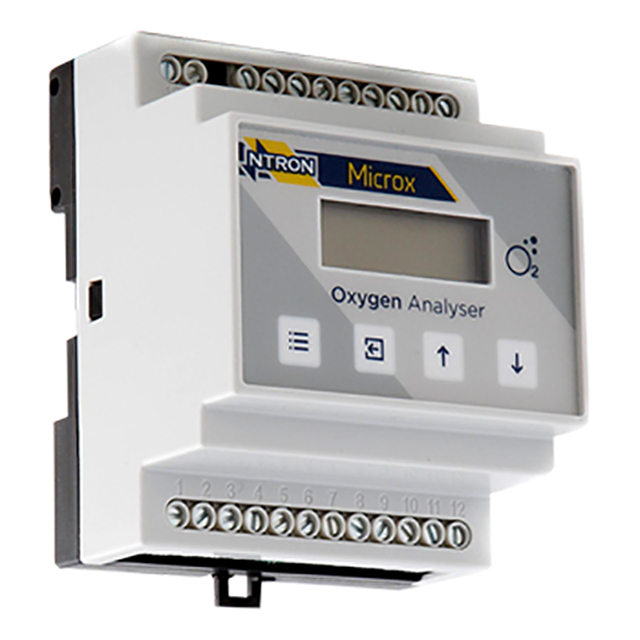

The Microx is a compact oxygen analyzer that has a remote sensor and three display module mounting options. It utilizes zirconia or electrochemical technology to give a reliable measurement of oxygen concentration. The zirconia sensor offers fast response time and a long service life with virtually no drift, whilst the electrochemical sensor allows measurement in background gases containing hydrocarbons.

The minimum output range of 0 to 1000ppm is ideal for nitrogen generation or glove box monitoring. The Microx analyzer can also be supplied with measuring ranges up to 0 to 96% O2 for oxygen concentrators. The flexibility is further enhanced by different mounting options and multiple sensor types
