Special Humidity Probes - Rotronic HC2-HK/C Series

Updated:2023-10-18

Brand: PST/Rotronic
Model: HC2-HK/C Series
Product description: HC2-HK25 / HC2-HK40 The handheld probe is especially suitable for mobile measurements of high temperatures. It measures humidity and temperature and calculates the dew/frost point.
Data download

Feedback
WeChat

QQ

Online Service

product details

Special Humidity Probes - Rotronic HC2-HK/C Series Description：

Datasheet

Humidity and Temperature Measurement for handheld devices

Features

Range of application -100…200 °C / 0…100 %RH

Accuracy: ±0.8 %RH, ±0.1 K, at 23 °C ±5 K

Digital interface (UART) and scalable analog outputs, 0…1 V

GAMP compatible (HygroSoft Software)

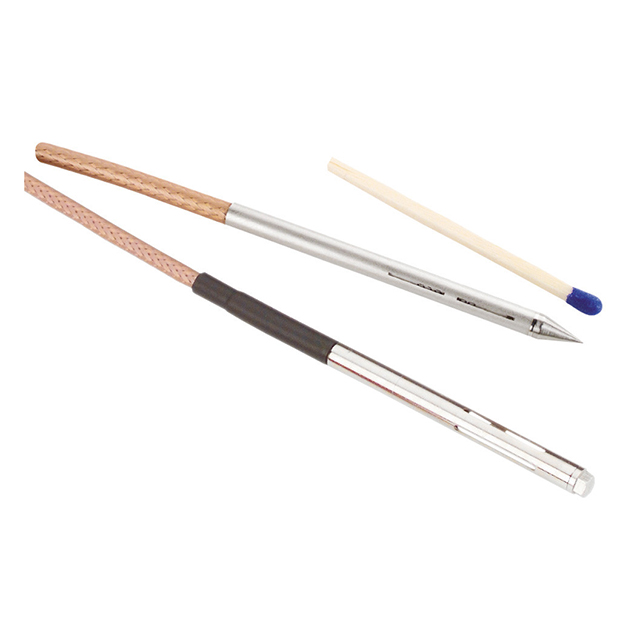

HC2-HK25 / HC2-HK40

The handheld probe is especially suitable for mobile measurements of high temperatures. It measures humidity and temperature and calculates the dew/frost point.

Applications

Climatic and temperature chambers, dryers, air ducts

HC2-C04 / HC2-C05

The miniature probe is used for humidity and temperature measurement in confined spaces. It also calculates the dew and frost point and can be mounted discretely.

Applications

Museums, glass cabinets, building material tests, automotive and aviation industries, testing laboratories, paper, textile and pharmaceutical industries

Specifications

	HC2-C Series	HC2-HK Series
Type	Miniature probe	Handheldprobe
Measuring Range	-40…85 °C / 0…100 %RH	-100…200 °C / 0…100 %RH
Accuracy at 23 °C	±1.5 %RH / ±0.3 K	±0.8 %RH / ±0.1 K
Sensors	Humidity: Rotronic IN-1 / Temperature PT100 1/3 DIN Class B
Filter	Only filter carrier SPA-SS, Filter must be ordered seperately
Probe Housing	PPS (black)	PEEK
Dimension Measurement Head	Ø 15 x 250 mm / Ø 15 x 400 mm	Ø 4 x 57 mm / Ø 5 x 51 mm
Available Cable Length	2 m
Output Signal	Digital UART / 2x 0…1 VDC
Compatible	HF5, HP32, HP23A
