Industrial Humidity Probe - Rotronic HC2A-IC

Updated:2023-10-18

Brand: PST/Rotronic
Model: HC2A-IC
Product description: The Rotronic Industrial Humidity and Temperature probes are built for demanding industrial environments and cover a wide temperature range of -100…200 °C / 0…100% RH. With an outstanding accuracy ± 0.
Data download

Feedback
WeChat

QQ

Online Service

product details

Industrial Humidity Probe - Rotronic HC2A-IC Description：

Datasheet

High-Temperature probe for harsh environment and Temperatures up to -100…200 °C

Features

Range of application -100…200 °C / 0…100 %RH

Accuracy: ±0.8 %RH, ±0.1 K, at 23 °C ±5 K

Digital interface (UART) and scalable analog outputs, 0…1 V

GAMP compatible (HygroSoft Software)

The Rotronic Industrial Humidity and Temperature probes are built for demanding industrial environments and cover a wide temperature range of -100…200 °C / 0…100% RH. With an outstanding accuracy ± 0.8% RH ±0.1 °C. For calibration the probes can be replaced without almost any downtime. Together with a Rotronic HF5, PF4/5 transmitter or HP32 this probe is the first selection for a demanding industrial application.

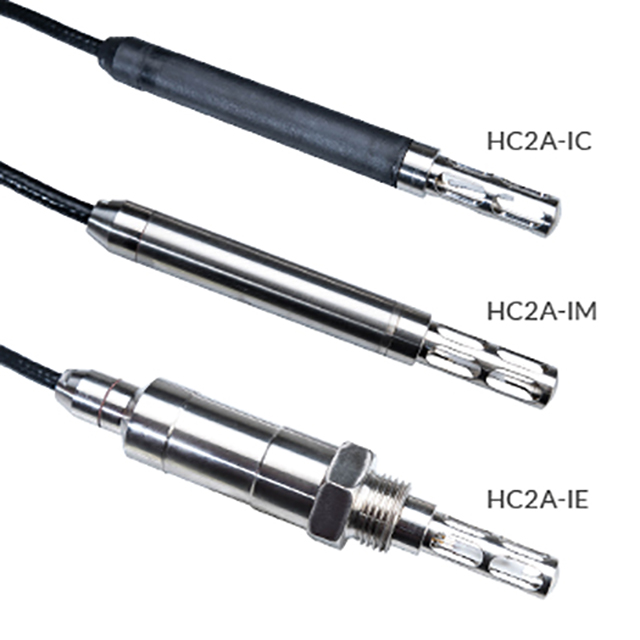

HC2A-IC - Allround Industrial Humidity Probe

The HC2A-IC Industrial Probe is especially suitable for high temperatures up to 200 °C and demanding industrial environments. It measures Humidity and Temperature and can calculate the dew-/ frost point.

Specifications

	HC2A-IC Series
Type	Industrial Probe
Application Range	-100…200 °C / 0…100 % RH
Accuracy at 23 °C	±0.8 %RH / ±0.1 K
Long-term-Stability	Drift <1 %RH per year with clean air or similar. (see pollutant table in catalog etc.)
Sensors	Humidity: Rotronic HT-1 / Temperature: PT100 1/3 DIN Class B
Filter Carrier	Only Filter carrier SPA-SS (order Filter separately)
Probe Housing	PPS (black)
Dimension Measurement Head	Ø 15 x 144 mm / Ø 15 x 294 mm
Available Cable Lenght	2/5 m
Output Signals	Digital UART / 2x 0…1 VDC
Compatible	HF5, PF4/5, HP32
