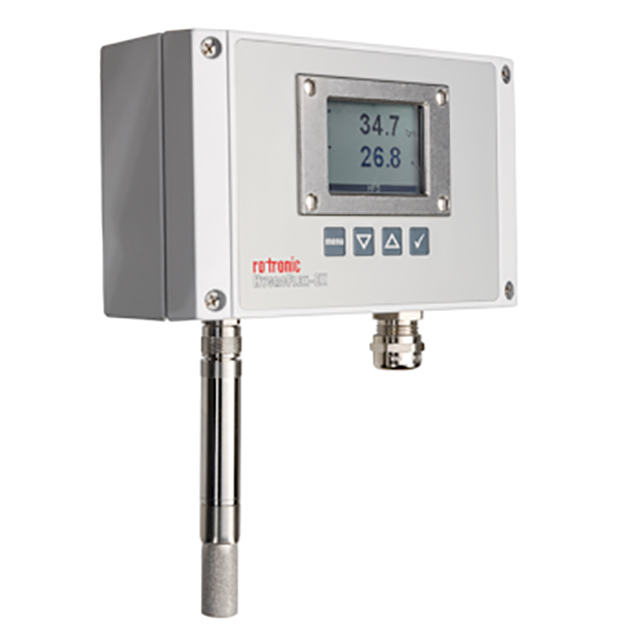

ATEX Humidity and Temperature Transmitter - Rotronic HF5-EX

Updated:2023-10-18

Brand: PST/Rotronic
Model: HF5-EX
Product description: The Rotronic HygroFlex5-EX series consists of two-channel transmitters for the exact measurement of humidity and temperature in explosive atmospheres. This device conforms to the latest international
Data download

Feedback
WeChat

QQ

Online Service

product details

ATEX Humidity and Temperature Transmitter - Rotronic HF5-EX Description：

Datasheet Product Manual

Two-Channel ATEX-Transmitter for Hazardous Areas

Features

Safe operation in areas with explosion risk

Instrinsically safe probes

Interchangeable stainless steel probe

HygroSoft Software

The Rotronic HygroFlex5-EX series consists of two-channel transmitters for the exact measurement of humidity and temperature in explosive atmospheres. This device conforms to the latest international standards. The robust aluminium HF5-EX humidity and temperature transmitters are available with or without display. The attached probes are cast into a stainless steel tube and are certified for operation in explosive atmoshperes.

Specifications

Specifications
ORDERCODE	HF520 EX
TYPE	1x Exchangable HC2A probe
Markets	Oil, Gas, Mills
OPERATING RANGE	-40…60 °C / 0…100 %RH; -10…60 °C with display
MEASURING RANGE	-40…85 °C / 0…100 %RH, probe dependent
COMPATIBLE PROBES	HC2-SM-EX / HC2-IM-EX / HC2-IE-EX / HC2-LDP-EX
PROBE CABLE EXTENSION	2/5/10 m
ACCURACY AT 23°C	±0.8 %RH / ± 0.1 K (typically value), probe dependent
LONG-TERM STABILITY	<1 % RH (typically value), probe dependent
SENSORS	Probe dependent
DISPLAY	Version with and without Display available
POWER SUPPLY	10…28 VDC
OUTPUT PARAMETER	Humidity and Temperature
CALCULATED PARAMETER	All psychrometric parameters available
OUTPUT	2 analogue outputs 2-wire
OUTPUT SIGNALS	2 wire: 4…20 mA
Housing TYPE	Wall and Duct mount
Housing Material	Aluminium
DIMENSION	Wall 160x210 mm with HC2-SM-EX
