Automated Humidity Probe Validation
Features
Truly portable at 3.2kg, and completely self-contained
Intuitive UI makes automating probe verification simple
Integral battery pack means validation can be done without access to services
Validate 7 probes simultaneously
Automated validation procedures for complete hands-off probe verification
Internal calibration correction cycle ensures continued confidence
Optional chilled mirror reference hygrometer, allowing use as a calibrator
Download logged verification data direct to USB memory

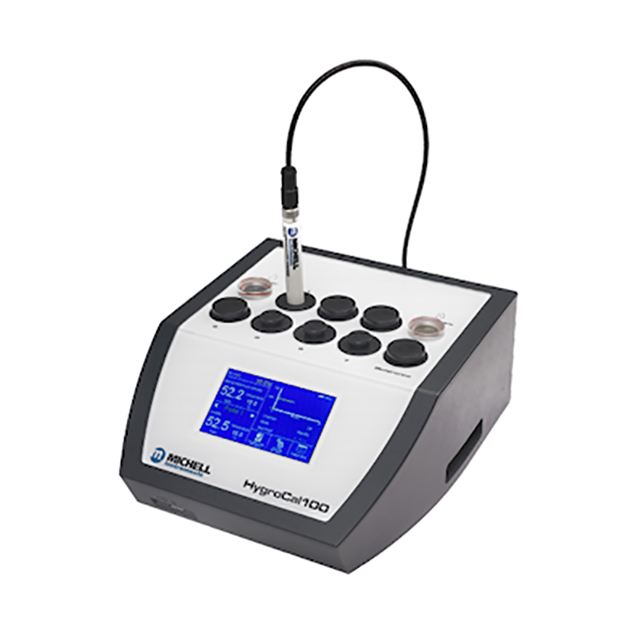

The HygroCal100 provides a stable test chamber to quickly evaluate the performance of relative humidity sensors across a wide range of 5 to 95% relative humidity.
Its intuitive 4” touch screen display and interface allows the probes under test to be fully integrated with the chamber and user interface (UI), so up to 7 probes with a variety of diameters and output signals can be powered, monitored and logged simultaneously by one self-contained unit.
The HygroCal100 allows you to automate your calibration procedure with ease and will provide a complete logged output of all probes under test against the reference instrument in csv format, ready to download to your USB memory device.
Coupled with an Optidew 401 chilled mirror hygrometer, the HygroCal100 becomes a powerful transportable calibration facility.
The HygroCal100 can optionally be fitted with a high capacity battery pack, which can power the generator and 7 sensors under test for up to 8 hours. The unit can also run from mains power while charging the battery.
Specifications
Chamber | ||
Generation range | 5 to 95% RH | |
RH stability | ±0.5% | |
RH uniformity | ±0.5% | |
Stabilization time | Typically <5 min for full stability from step changes of 10% RH | |
Control Probe | ||
RH accuracy | ±0.8% | |
Temperature accuracy | ±0.2°C | |
Long term stability | ±1% per year | |
Electrical Specifications | ||
User interface | 4.3” color LCD with touchscreen | |
Interface with probes | 24V excitation voltage, accepts signals: 0–20 mA, 4–20 mA, 0–1 V, 0–5 V, 0–10 V | |
Measurement units | %RH, temperature in °C, °F | |
Displayed resolution | 0.1 | |
Data logging | 2Gb internal memory available for log files; or 10.6yrs storage at 5s intervals | |
Battery (optional) | 1500 mAh | |
Power supply | 24 V DC (100 to 240 V AC, 50/60 Hz adaptor included) | |
Mechanical Specifications | ||
Probe ports | 8 - port adaptors to accomodate probes of diameters: 12mm, 13.5mm, 14mm, 15mm, 18.5mm, 19mm, 24mm, 25mm | |
Chamber volume | Approx 1050cm3 | |
Maximum probe insertion depth | 60mm | |
Desiccant reservoir capacity | 25cm3 | |
Saturator reservoir capacity | 25ml | |
Environmental conditions | +5 to +40°C | |
Dimensions | 100 x 250 x 300mm (h x w x d) | |
Weight | 3.2kg | |
