RH and Temperature Probe Calibrator - Rotronic HygroGen 2

Updated:2023-10-17

Views:998

  • Brand: PST/Rotronic
  • Model: HygroGen 2
  • Description: Since its launch, the Rotronic HygroGen has defined the standard for portable humidity and temperature calibration. Hundreds of users worldwide have identified that this tool for the rapid generation
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

RH and Temperature Probe Calibrator - Rotronic HygroGen 2 Description:

Product Manual Datasheet

On-site and In-Lab Humidity and Temperature Probe Calibration

Features

Generates stable humidity 2…99 % RH and temperature -5…60 ° conditions (<±0.1 %RH, <±0.01 °C)

Humidity and temperature changes in less than 5 min

Time-saving multiply probes calibration

User programmable calibration sequence with up to 200 steps

Automatic calibration (optional)

Integrated FDA 21 CFR part 11 compliant Rotronic HW4 software

Since its launch, the Rotronic HygroGen has defined the standard for portable humidity and temperature calibration. Hundreds of users worldwide have identified that this tool for the rapid generation of stable temperature and humidity conditions can save significant amounts of time in performing calibrations of all types of humidity instruments from all manufacturers.

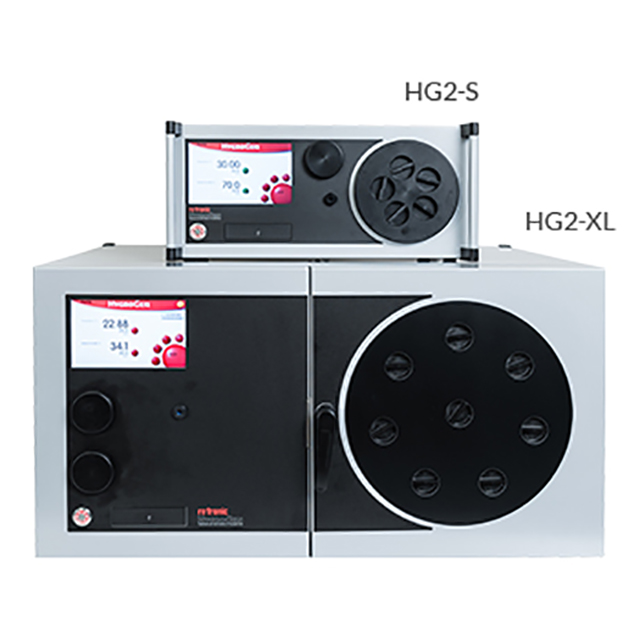

HygroGen2 HG2-S

The HygroGen2 further satisfies the stringent demands of quality and compliance regulations with its ability to calibrate instruments over their full working range, and is embraced throughout the pharmaceutical industry as the leading instrument in its class and is favored in ISO 17025 humidity calibration laboratories across the world. Being portable and robust, it can be set up at the installation location allowing for complete system qualification.

HygroGen2 HG2-XL

The rock-solid stability, minimal thermal gradients and quick set-point changes of HygroGen2-S are replicated in the HygroGen2 HG2-XL, which boasts a chamber with 10 times the capacity.

Specifications

HG2-S HG2-XL
Type Standard Size Humidity and Temperature Calibrator XL Size Humidity and Temperature Calibrator
Climate Range 0…60 °C, with Range Extension -5…60 °C;
5…95 %RH, with Range Extenstion 2…99 %RH
Operating Range 10-35 °C, <2000 m altitude or less
Probe Mounts Up to 6 probes through door ports Up to 19 probes through door, plus internal shelf racks
Working Volume 1.5 l 17 l
Typical Calibration Uncertainty ±1.5 %RH (k=2) at 23 °C, ±0.15 °C (k=2) 15...50 °C
Humidity Changes 5…95 %RH < 5 min < 15 min
Temperature Changes 23…50 °C < 5 min < 15 min
Temperature Changes 23…0 °C <25min <35 min
Programmer Function 20 user program up to 200 step per program
External Sample Loop Temperature controlled outlet and inlet, 6 mm fittings
Optional Enhanced Features Temperature / Humidity Range Extensions, AutoCal, External MBW/RHS
reference integration, Remote Screen Sharing, Remote API
Power 110...240 VAC 50/60 Hz, 3 A (240 VAC) 6A (110 VAC)
Dimension 45 x 41x 21 cm 80 x 62 x 41 cm
Weight 13 kg 37 kg

Suitable Applications

On-site calibration solution for all users of humidity and temperature measuring equipment.
