Gentec-EO IS50A-1KW-RMT-D0 High-power Joulemeter

Gentec-EO IS50A-1KW-RMT-D0 High-power Joulemeter Description：

Datasheet(CN) Datasheet(EN) PC-Gentec-EO User's Manual QE User's Manual INTEGRA User's Manual

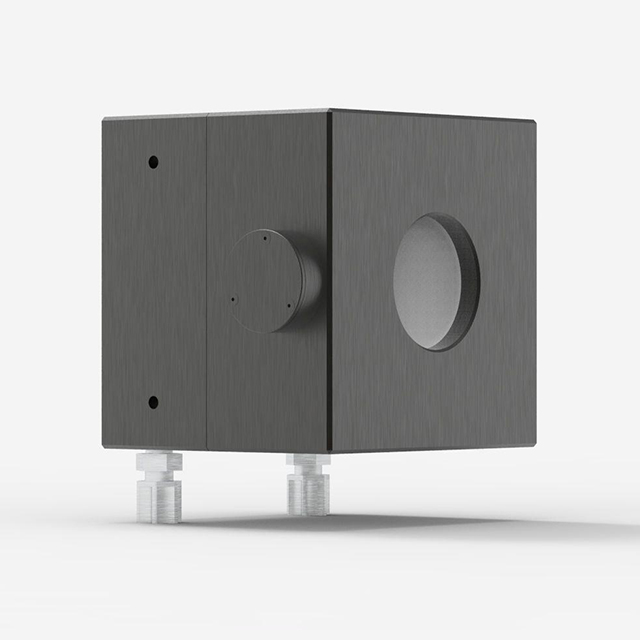

Gentec-EO IS50A-1KW-RMT-D0 High-power Joulemeter for laser energy measurement up to 1 kW average power.

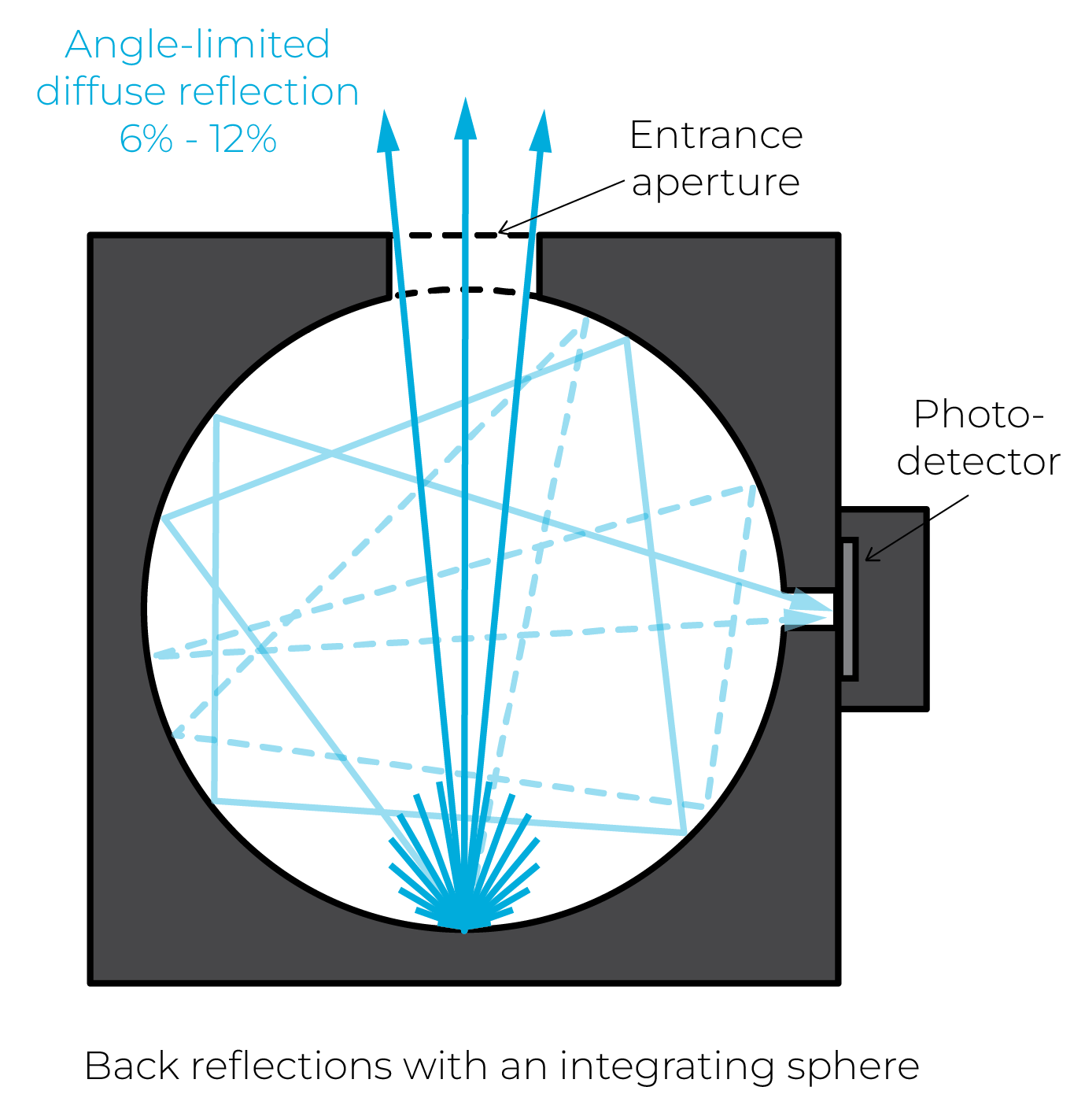

Diffused back-reflections confined in an angular cone

While thermal detectors and water calorimeters diffusely reflect 10% to 15% of the incoming light in a Lambertian manner, integrating spheres of the IS series reflect only 6% to 12% more directionally through their optical aperture. This helps improve safety in the measurement environment by making it easier to deal with back reflections.

Optional INTEGRA (USB or RS-232) output

When you choose the INTEGRA output option you get an all-in-one measurement instrument that combines both the detector and the meter in one convenient product. Plug the detector in your PC, install our free software and start measuring.

The most cost-efficient solution

Same measurement performance as our other solutions

No compromise on interface functions and features

Compact solution for OEM applications and field servicing

Save money on recalibration with an all-in-one instrument

Key Features

High average power

The water-cooled joulemeters can handle high average powers.

Resistant coating

Our proprietary coating is designed to be strong. Its damage thresholds are orders of magnitude higher than any other "white" coatings on the market.

Precise calibration

The IS detectors have a NIST-traceable calibration for their entire calibrated spectral range.

CHOICE OF OUTPUT

The IS-RMT detectors are available with four output options:

Smart DB15 connector containing all the calibration data

INTEGRA with USB output (-INT)

INTEGRA with RS-232 output (-IDR)

INTEGRA with USB output and external trigger (-INE)

Specifications
