L30A-EX-10MM P/N7Z02686 Laser Measurement Sensor

Updated:2023-05-19

Brand: Ophir
Model: L30A-EX-10MM
Product description: The L30A-EX-10MM is a thin profile thermal power/energy laser measurement sensor 10mm thick with a 26mm aperture. It can measure from 80mW to 8W free standing and 30W when heat sinked. It can measure
Data download

Feedback
WeChat

QQ

Online Service

product details

L30A-EX-10MM P/N7Z02686 Laser Measurement Sensor Introduction：

The L30A-EX-10MM is a thin profile thermal power/energy laser measurement sensor 10mm thick with a 26mm aperture. It can measure from 80mW to 8W free standing and 30W when heat sinked. It can measure energy from 20mJ to 30J. Its EX absorber has a damage threshold of 0.5J/cm² and covers the spectral range from 0.15 - 0.7µm and 10.6µm. The sensor comes with a 1.5 meter cable for connecting to a meter or PC interface.

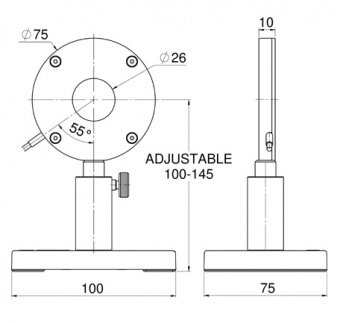

L30A-EX-10MM P/N7Z02686 Laser Measurement Sensor Drawing：

L30A-EX-10MM Drawing

L30A-EX-10MM P/N7Z02686 Laser Measurement Sensor Specification：

Absorber Type	EX
Aperture	Ø26mm
Spectral Range	0.15 - 0.7µm, 10.6µm
Power Range	80mW-30W
Energy Range	20mJ-30J
Backscattered Power	N.A.
Dimensions	Ø75 W x 10 D (mm)
Max Pulse Energy	30J
Max Average Power Density	1.5kW/cm²
Response Time	1.5 s
Max Energy Density (for <100ns)	0.5J/cm²
Max Energy Density (for 2ms)	12J/cm²
Max Average Power	30W
BeamTrack Functions	N.A.
