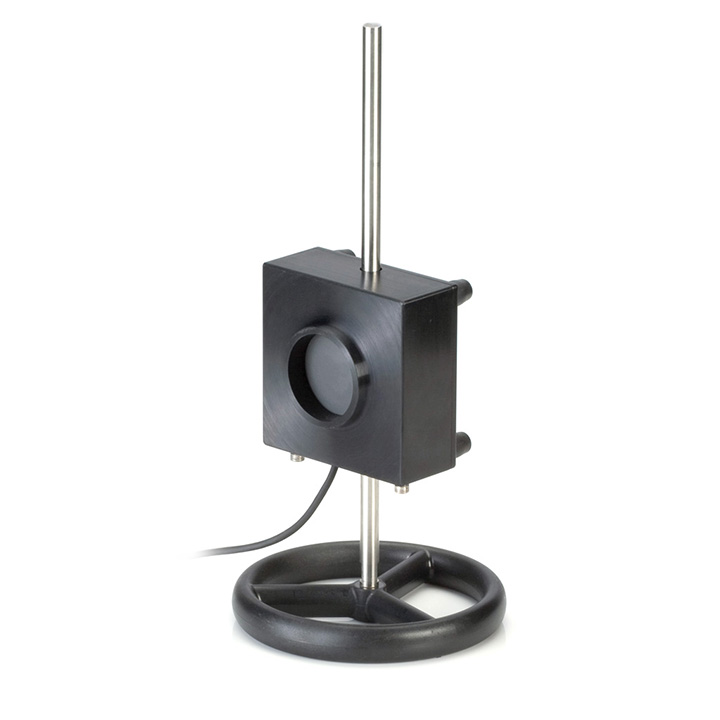

Coherent LM-2500 Laser Power Sensor

Updated:2024-10-31

Brand: Coherent
Model: LM-2500
Description: This BeamFinder sensor is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax-TOP, LabMax-TO and LabMax-Pro SSIM meters. A Thermal SmartSensor Adapter PN 1056827 is required
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Coherent LM-2500 Laser Power Sensor Description：

Datasheet

This BeamFinder sensor is terminated in a SmartSensor DB25 cable and is directly compatible with LabMax-TOP, LabMax-TO and LabMax-Pro SSIM meters. A Thermal SmartSensor Adapter PN 1056827 is required to use this sensor with FieldMate, FieldMaxII-TOP and FieldMaxII-TO meters.

These unique position sensing thermopiles display the position of the incident beam on the sensor disk, in addition to measuring power when used with the LabMax and LabMax-Pro meters. This information allows the user to safely and precisely align the sensor and the beam being measured. This is particularly useful for non-visible beams.

Water-cooled thermopile for measuring lasers up to 2500W with beam position measurement.

Key Features:

100W to 2500W range

56 mm diameter active area

Beam position measurement

Spectrally flat broadband coating

Compact OEM sensor

0.25 to 10.6 µm spectral range

Water-cooled

ISO 17025 accredited

Specifications

Cable Type

LM DB-25

Cooling Type

Water

Power Range

100W to 2500W

Active Area Diameter

56 mm

Detector Coating

Broadband

Noise Equivalent Power (milliwatts)

Wavelength Range (micrometers)

0.25 to 10.6

Maximum Power Density (kilowatts per square centimeter)

1 to 2.5

Maximum Energy Density (millijoules per square centimeter)

600, 1064 nm, 10 ns

Response Time, Speed-up On, 0% to 95% (seconds)

Window

None

Diffuser

None

Calibration Uncertainty (%)(k=2)

±5

Power Linearity (%)

±1

Spectral Compensation Accuracy (%)

±1.5

Calibration Wavelength (nanometers)

10600

Cable Length (meters)
