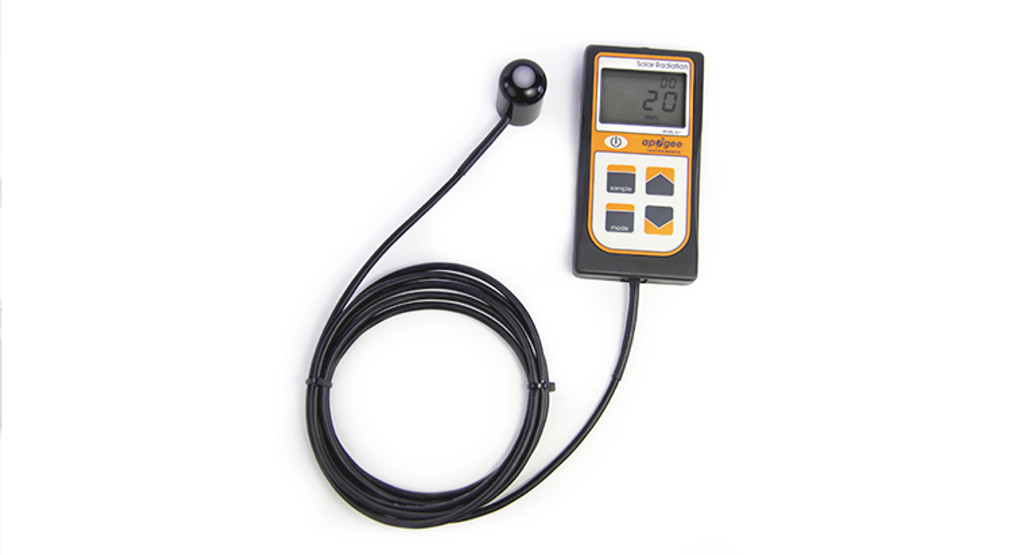

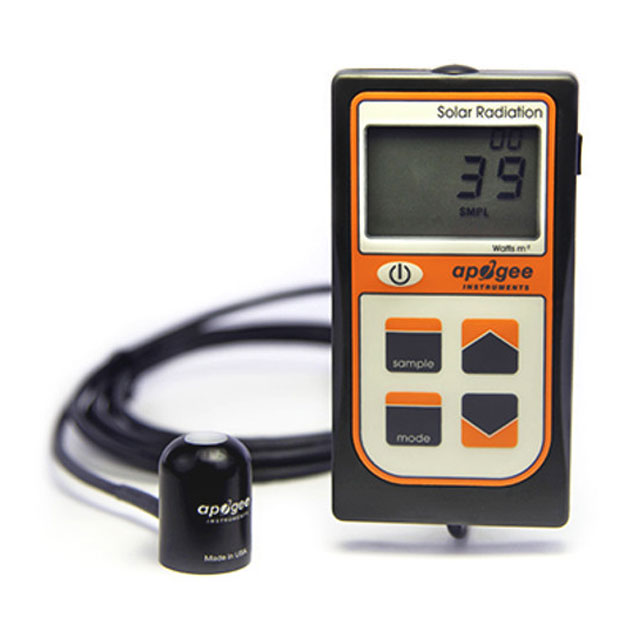

MP-200: Pyranometer Separate Sensor with Handheld Meter

Updated:2022-12-21

Brand: APOGEE
Model: MP-200
Description: The MP-200 has a hand-held meter, attached via cable, that displays and stores measurements in W m-2. The sensor incorporates a silicon-cell photodiode with a rugged, self-cleaning sensor housing desi
Data download

Feedback
WeChat

QQ

Online Service

Product Details

Overview of the MP-200 Total Radiation Meter with Handheld meter Split sensor：

User's Manual

The MP-200 has a hand-held meter, attached via cable, that displays and stores measurements in W m^-2. The sensor incorporates a silicon-cell photodiode with a rugged, self-cleaning sensor housing design. Typical applications include shortwave radiation measurement in agricultural, ecological, and hydrological weather networks and solar panel arrays.

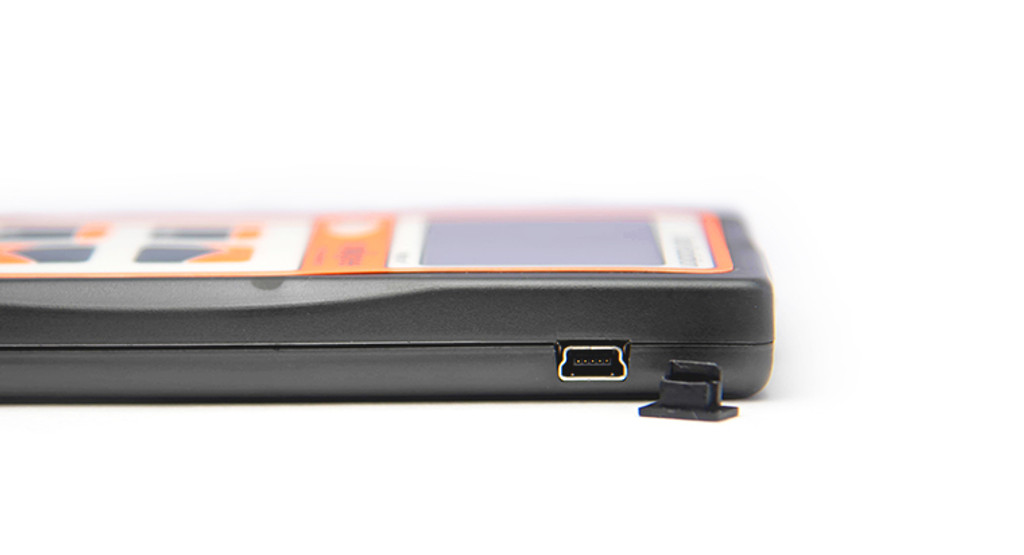

The meter has a sample and log mode, and will record an integrated daily total in MJ m^-2d^-1. Sample mode will record up to 99 manual measurements. Log mode will power the meter on/off to make a measurement every 30 seconds. Every 30 minutes the meter will average the sixty 30 second measurements and record the averaged value to memory. The meter can store up to 99 averages, once full it will start to overwrite the oldest measurement with new ones. An integrated daily total will be recorded from the 48 averaged measurements (making a 24 hr period). Sample and log measurements can be reviewed on the LCD display or by downloading the data to a computer, however, the integrated daily total can only be viewed by downloading the data to a computer. Downloading data to a computer requires the AC-100 communication cable (a standard USB cable will not work) and ApogeeAMS software.

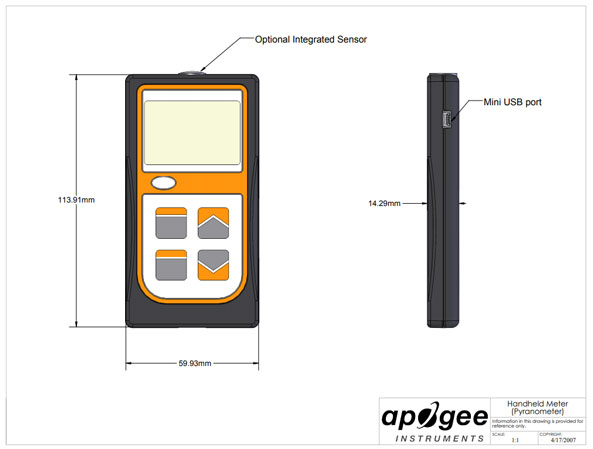

MP-200 drawings：

Specifications of MP-200:

Calibration Uncertainty at 1000 W mˉ²	Less than 3 %
Measurement Repeatability	Less than 1 %
Non-stability (Long-term Drift)	Less than 2 % per year
Non-linearity	Less than 1 % (up to 1750 W mˉ²)
Response Time	Less than 1 ms
Field of View	180˚
Spectral Range	360 to 1120 nm (wavelengths where response is 10 % of maximum)
Directional (Cosine) Response	± 5 % at 75˚ zenith angle
Temperature Response	0.04 ± 0.04 % per C
Operating Environment	0 to 50 C, less than 90 % non-condensing relative humidity up to 30 C, less than 70 % non-condensing relative humidity from 30 to 50 C, separate sensors can be submerged in water up to depths of 30m
Meter Dimensions	126 mm length, 70 mm width, 24 mm height

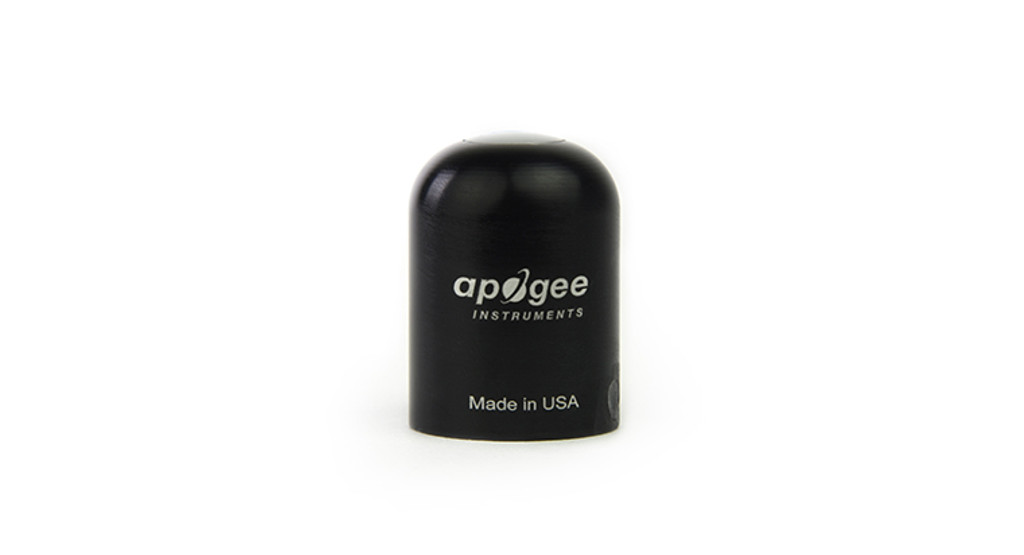

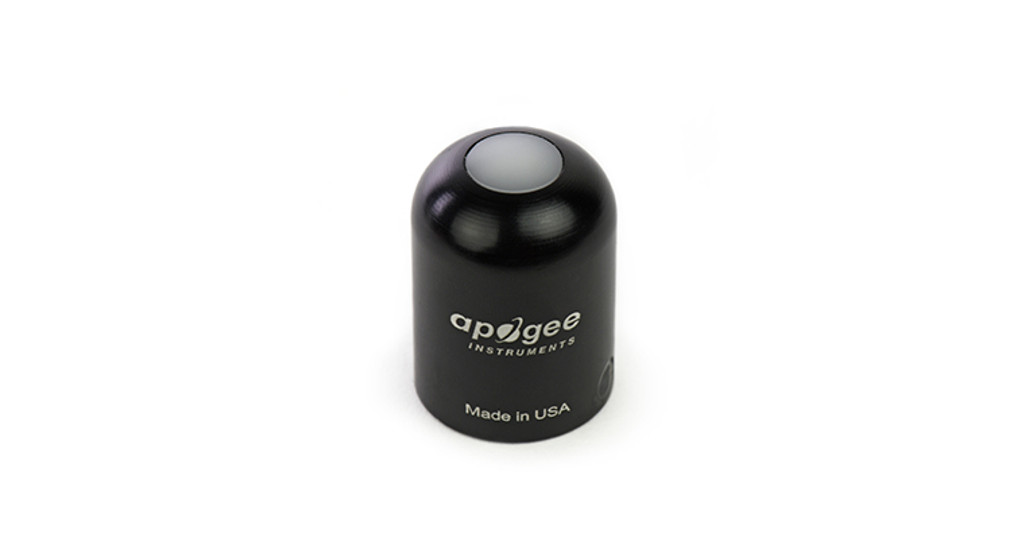

Sensor Dimensions	24 mm diameter, 33 mm height
Mass	180 g
Cable	2 m of shielded, twisted-pair wire with santoprene rubber jacket (high water resistance, high UV stability, flexibility in cold conditions), additional cable available
Warranty	4 years against defects in materials and workmanship
Manufactured	Made in the USA
