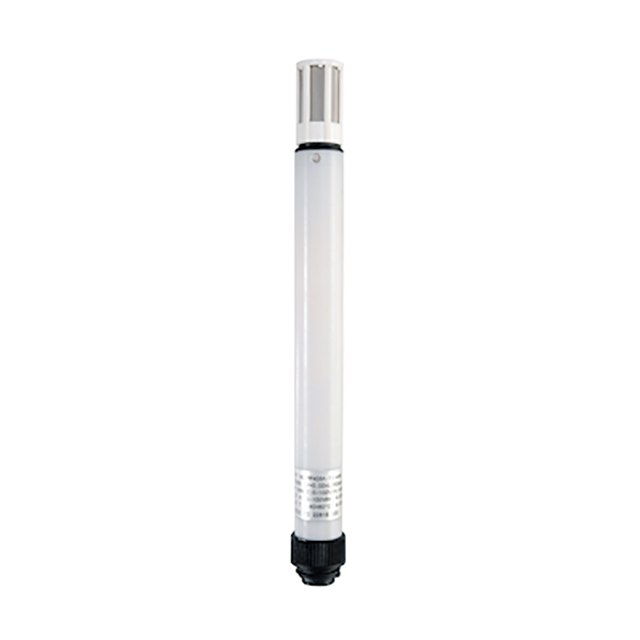

Meteorology RH and T Probes - Rotronic MP100A/MP400A

Updated:2023-10-19

Brand: PST/Rotronic
Model: Rotronic MP100A/MP400A
Product description: The MP100A is a combined humidity and temperature probe designed primarily for meteorological and general outdoor applications. Operation from DC voltage and low power consumption make the MP101A part
Data download

Feedback
WeChat

QQ

Online Service

product details

Meteorology RH and T Probes - Rotronic MP100A/MP400A Description：

User’s Manual

Low Power Consumption for Battery Operation in Remote Locations

Features

Very robust, therefore high long-term stability

Voltage and current outputs for humidity and temperature

Hygromer® IN-1 sensor / Pt100 1/3 Class B

Cable length compensation up to 100 m

Connection with T4/T7 connector or cable with open ends

The MP100A is a combined humidity and temperature probe designed primarily for meteorological and general outdoor applications. Operation from DC voltage and low power consumption make the MP101A particularly suitable for operation at remote locations. Energizing of the probe is required for only 0.25 seconds during each measurement. The linear output signals are consistent with the requirements of most data acquisition systems.

Specifications

Technical data	MP100A (analog)	MP400A (analog)
General
Parameters	Humidity and temperature	Humidity and temperature
Housing material	POM	POM
Supply voltage	4.8…30 VDC	10...30 VDC
Current consumption	<4 mA at 4.8 VDC	<50 mA at 10 VDC
Range of application / Storage conditions	-40...85 °C	-40...85 °C
Cable length compensation	Up to 99 m	Up to 99 m
Humidity measurement
Sensor	ROTRONIC HYGROMER® IN-1	ROTRONIC HYGROMER® IN-1
Measurement range	0..100 %RH	0..100 %RH
Accuracy at 0...30 °C	10…95 %RH: ±1.5 %RH	10…95 %RH: ±1.5 %RH
Long-term stability	<1 %RH/year	<1 %RH/year
Temperature measurement	Pt100 1/3 Class B	Pt100 1/3 Class B
Measurement range	-50...100 °C	-50...100 °C
Accuracy at 0...30 °C	±0.3 K	±0.3 K
Response time	<15 s τ63	<15 s τ63
Analog output
Current	N/A	0(4)…20 mA
Voltage	0…1 V	N/A
Digital Output	N/A	N/A
