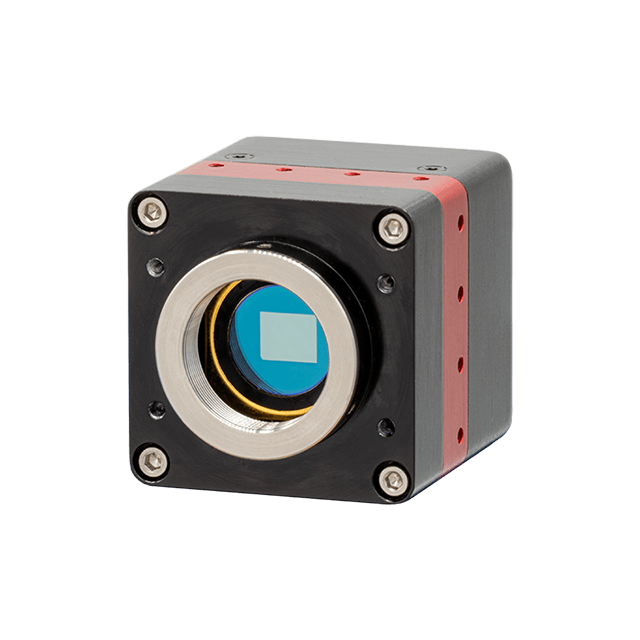

Raptor Photonics Owl 640 N Ultra Low Readout Noise (18e-) Digital VIS-SWIR Camera

Raptor Photonics Owl 640 N Ultra Low Readout Noise (18e-) Digital VIS-SWIR Camera Description：

US Letter Datasheet A4 Datasheet User's Manual

Using next-generation technology, Raptor has launched one of the lowest noise VIS-SWIR cameras on the market, perfect for imaging in low light conditions. Using a 640 x 512 InGaAs sensor, and the sensor stabilised to 15°C, the Owl 640 N offers a visible response from 0.6µm to 1.7µm to enable a high sensitivity. The camera also offers the lowest readout noise on the market with a typical value of 18 electrons. The camera has a high intra-scene dynamic range of typically 73dB, enabling simultaneous capture of bright and dark portions of a scene.

Available with a 14 bit base Camera Link output, the Owl 640 N will run at frame rates up to 120Hz. The camera features an on-board Automated Gain Control (AGC) which enables the best contrast imaging from low to bright light as well as an on-board intelligent 3 point Non-Uniform Correction (NUC), providing the highest quality images. As with all Raptor cameras, the Owl 640 N is compact and rugged.

Key Features

Ultra low noise sensor – Enables ultimate night vision VIS-SWIR image

VIS-SWIR technology – Compatible with VIS-SWIR illuminators, markers & pointers

15µm x 15µm pixel pitch – Enables highest resolution VIS-SWIR image

On-board Automated Gain Control (AGC) – Enables clear video in all light conditions

Ultra compact, Low power – Ideal for hand-held, mobile or airborne systems

Applications

Surveillance

860, 1064 & 1550nm laser line detection

Active Imaging

Airborne Payload

Hand Held Systems

Imaging through Fog

Range Finding

Vision enhancement

Scientific

Astronomy

Beam Profiling

Hyperspectral Imaging

Semiconductor Inspection

Solar Cell Inspection

Thermography

QE Curves
