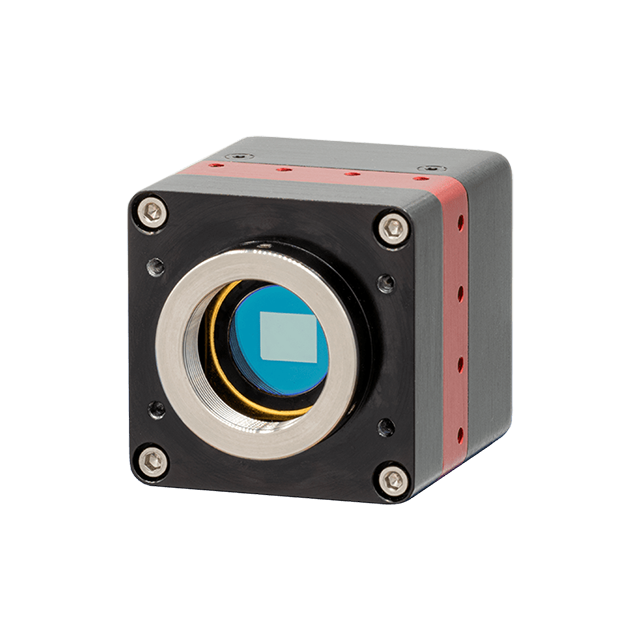

Raptor Photonics Owl 640 II High Resolution, Low Noise, Digital VIS-SWIR InGaAs Camera

Raptor Photonics Owl 640 II High Resolution, Low Noise, Digital VIS-SWIR InGaAs Camera Description：

US Letter Datasheet A4 Datasheet User's Manual

The Owl 640 II is the next iteration of the highly successful Owl 640. With even smaller mechanics and the implementation of the smaller SDR Camera Link connector, the camera is even more compact and lightweight than before. The Owl 640 II is a rugged, high sensitivity digital VIS-SWIR camera. Using a 640 x 512 InGaAs sensor from SCD, the camera enables high sensitivity imaging from 0.6µm to 1.7µm. With less than 50 electrons readout noise (rms), the Owl 640 II enables a high VIS-SWIR detection limit.

The Owl 640 II will run up to 120Hz, enabling high speed digital video with intelligent Automated Gain Control (AGC). This on-board AGC will enable clear video in all light conditions.

The camera is available in both C-mount and M42-mount.

Key Features

VIS-SWIR technology | Compatible with VIS-SWIR illuminators, markers & pointers

15µm x 15µm pixel pitch | Enables the highest resolution VIS-SWIR image

Ultra high intra-scene dynamic range | Enables simultaneous capture of bright & dark portions of a scene

Onboard Automated Gain Control (AGC) | Enables clear video in all light conditions

Ultra compact, Low power | Ideal for hand-held, mobile or airborne systems

Applications

Surveillance

860, 1064 & 1550nm laser line detection

Active Imaging

Airborne Payload

Hand Held Goggles

Imaging through Fog

Range Finding

Vision enhancement

Scientific

Astronomy

Beam Profiling

Hyperspectral Imaging

Semiconductor Inspection

Solar Cell Inspection

Thermography

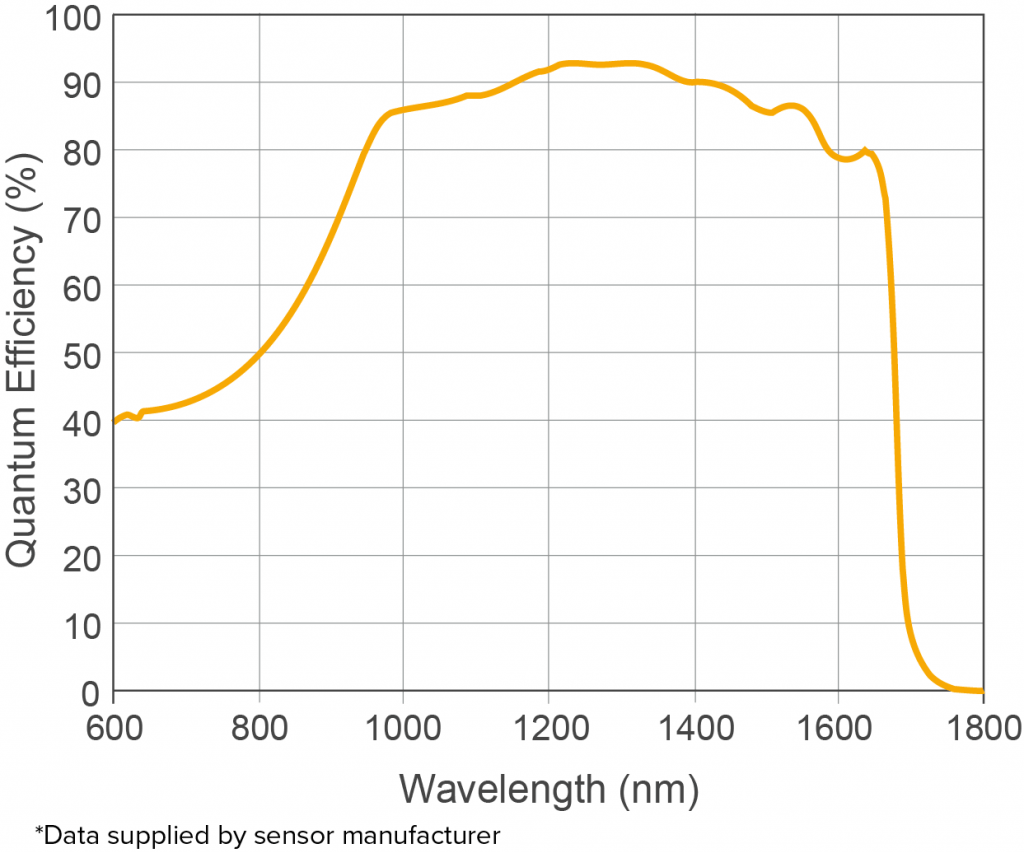

QE Curves
