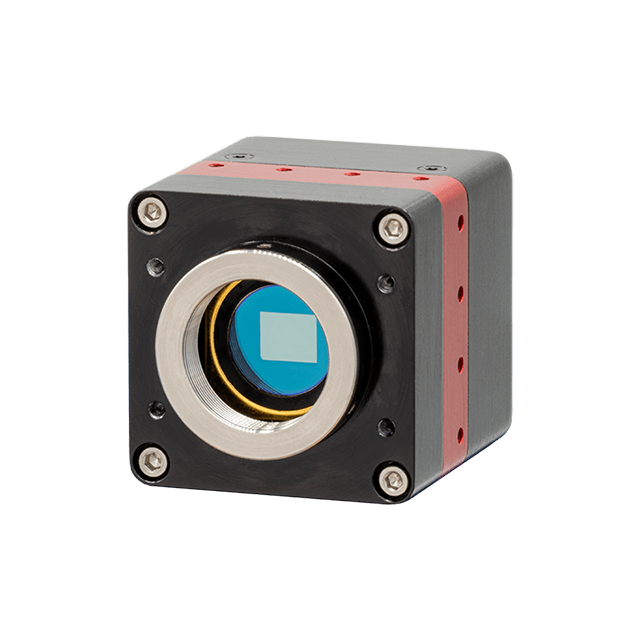

Raptor Photonics Owl 1280 High resolution, High Sensitivity, Digital VIS-SWIR Camera

Raptor Photonics Owl 1280 High resolution, High Sensitivity, Digital VIS-SWIR Camera Description：

US Letter Datasheet A4 Datasheet OEM only Datasheet User's Manual

Using a 1280 x 1024 InGaAs sensor from SCD, the OwL 1280 offers visible extension from 0.6µm to 1.7µm to enable high sensitivity imaging. The 10µm x 10µm pixel pitch enables the highest resolution imaging. It will offer less than 28 electrons readout noise (rms) and with a high intra-scene dynamic range of 51dB, this enables simultaneous capture of bright & dark portions of a scene.

Available with a 12 bit medium Camera Link digital output, the Owl 1280 will run from 10 to 60Hz. The camera features an on-board Automated Gain Control (AGC) which enables the best contrast image from low to bright light. The camera also has an on-board intelligent 3 point Non Uniform Correction (NUC) providing the highest quality images. As with all Raptor cameras, the Owl 1280 is ultra compact and rugged. The camera sensor temperature is stabilised to 15°C and the camera does not have a fan.

Raptor also offers an OEM variant of this camera, the Owl 1280 SDI, offering a HD-SDI interface for easy integration. The camera produces uncompressed, mono, progressive scan, digital video output to HD-SDI SMPTE-274M 1080p30 standard. SDI connectivity reduces system complexity, maximizes interface bandwidth, and expands the usable operational range.

Key Features

VIS-SWIR technology – Enables high sensitivity imaging from 0.6μm to 1.7μm

10μm x 10μm pixel pitch – Enables the highest resolution VIS-SWIR image

< 50 electrons readout noise – Enables the highest VIS-SWIR detection limit

Ultra high intrascene dynamic range – 69dB – Enables simultaneous capture of bright & dark portions of a scene

On-board Automated Gain Control (AGC) – Enables clear video in all light conditions

On-board intelligent 3 point NUC – Enables highest quality images

Ultra compact, Low power (< 3W) – Ideal for hand-held, mobile or airborne systems

Rugged, No fan – Enables integration into UAV, handheld or any Electro-Optic systems

Applications

Surveillance

HD long-range day/night SWIR imaging

Airborne and Ground Payload

Hand Held Goggles

Driving Vision Enhancement (DVE)

Airborne EVS

Vision enhancement

Scientific

Astronomy

Beam Profiling

Hyperspectral Imaging

Semiconductor Inspection

Solar Cell Inspection

Thermography

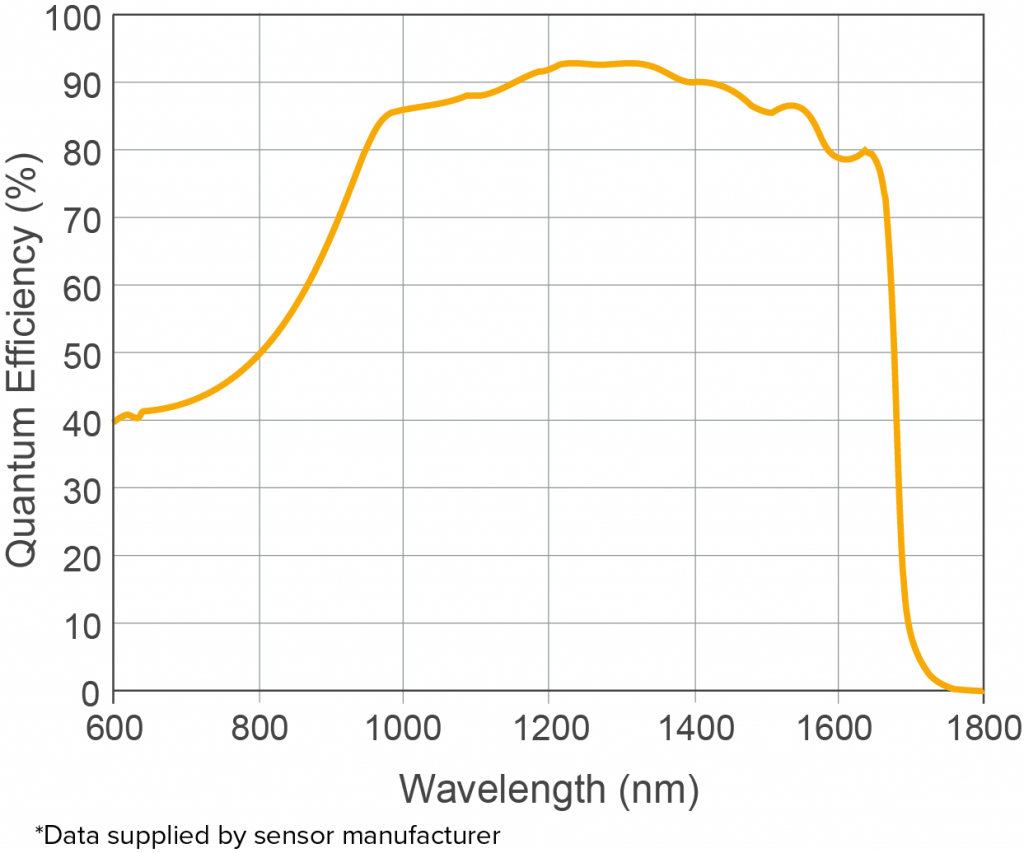

QE Curves
