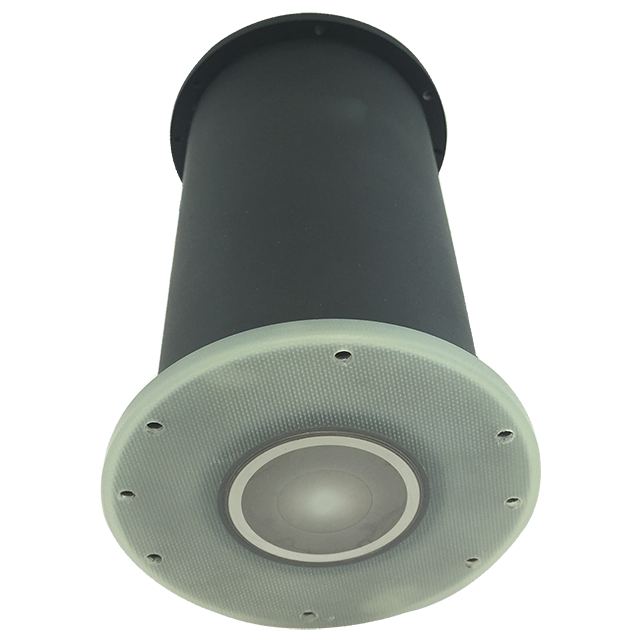

PH-DS027 Streak Tubes

Updated:2023-01-30

Brand: PHOTEK
Model: PH-DS027
Product description: Streak tubes are used for the study of ultra-fast optical phenomena and speciﬁcally measure the variation in light intensity as a function of time.Installed in some of the world’s best streak cameras
Data download

Feedback
WeChat

QQ

Online Service

product details

PH-DS027 Streak Tubes description：

Photek offers five streak tubes for different applications; Photochron 2, Photochron 5, ST-HDR, ST-X and ST-Y. With a range of cathode options for use in the UV, visible and NIR spectrums the Photek streak tubes are ideal for streak and high repetition rate framing cameras.

PH-DS027 Streak Tubes：

Features：

Timing resolution to 400 fs

8 mm, 20 mm & 35 mm photocathode size available

Synchroscan and framing options available

UV, Solar Blind, Visible and NIR responses

Can be supplied with a mu-metal shield for high magnetic field environments

Applications：

Streak cameras

Framing cameras

LIDAR

FLIM

Fusion research

Optical oscilloscope

PH-DS027 Streak Tubes product series：

PHOTEK PART NO.	DESCRIPTION	DOWNLOADS
ST-Y	35 mm Streak Tube	Datasheet
ST-X	20 mm Streak Tube	Datasheet
ST-HDR	35 mm Streak Tube	Datasheet
Photochron 2	8 mm Streak Tube
Photochron 5	8 mm Streak Tube	Datasheet
000823	Streak Tube Technical Note	Technical Note
020527	ST-Y and ST-X Technical Note	Technical Note
