PH-DS016 Vacuum Detector

Updated:2023-01-30

Brand: PHOTEK
Model: PH-DS016
Product description: The Vacuum Imaging Detector (VID) is an open face detector without a photocathode. It is designed to be mounted into or onto a vacuum chamber.
Data download

Feedback
WeChat

QQ

Online Service

product details

PH-DS016 Vacuum Detector description：

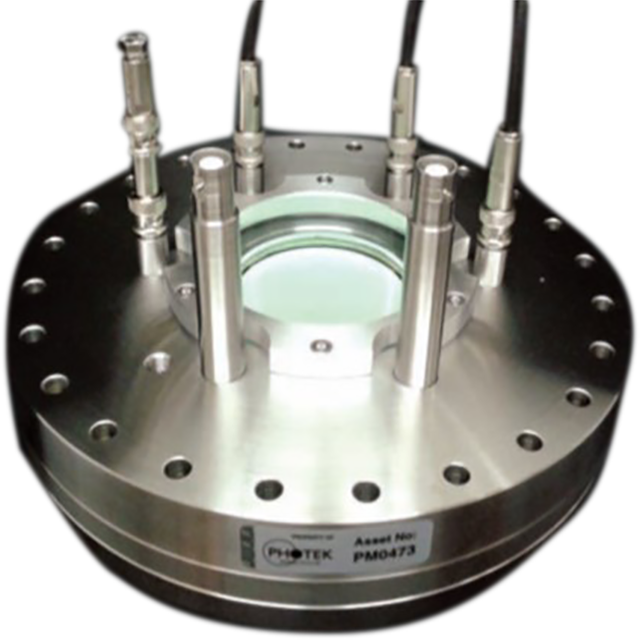

The Vacuum Imaging Detector (VID) is designed to detect charged particles, UV photons and neutrons. It is available with either a phosphor screen, solid anode or resistive sea which provides re-configurable anode options. The phosphor screen can also include a time of flight module which provides timing response to 5 ns. Typical applications include electron microscopy, nuclear physics research and VUV imaging.

PH-DS016 Vacuum Detector：

Features：

Custom CAD designed

High resolution

Optional MCP gating to 8 ns

18, 25, 40 and 75 mm active diameter

Choice of flange size

Phosphor screen or electrical output

Optional TOF module with phosphor screen. 5 ns FWHM

Resistive Sea with re-configurable anode options

Applications：

Electron microscopy

Field ion microscopy

Mass spectrometry

Measurement of chemical bond strength

Molecular disassociation

Nuclear physics

Space telescopes

Synchrotron Radiation

VUV imaging

PH-DS016 Vacuum Detector product line：

PHOTEK PART NO.	DESCRIPTION
18 mm Series
VID118	1 single 18 mm MCP on CF64 flange
VID218	2 single 18 mm MCPs on CF64 flange
VID318	3 single 18 mm MCPs on CF64 flange
VID218/NF	2 single 18 mm MCPs, screen, No flange
VID318/NF	3 single 18 mm MCPs, screen, No flange
25 mm Series
VID125	1 single 25 mm MCP on CF64 flange
VID225	2 single 25 mm MCPs on CF64 flange
VID325	3 single 25 mm MCPs on CF64 flange
VID125/NF	1 single 25 mm MCP, screen, No flange
VID225/NF	2 single 25 mm MCPs, screen, No flange
VID325/NF	3 single 25 mm MCPs, screen, No flange
40 mm Series
VID140	1 single 40 mm MCP on CF100 flange
VID240	2 single 40 mm MCPs on CF100 flange
VID340	3 single 40 mm MCPs on CF100 flange
VID140/NF	1 single 40 mm MCP, screen, No flange
VID240/NF	2 single 40 mm MCPs, screen, No flange
VID340/NF	3 single 40 mm MCPs, screen, No flange
75 mm Series
VID175	1 single 75 mm MCP on CF200 flange
VID275	2 single 75 mm MCPs on CF200 flange
VID375	3 single 75 mm MCPs on CF200 flange
VID175/NF	1 single 75 mm MCP, screen, No flange
VID275/NF	2 single 75 mm MCPs, screen, No flange
VID375/NF	3 single 75 mm MCPs, screen, No flange
