PRA-FC, PRA-FCA AND PRA-FSMA FIBER-ADAPTERS

FIBER-ADAPTERS PRA-FC, PRA-FCA AND PRA-FSMA-FEATURES

1. Compatible with all FEMTO photoreceivers with threaded 1.035"-40 free space input (FST-models)

2. Easy mounting option for standard optical fibers

3. Recommended for photosensitive areas of 0.4 mm diameter or more(coupling efficiency may be compromised for photodiodes with smaller diameter)

4. Machined from solid stainless steel

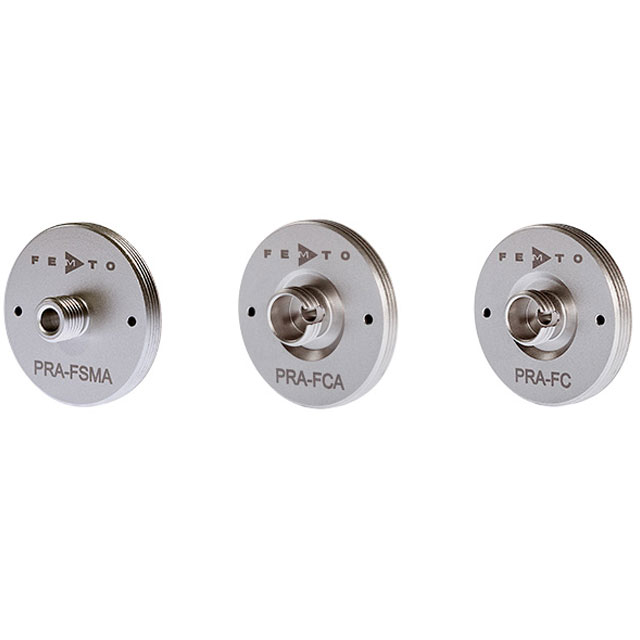

5. Available adapter types: PRA-FC (FC/PC, FC/UPC), PRA-FCA (FC/APC) and PRA-FSMA

6. Other types on request

With the photoreceiver accessory series FEMTO offers fiber connectors which allow connecting the most common types of optical fibers to photoreceivers with 1.035"- 40 externally threaded free space input without considerable optical losses. Adapters for optical cables with FC connectors (FC/PC, FC/APC, FC/UPC) and FSMA connectors are available.

The spanner wrench serves for fast mounting and unmounting of the FEMTO fiber-adapters PRA-FC, PRA-FCA und PRA-FSMA to the 1.035"-40 free space input (FST-models) of FEMTO photoreceivers.
