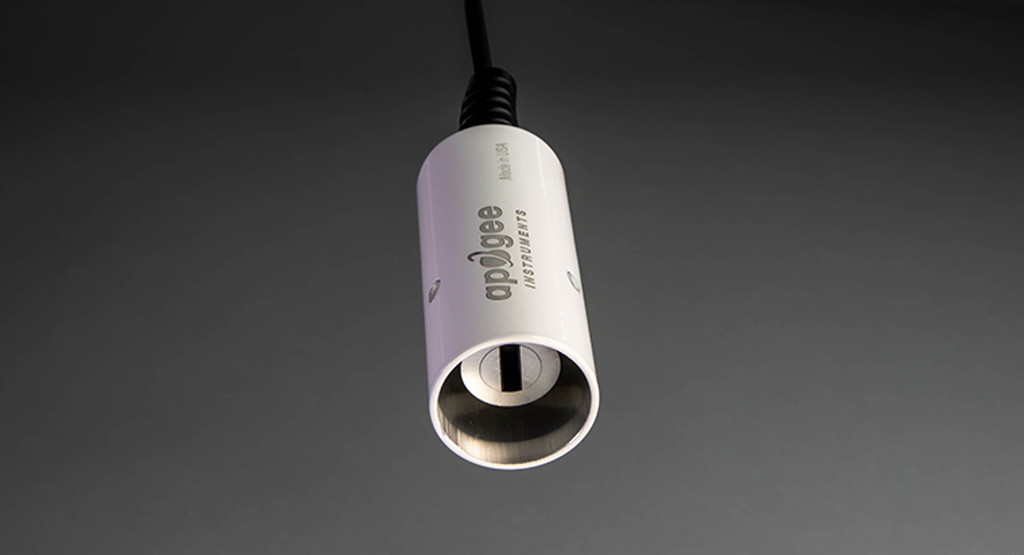

SI-4H1: Research-Grade SDI-12 Digital Output Horizontal Field of View Infrared Radiometer Sensor

Updated:2023-05-08

Brand: Apogee
Model: SI-4H1
Description: The SI-4H1 has an SDI-12 digital output and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The unique geometry of the sensor gives a wid
Data download

Feedback
WeChat

QQ

Online Service

Product Details

SI-4H1: Research-Grade SDI-12 Digital Output Horizontal Field of View Infrared Radiometer Sensor Functional Characteristic：

User's Manual Technical Drawing

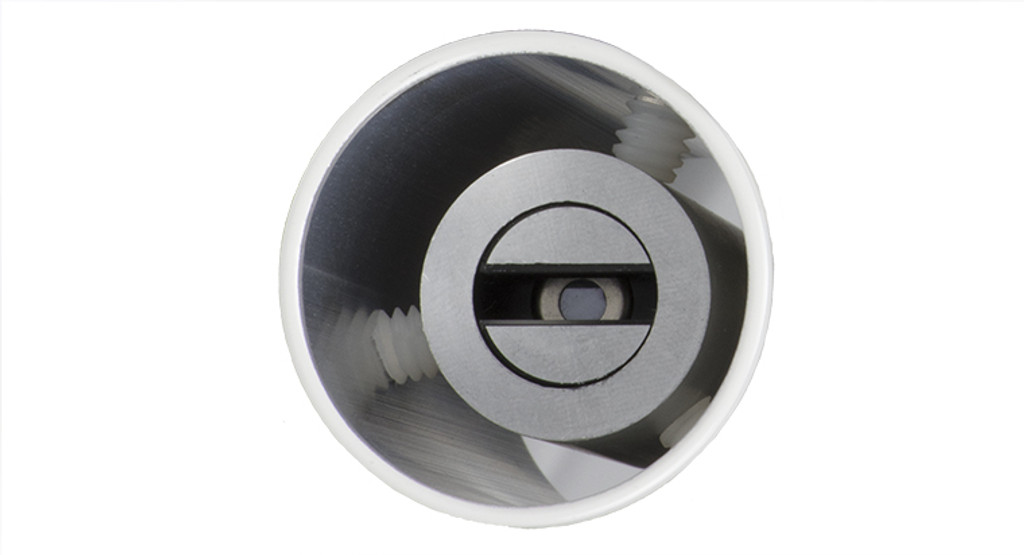

The SI-4H1 has an SDI-12 digital output and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The unique geometry of the sensor gives a wide 32° half-angle field of view in the horizontal direction with a 13° half-angle field of view in the vertical direction. This enables the user to mount the sensor at shallower angles without seeing above the horizon while maximizing the area measured. The sensor has a response time of 0.1 seconds. Typical applications include plant canopy temperature measurement for use in plant water status estimation, road surface temperature measurement of determination of icing conditions, and terrestrial surface (soil, vegetation, water, snow) temperature measurement in energy balance studies. Sensor includes IP68 marine-grade stainless-steel cable connector 30 cm from head to simplify sensor removal and replacement for maintenance and recalibration. The SI-4H1 is designed to be mounted with an Apogee AM-250 commercial-grade mounting bracket.

SI-4H1: Research-Grade SDI-12 Digital Output Horizontal Field of View Infrared Radiometer Sensor Drawing：

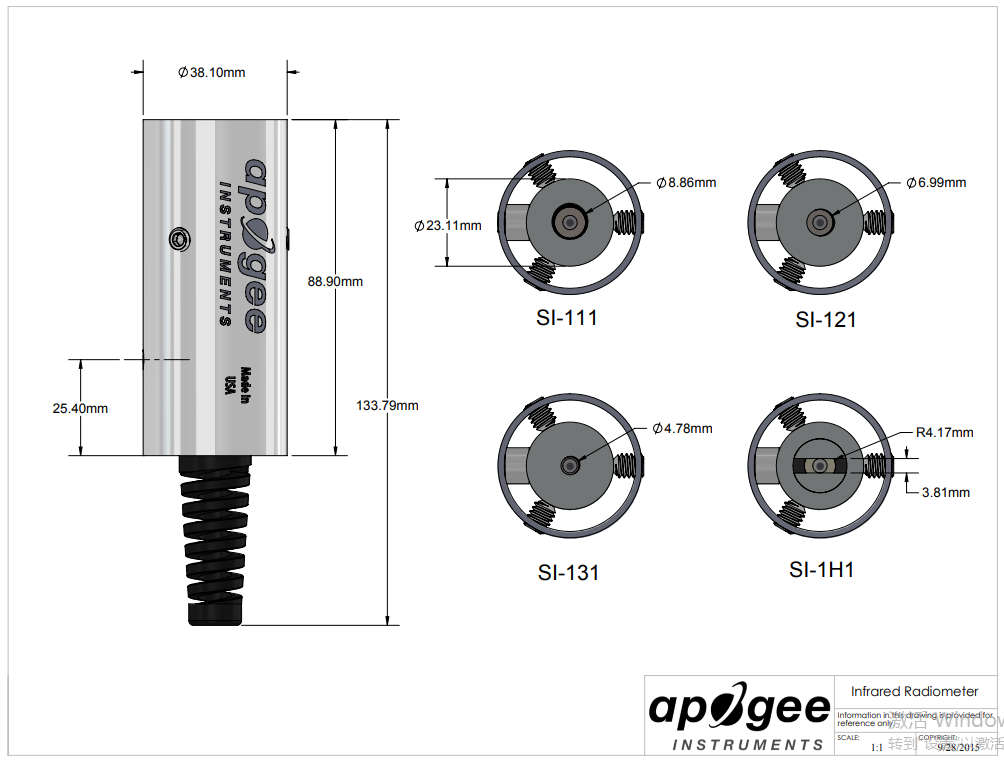

SI-4H1 Drawing

SI-4H1: Research-Grade SDI-12 Digital Output Horizontal Field of View Infrared Radiometer Sensor Specification：

Input Voltage Requirement	4.5 to 24 V DC
Current Draw	1.5 mA (quiescent), 2.0 mA (active)
Calibration Uncertainty (-30 to 65 C)	0.2 C, when target and detector temperature are within 20 C
Calibration Uncertainty (-40 to 80 C)	0.5 C, when target and detector temperature are different by more than 20 C
Measurement Repeatability	Less than 0.05 C
Stability (Long-term Drift)	Less than 2 % change in slope per year when germanium filter is maintained in a clean condition
Response Time	0.6 s, time for detector signal to reach 95 % following a step change, fastest data transmission rate for SDI-12 circuitry is 1 s
Field of View	32 ° horizontal half-angle; 13° vertical half-angle
Spectral Range)	8 to 14 µm; atmospheric windown
Operating Environment	-50 to 80 C; 0 to 100 % relative humidity (non-condensing)
Dimensions	23 mm diameter, 60 mm length
Mass	190 g (with 5 m of lead wire)
Cable	5 m of four conductor, shielded, twisted-pair wire with TPR jacket (high water resistance, high UV stability, flexibility in cold conditions), aditional cable available
Warranty	4 years against defects in materials and workmanship
Manufactured	Made in the USA
