SIF-1H1: Research-Grade High Speed, Horizontal Field of View Infrared Radiometer

Updated:2023-05-15

Views:1105

  • Brand: Apogee
  • Model: SIF-1H1
  • Description: The SIF-1H1 is a fast response model infrared radiometer with a 0.2 second response time. The analog sensor is un-amplified and has a voltage output and high-quality cable terminating in pre-tinned pi
  • Feedback
  • WeChat

    QQ

    Online Service

Product Details

SIF-1H1: Research-Grade High Speed, Horizontal Field of View Infrared Radiometer Functional Characteristic:

User's Manual Technical Drawing

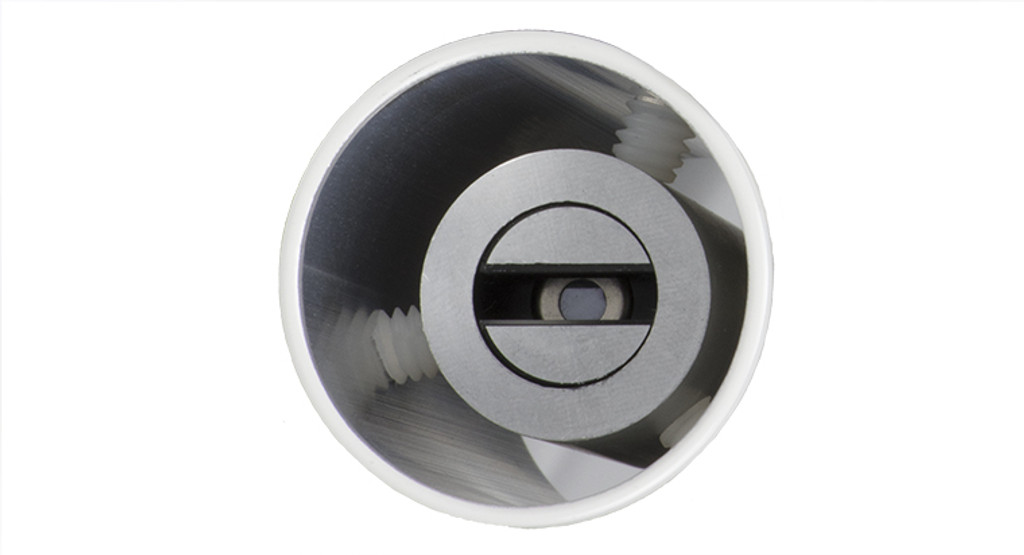

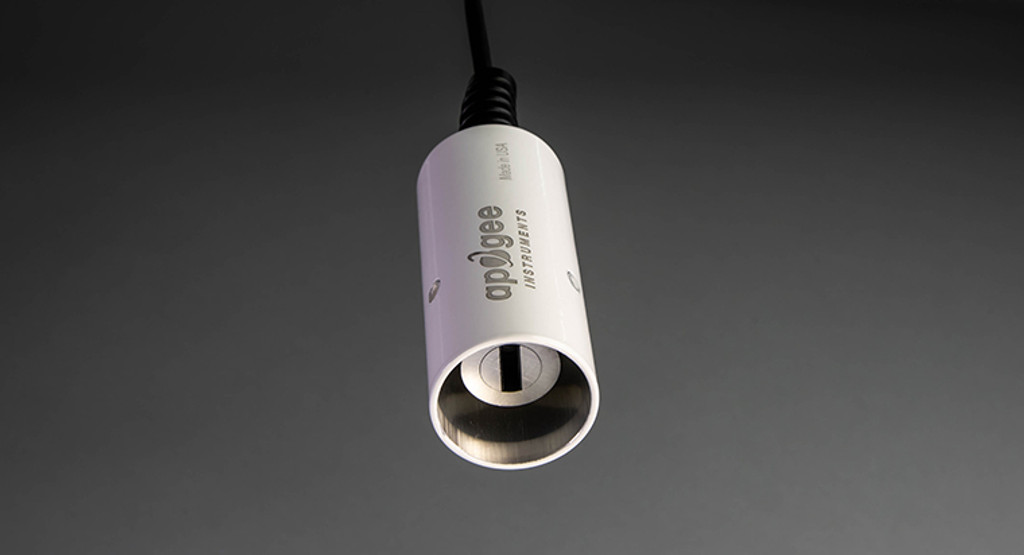

The SIF-1H1-SS is a fast response model infrared radiometer with a 0.2 second response time. The analog sensor is un-amplified and has a voltage output and high-quality cable terminating in pre-tinned pigtail leads for easy connection to dataloggers and controllers. The unique geometry of the sensor gives a wide 32° half-angle field of view in the horizontal direction with a 13° half-angle field of view in the vertical direction. This enables the user to mount the sensor at shallower angles without seeing above the horizon while maximizing the area measured. Typical applications include plant canopy temperature measurement for use in plant water status estimation, phenotyping, phenomics, road surface temperature measurement of determination of icing conditions, and terrestrial surface (soil, vegetation, water, snow) temperature measurement in energy balance studies. Sensor includes IP68 marine-grade stainless-steel cable connector 30 cm from head to simplify sensor removal and replacement for maintenance and recalibration. The SIF-1H1-SS is designed to be mounted with an Apogee AM-250 commercial-grade mounting bracket.



SIF-1H1: Research-Grade High Speed, Horizontal Field of View Infrared Radiometer Drawing:

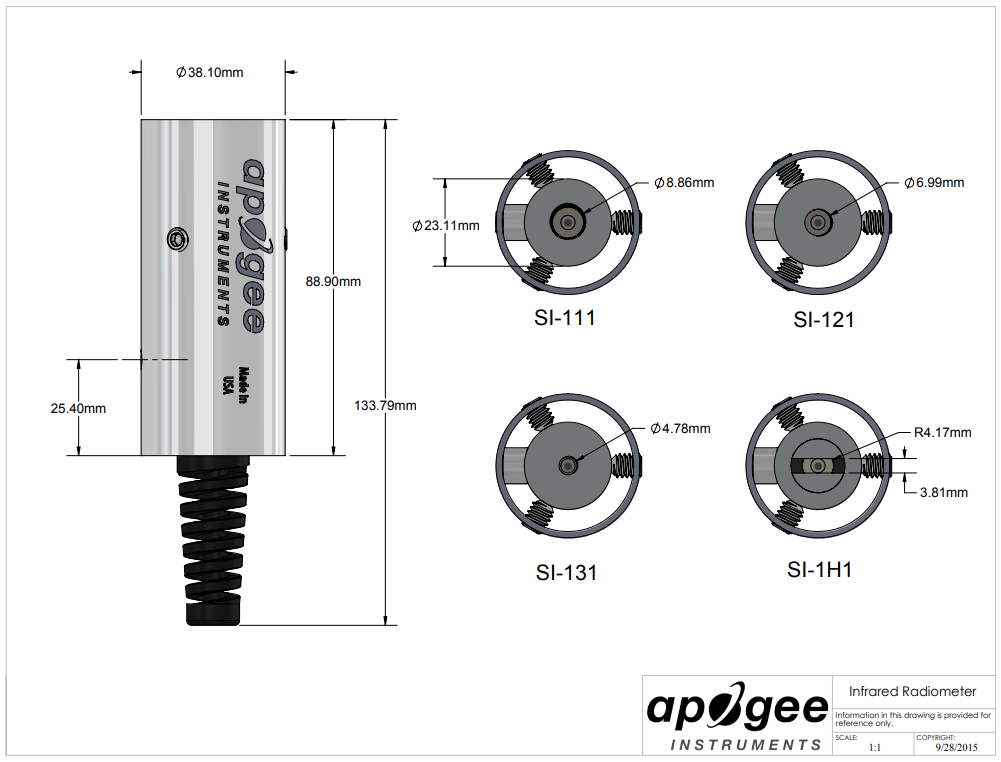

SIF-1H1 Drawing

SIF-1H1: Research-Grade High Speed, Horizontal Field of View Infrared Radiometer Specification:

Approximate Sensitivity 10 µV per C
Output from Thermopile Approximately -0.55 to 0.55 mV for a temperature difference from -55 to 55 C
Output from Thermistor 2500 mV excitation (typical, other voltages can be used)
Input Voltage Requirement 0 to 2500 mV (typical, depends on input voltage)
Calibration Uncertainty (-30 to 65 C) 0.2 C
Calibration Uncertainty (-40 to 80 C) 0.5 C
Measurement Repeatability Less than 0.05 C
Stability (Long-term Drift) Less than 2 % change in slope per year when germanium filter is maintained in clean condition%
Response Time 0.2 s, time for detector signal to reach 95 % following a step change
Field of View 32˚ horizontal half-angle; 13˚ vertical half-angle
Spectral Range 8 to 14 µm; atmospheric window
Operating Environment -50 to 80 C; 0 to 100 % relative humidity (non-condensing)
Dimensions 23 mm diameter, 60 mm length
Mass 190 g (with 5 m of lead wire)
Cable 5 m of shielded, twisted-pair wire with TPR jacket (high water resistance, high UV stability, flexibility in cold conditions), additional cable available
Warranty 4 years against defects in materials and workmanship
Manufactured Made in the USA
